To connect the electrical components of your ceiling fixture, start by ensuring that you have the correct tools and materials. You will need a voltage tester, screwdrivers, wire cutters, and electrical tape. Additionally, carefully read through the manufacturer’s manual for specific installation instructions that apply to your model.
The next step is to identify the key connections: power, light control, and fan speed. These are typically marked as live, neutral, and ground terminals. Make sure to connect the live wires to the designated power terminal, while the neutral wire should be connected to the neutral terminal. The ground wire ensures safety and should be connected to the designated ground point.
Once the power lines are connected, the fan speed and light functions require their own set of connections. A typical setup involves connecting the fan’s power lead to the speed control and ensuring that the light leads are properly connected for operation. Double-check all wiring to prevent potential faults, and ensure that the system is securely mounted.
For those unfamiliar with electrical work, be cautious when handling live wires, and always ensure the power is switched off before beginning the installation. If unsure, it’s advisable to consult a professional electrician to ensure the setup is safe and meets all local electrical standards.

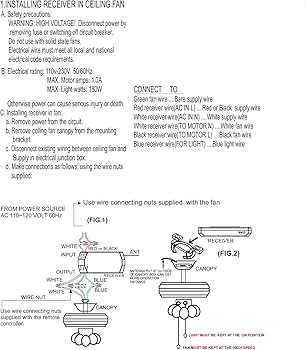

Wiring Guide for Hampton Bay Ceiling Fan
Begin by identifying the power lines in your electrical box. The hot (live) wire, typically black or red, provides current to the fixture, while the neutral wire, usually white, completes the circuit. The ground wire, typically green or copper, ensures safety by directing any excess current to the earth.
Next, carefully connect the hot wire to the designated power terminal on the fixture, ensuring a secure connection. Similarly, connect the neutral wire to the corresponding neutral terminal. The ground wire should be attached to the grounding screw on the fixture or the metal frame of the electrical box.
After connecting the power lines, pay attention to the separate connections for the light and motor components. The light fixture usually requires a separate wire for power, while the motor connection controls the fan’s speed. Ensure that each lead is connected to the correct terminal to avoid functionality issues.
Finally, secure all connections with electrical tape, ensuring that no exposed wire ends can cause a short circuit. Test the fixture to verify that both the motor and light operate correctly. If any issues arise, double-check the connections or seek professional assistance to ensure the installation is safe and correct.
How to Connect Power and Light to the Hampton Bay Ceiling Fan
To connect the power to the unit, start by ensuring the electrical supply is turned off at the breaker. Identify the hot wire (typically black or red) and connect it to the power terminal on the unit. Ensure the connection is firm and well-insulated to avoid any shorts.
Next, connect the neutral wire (usually white) to the neutral terminal. This completes the circuit for the motor. Tighten the screws to secure the connection and prevent any loosening over time, which could lead to malfunctioning.
For the light component, a separate wire is usually required. The wire from the light fixture must be connected to its dedicated terminal on the unit. Make sure to match the light’s power wire (often black) with the appropriate terminal to ensure correct operation of the light and fan.
Once all the connections are made, secure the ground wire to the grounding screw or metal frame. Test the power, light, and motor to verify everything works. If there are any issues, double-check all connections or consult an electrician to ensure safety and functionality.
