Connect the utility supply lines to the input lugs marked for grid power and attach the standby generator conductors to the dedicated backup terminals inside the ATS enclosure. Route the outgoing conductors from the load terminals directly to the main distribution panel. This configuration allows the standby power unit to feed the building circuits once grid power drops.
A typical residential installation uses two hot conductors, one neutral, and one grounding conductor. The incoming utility pair often lands on terminals labeled L1 and L2, while the backup generator pair connects to the generator input terminals. Neutral conductors usually terminate on a shared neutral bar, and grounding conductors attach to the equipment grounding bar bonded to the enclosure.
Control conductors from the standby generator controller board link to the ATS control module through a low-voltage cable, commonly 18-gauge multi-conductor wire. These leads carry start signals and status feedback between the generator controller and the ATS relay assembly. Maintain separation between low-voltage control lines and high-current power conductors inside the enclosure to reduce electrical interference and simplify troubleshooting.

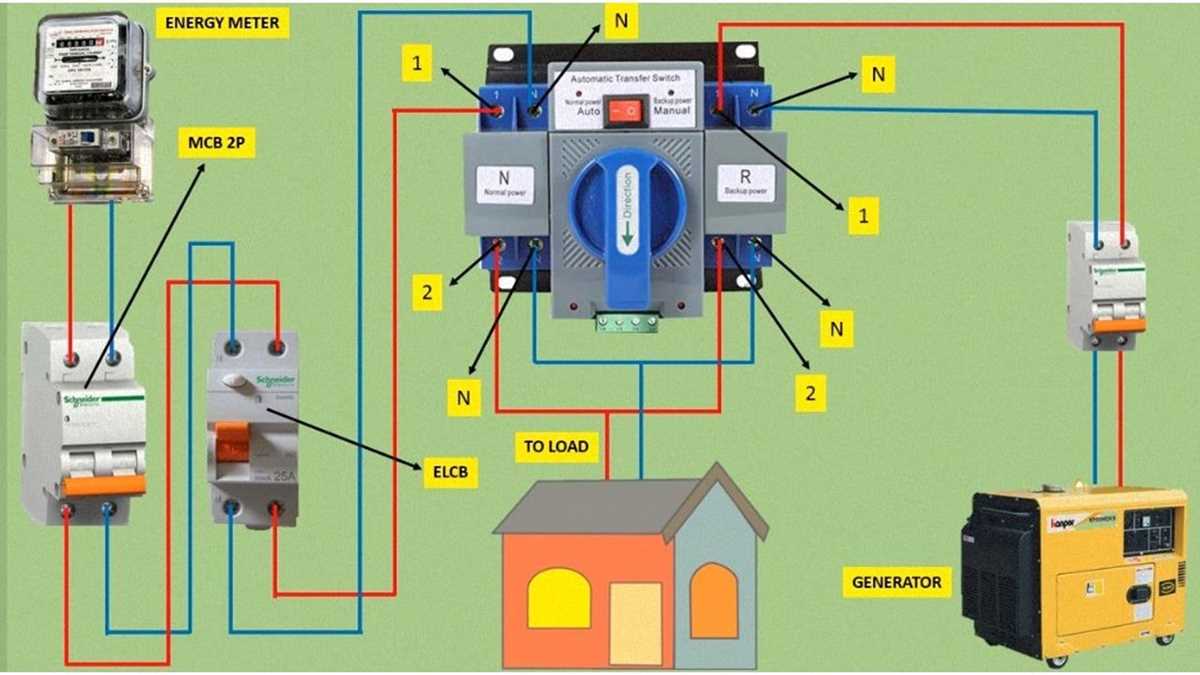

Generac Automatic Transfer Switch Wiring Diagram With Generator and Utility Connections
Connect utility power conductors to the terminals labeled utility input L1 and L2, then attach standby generator output conductors to the generator input lugs inside the ATS enclosure. The load terminals route power toward the main service panel. This arrangement allows the standby generator to supply the building circuits after grid loss.
Most residential standby systems use a 120/240-volt split phase configuration. Two hot conductors carry phase lines, while a neutral conductor returns current. The grounding conductor connects to the enclosure ground bar bonded to the metal cabinet.
Utility power lines typically enter through the top conduit opening and terminate on the line input terminals. Backup generator conductors arrive through a separate conduit path. Load conductors leave the enclosure and connect to the building distribution panel, feeding branch breakers and household circuits.
Neutral conductors from utility service, generator output, and the load side usually terminate on a shared neutral bar. The neutral bar remains isolated from the enclosure in many ATS models unless bonding occurs at the main service equipment.
Control communication between the standby generator controller and the ATS control board travels through a multi-conductor low-voltage cable. These conductors carry signals that trigger engine startup once grid voltage drops below a preset threshold.
Typical conductor sizes depend on generator output rating. Units rated around 8–11 kW often use 6 AWG copper conductors for phase lines, while larger systems rated above 20 kW may require 2 AWG or 1/0 AWG depending on installation distance and electrical code limits.
Route high-current conductors along one side of the enclosure and keep low-voltage control leads separated. Secure cables with clamps and maintain clear labeling on terminals for line input, generator supply, load output, neutral bar, and equipment ground bar to simplify inspection and servicing.

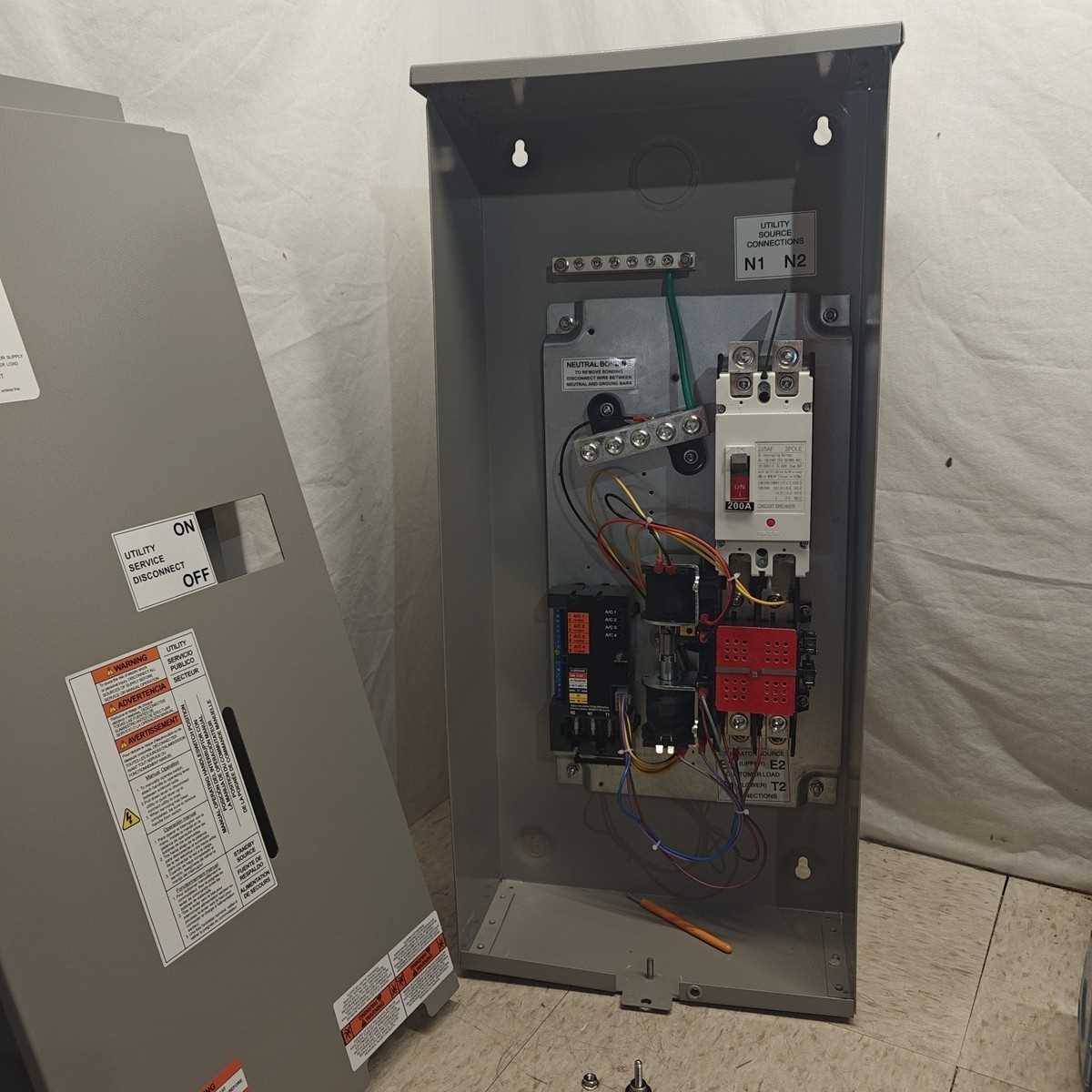

Generac Automatic Transfer Switch Terminal Layout for Utility Line Generator Input and Load Output
Connect incoming utility conductors to the terminals marked Line L1 and Line L2, attach standby generator output leads to the generator input lugs, and route building load conductors to the load terminals. This terminal arrangement allows the power control unit to shift supply between the utility grid and the backup generator.
The enclosure typically contains three main terminal groups positioned in separate rows. Each group handles a different power source or destination.
Terminal Groups Inside the Enclosure
- Utility input terminals receiving power from the grid
- Generator input terminals connected to the standby power unit
- Load output terminals feeding the main electrical panel
Utility supply conductors normally enter through the upper conduit opening and connect to the top terminal block. Generator conductors arrive through a separate conduit path to prevent congestion and simplify identification during servicing.
Load conductors connect to the terminals leading toward the building distribution panel. These lines deliver electricity to branch circuits such as lighting, HVAC equipment, refrigerators, and other household loads once the ATS selects the active source.
Neutral and Ground Bus Arrangement
- Neutral conductors from utility service, generator output, and load circuits attach to the neutral bar
- Equipment grounding conductors connect to the ground bar bonded to the metal cabinet
- The neutral bar may remain isolated depending on service configuration
Many residential systems use a 120/240-volt split-phase supply. Two hot conductors carry the phase lines, while the neutral conductor completes the return path. Correct placement on the neutral bus maintains balanced current flow across both phases.
Use conductor sizes based on generator capacity. Smaller standby units around 8–10 kW may use 6 AWG copper phase conductors, while larger systems exceeding 20 kW may require 2 AWG or 1/0 AWG depending on electrical code and cable length.
Keep phase conductors routed along one side of the enclosure and low-voltage control leads along the opposite side. Label each terminal clearly to identify grid input, backup generator feed, load output, neutral bar, and equipment grounding point.
