To properly connect your heating system, it’s important to understand how the different components interact. Start by identifying the correct terminals on your control device. The primary connections usually involve the power supply, heating relay, and fan system, which must be matched correctly to avoid any malfunction.
Pay close attention to color coding and wire labels. Typically, red is used for the power supply, white controls the heating element, and green is for the fan system. Double-check the manufacturer’s instructions and ensure all connections are secure to prevent any short circuits or inefficiencies in operation.
If you’re working with a new installation or replacing old components, verify that the connections align with the control panel’s configuration. Incorrect setup can lead to system failure or unnecessary wear on the system. By following the correct steps and ensuring proper contact between the wires and terminals, you ensure smooth operation and longevity of your heating unit.

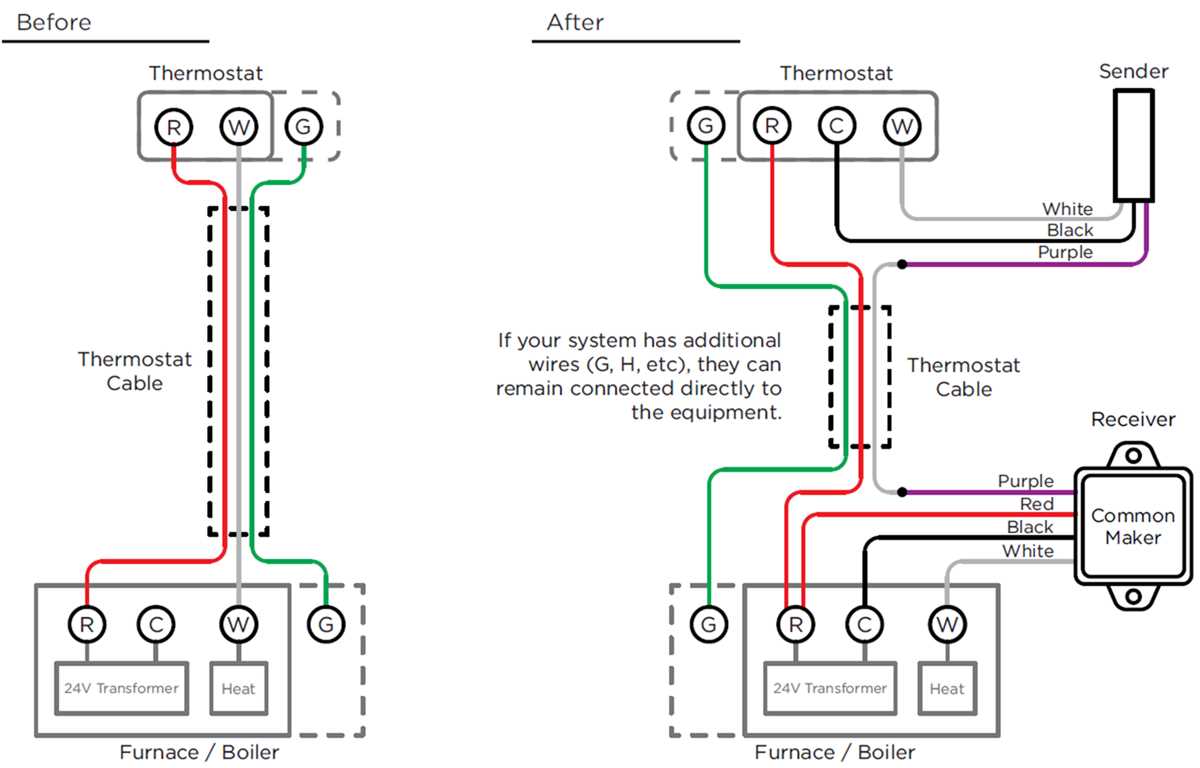

Wiring Diagram for Furnace Thermostat
To ensure that your heating system functions correctly, it’s critical to connect each component accurately. The power supply wire (usually red) should go to the terminal marked as “R” or “RC”. This is the power source for the entire system. Check the power specifications to match the wire correctly to avoid any damage to the components.
The next key connection is to the heating element, typically linked to the “W” terminal. This wire is responsible for turning the heater on when the desired temperature is reached. Pay attention to the label and wire color (commonly white) to ensure proper connection. Incorrect wiring may prevent the heating element from engaging or cause system errors.
The third critical connection is the fan system, often indicated by the letter “G” or “GF”. The green wire is usually used here. This connection controls the fan to circulate warm air throughout the space once the heating process is initiated. Double-check the terminal for compatibility with your specific unit’s setup.
If your unit supports cooling, the “Y” terminal is typically used for the cooling system. This wire often connects to the compressor or air conditioning system to control the cooling function. It’s important to make sure that the wire is connected to the correct terminal to avoid malfunctioning between the heating and cooling systems.
For the common connection, look for the “C” terminal. This wire provides a return path for power from the thermostat. The color coding for this wire is typically blue or black, and it should be securely attached to the “C” terminal to allow proper feedback to the system and ensure accurate readings.
Before completing the setup, ensure all wires are tightly secured to the corresponding terminals. Loose connections can result in intermittent failures or inefficient performance. After verifying all wiring connections, test the system by adjusting the temperature and observing whether each function operates as expected.
Finally, always consult your system’s manual for specific wiring instructions. While the above steps apply to most models, some systems may have slight variations. Refer to the manufacturer’s guidelines to ensure proper installation and avoid damaging any components during setup.

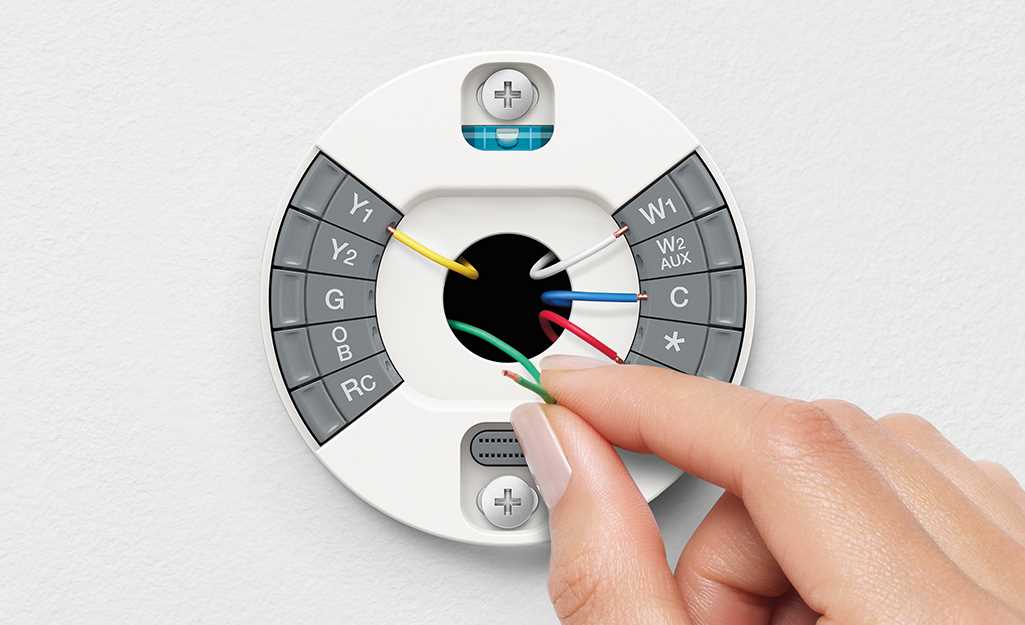

How to Identify the Terminals on Your Thermostat
Begin by locating the terminal labels on your unit. The most common labels you’ll find are “R”, “C”, “W”, “Y”, and “G”. “R” and “C” are typically for the power supply and the common wire. The “R” terminal is where the power wire connects, while “C” is the return path. Double-check the color coding, usually red for “R” and blue or black for “C”.
The “W” terminal is usually connected to the heating system and is often white. The “Y” terminal controls the cooling function, typically connected to the air conditioning system, with the wire often colored yellow. The “G” terminal is responsible for the fan and is usually linked to the green wire. Ensuring that each wire matches the label helps maintain system functionality.
