To properly install a fan and lighting unit together, it is critical to understand how the electrical connections should be made. Start by ensuring that the power is turned off at the breaker before beginning any work. This is a necessary safety measure to avoid any risk of shock.
Next, check if your setup involves a single switch or separate switches for the fan and light. For a shared switch, a specific method of connecting both circuits is required to ensure both functions can be controlled independently. The fan’s wiring should typically be connected to a different circuit from the light if you want to control them separately.
Pay close attention to the color coding of the wires: black or red wires are usually for the power, white wires for neutral, and green or bare copper for ground. If you’re unsure, always refer to the manufacturer’s guide, as colors might differ in some systems. When in doubt, consulting with a licensed electrician is a wise decision to avoid costly mistakes or safety issues later on.

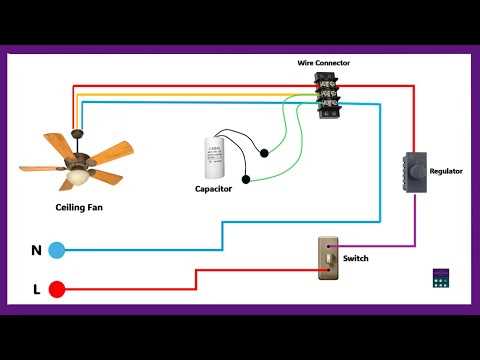

Wiring Diagram for Ceiling Fan Light
Before starting, make sure you have the proper tools: wire cutters, wire strippers, a voltage tester, and a screwdriver. Also, ensure your power is off at the circuit breaker to avoid electrical shock.
If you’re working with a single switch, it is crucial to wire both the fan and the bulb correctly to work off the same switch. This involves connecting the fan’s power wire to one terminal and the light’s power wire to another. Typically, the neutral wire connects both components together. Follow this carefully to avoid malfunctions.

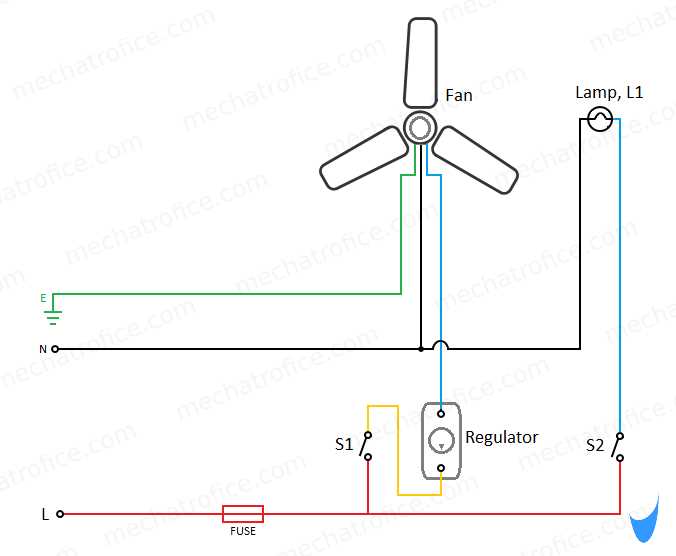

If separate switches are involved, you must connect each component to its dedicated switch. The fan’s circuit is usually wired to a switch that controls the fan speed, while the lighting is wired to a standard switch for on/off functionality. This allows for independent control of each element in the unit.
- Red wire: Fan power connection.
- Black wire: Light power connection.
- White wire: Neutral wire for both components.
- Green or bare wire: Ground connection.
Once connected, secure the wiring inside the junction box and mount the fixture properly to the ceiling. After confirming all connections are tight and safe, turn the power back on and test the switches to ensure both components function correctly. If there’s any issue, double-check the connections and consult an electrician if needed.
Understanding the Components for Ceiling Fan Light Wiring
Start by identifying the primary parts of your fixture. The key components include the power supply wire, the neutral wire, and the ground wire. Each plays a specific role in ensuring both safety and functionality during installation.
The power supply wire, typically red or black, carries electricity to your device. For the fan and bulb, separate power lines may be used, so it’s important to confirm which wire controls which component. If you’re working with one power line, both the fan and the light share the same connection, but this can limit your control.
Neutral and Ground Wires
The neutral wire, usually white, completes the circuit by providing a return path for electricity. This wire ensures that electrical current flows properly through both the fan and the light. The ground wire, which is either green or bare, ensures safety by directing any stray electrical current safely to the ground. Never skip the grounding step, as it’s vital for preventing shocks.
In addition to the standard wires, most ceiling fixtures will include a mounting bracket or canopy that houses the electrical connections. This bracket holds the fixture securely in place, ensuring the components remain properly aligned during use. Securely attach the bracket to the ceiling box before connecting any wires to avoid issues later.
Switches and Control
The switches involved in controlling the fan and bulb can either be combined into one or separated for individual control. If using one switch, it’s crucial to wire both the fan and the light to the same terminal. However, separate switches are often recommended for more flexibility in controlling each component individually.
When dealing with a shared switch, it’s necessary to ensure that both components are connected to the same circuit, which may require additional wiring. The switch should be rated to handle the combined load of both the fan and the light to avoid overloading the circuit.
Finally, the fixture itself may come with additional components, such as a remote control receiver, capacitor, or pull chain, depending on the model. These should be integrated carefully with the primary electrical setup, following the manufacturer’s instructions to prevent electrical malfunctions or damage.
