Install a manual changeover unit between the main distribution board and the backup power source to isolate utility lines during outages. This device redirects electricity from the portable engine-driven power unit into selected household circuits while blocking reverse flow into public utility conductors. Isolation prevents dangerous backfeed that can harm line technicians and damage electrical equipment.
Route two hot conductors and one neutral line from the backup power inlet to the changeover enclosure using copper cable rated for the system load. Many residential setups use 240-volt input with two 120-volt legs delivering power across the panel bus bars. Ground conductors must connect directly to the grounding bar inside the service panel, maintaining the same grounding system used by the utility supply.
Select conductor size based on the output rating of the engine-driven unit. A 30-amp source typically uses 10-gauge copper conductors, while a 50-amp setup requires 6-gauge lines. Secure cables through strain-relief fittings and route them inside conduit to reduce mechanical damage. Keep conductor paths separated from high-heat sources and moving components.
Test circuit continuity and voltage levels before connecting household loads. Activate the changeover lever, start the backup power unit, and measure voltage across both hot legs at the distribution board. Values near 120 volts per leg and 240 volts across both confirm proper connection and balanced supply to household circuits.

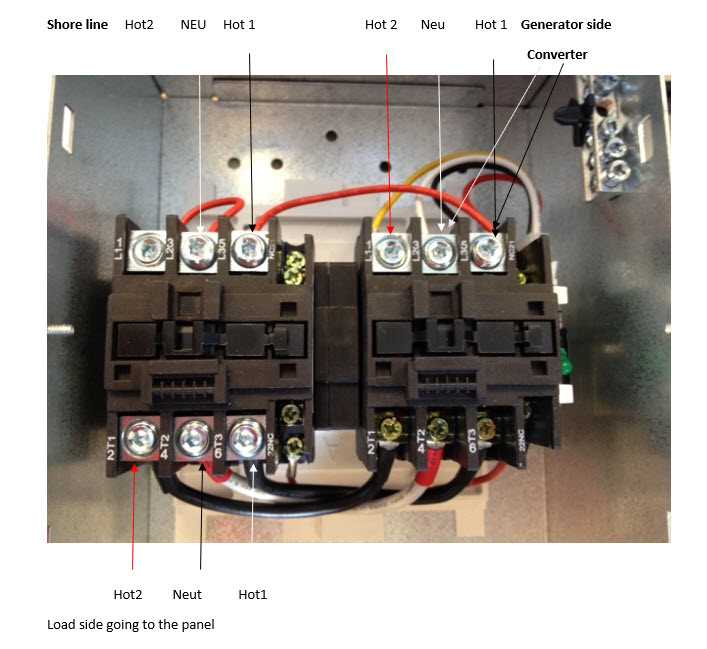

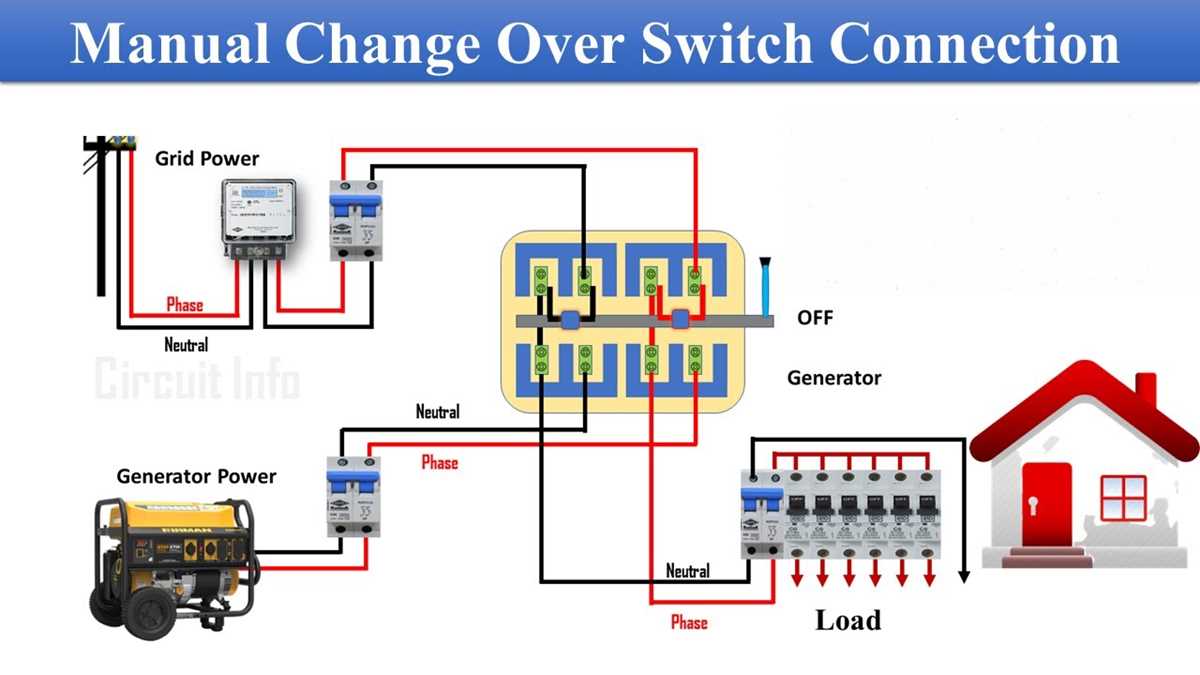

Wiring Diagram for a Generator Transfer Switch with Panel Connections and Circuit Layout
Connect the backup power inlet box to the changeover unit using four conductors: two hot lines, one neutral, and one ground. In most residential setups using 240-volt split-phase supply, the hot conductors carry two 120-volt legs that feed opposite sides of the distribution board bus bars. Use copper conductors sized to the current rating; 10 AWG supports 30 amps while 6 AWG handles 50 amps.
Mount the changeover enclosure close to the main distribution board to keep conductor runs short. Route the hot lines from the inlet receptacle into the enclosure, then continue toward selected circuit breakers inside the panel. Neutral conductors connect to the neutral bar, while the grounding conductor links directly to the grounding bar tied to the household grounding electrode system.
Connection Layout Inside the Panel
Attach the two incoming hot conductors to the dedicated breaker that feeds the backup input path. This breaker protects the cable path and limits current flow during overload conditions. The changeover mechanism alternates the feed source between the utility service and the engine-driven power unit while keeping both supplies isolated.
Inside the panel, selected household circuits connect through the changeover device. Refrigerators, sump pumps, lighting circuits, and heating controls often receive priority. Avoid linking heavy loads such as central air conditioning compressors unless the backup power source supports the required starting current.
Grounding and Safety Layout
Bond the metal enclosure of the changeover unit to the household grounding system using a copper grounding conductor. This path carries fault current safely to earth if insulation failure occurs. Ground continuity must remain intact along the entire path from inlet box to service panel.
Test the installation by shutting down the main service breaker, activating the changeover lever, and measuring voltage across both hot legs at the panel. Readings near 120 volts per leg and about 240 volts across both confirm proper conductor routing and balanced distribution to connected circuits.
Generator Transfer Switch Wiring Diagram for Connecting Backup Power to a Main Electrical Panel
Install a changeover unit between the utility service panel and the standby power source so that only one supply feeds the household circuits at a time. Run four conductors from the inlet box of the engine-driven power unit to the changeover enclosure: two hot lines, one neutral, and one grounding conductor. Inside the distribution board, the two hot conductors connect to a dedicated double-pole breaker that routes power through the changeover device before reaching selected household circuits.
Typical residential installations rely on split-phase 240-volt input. Each hot conductor delivers about 120 volts relative to neutral and feeds opposite bus bars inside the distribution board. Select conductor gauge based on current rating: 10 AWG copper handles 30 amps while 6 AWG supports 50 amps. Connect neutral conductors to the neutral bar inside the panel and attach the grounding conductor to the grounding bar bonded to the building grounding electrode system.
After completing all connections, confirm operation through a short test routine.
- Shut off the main service breaker supplying utility power
- Move the changeover handle to the standby power position
- Start the engine-driven unit and allow voltage to stabilize
- Measure voltage at the panel bus bars and selected branch breakers
- Confirm about 120 volts per leg and about 240 volts across both hot conductors
