Check the terminal strip on the LiftMaster group drive unit before attaching any cable. Each contact on the control board handles a specific circuit such as power supply, wall switch input, photo-eye sensors, or motor control. Matching each conductor with the correct terminal label prevents motor lockout, blinking sensor lights, and non-responsive wall buttons.
Most ceiling-mounted lift systems use low-voltage lines running from the indoor control button and infrared safety sensors to the main operator mounted above the vehicle entrance. These lines usually connect to two or three screw terminals marked with color codes. White commonly represents the shared return line, while red or striped conductors carry control signals.
Sensor alignment and cable placement directly affect operation. The infrared pair installed near floor level must connect to the proper terminals on the motor head unit. Crossing the signal leads or mixing them with the wall control cable may cause constant indicator blinking or prevent the moving panel from closing.
Accurate reading of the connection layout also helps during troubleshooting. If the drive motor runs but the entry panel stops halfway, inspect the sensor circuit and terminal contacts first. Loose screws, broken insulation, or swapped conductors often interrupt the safety circuit and force the system to halt movement.

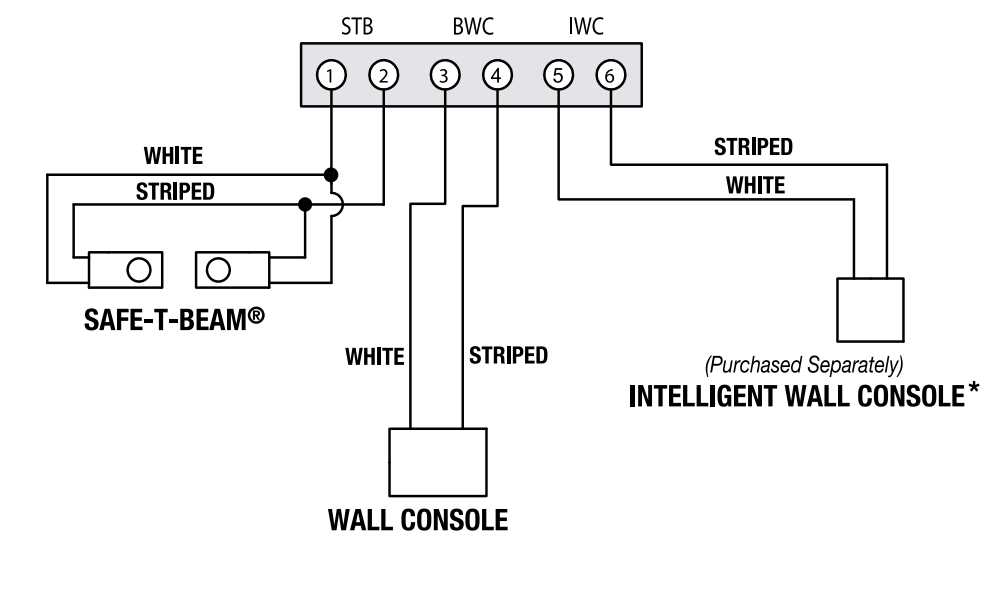

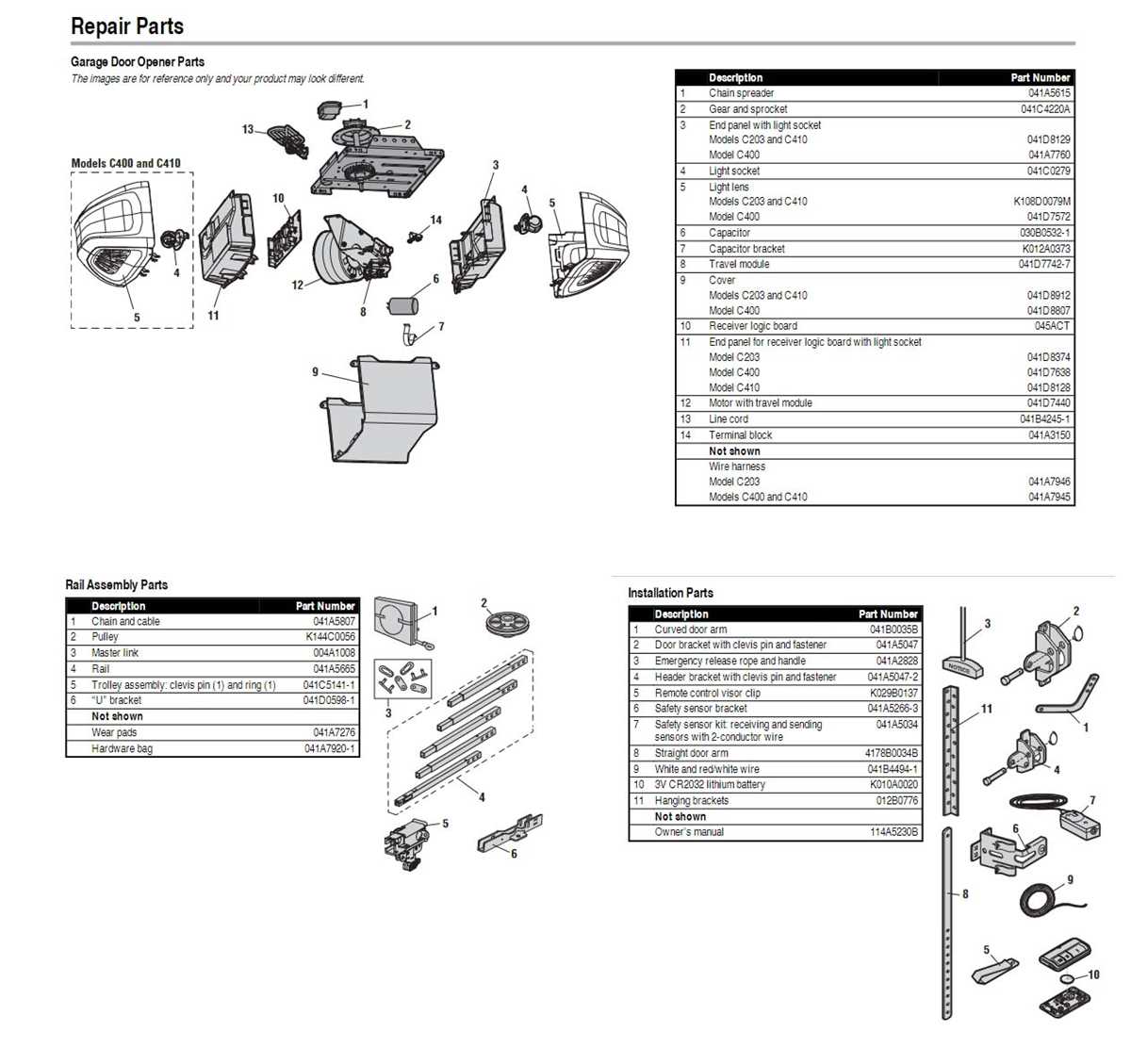

Chamberlain Garage Door Opener Wiring Diagram with Sensor and Wall Control Connections
Locate the low-voltage terminal block on the LiftMaster group motor unit before attaching any conductors. Most ceiling mounted drive systems from this brand use two or three screw terminals that handle the wall switch circuit and the infrared safety pair. Each terminal is marked with color indicators that correspond to the insulation on the supplied cable.
Wall control units normally connect through a two-conductor cable running from the interior push button to the motor head. The common return line usually uses white insulation, while the command signal travels through a red or red-striped conductor. Tighten the terminal screws until the copper core cannot move under light pulling.
The safety photo-eye pair installed near floor level uses a separate low-voltage line. These sensors monitor the path of the moving panel. If the infrared beam breaks, the drive unit stops closing movement and reverses the track carriage.
Typical terminal allocation on the control board places the shared return line on the first screw contact. The second terminal receives the control button lead. The third position often handles the safety sensor circuit. Some models combine the control button and sensor lines through the same common return conductor.
Sensor cable routing
Run the photo-eye cable along the side wall or ceiling joist and secure it with insulated clips every 30–40 cm. Avoid routing near mains supply lines powering lighting fixtures or heavy equipment. Electrical noise may interfere with the optical receiver module.
Each sensor module contains two conductors. One line carries supply voltage from the motor unit control board. The second line returns the signal produced by the receiver. Crossing these lines or reversing polarity may cause a blinking indicator LED on the motor housing.
Connection check after installation
Test the push button first. Pressing the interior control should activate the motor and move the sectional panel along the rail track. If no response occurs, inspect the two conductors connected to the wall switch terminals.
Finish the verification by blocking the infrared beam while the panel closes. The system must stop movement and reverse direction immediately. If the motor continues closing, inspect the sensor cable contacts and terminal positions on the control board.

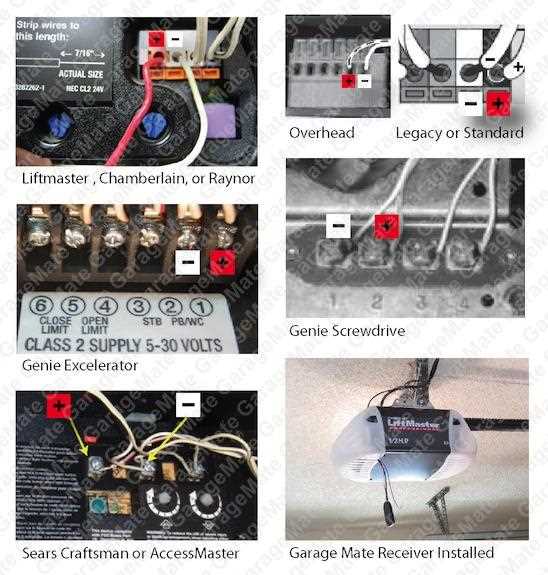

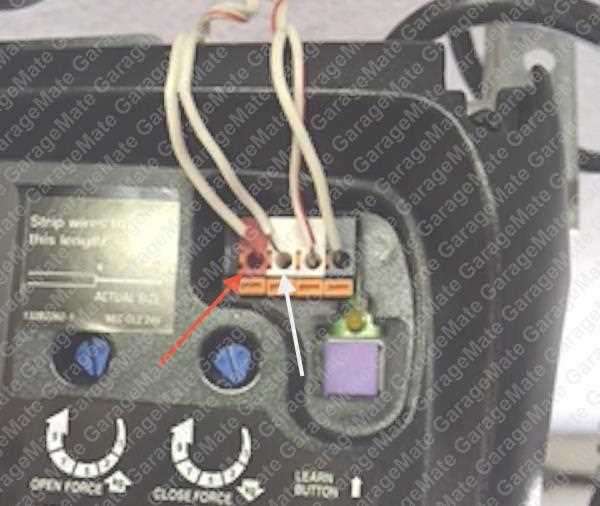

Terminal layout on the Chamberlain opener control board and wire identification
Locate the screw terminal strip on the motor head unit and confirm the numbering printed beside each contact. Most LiftMaster group drive systems place the low-voltage connections along the rear edge of the control board. Each terminal accepts a single conductor or paired cable leading to the wall button or the infrared sensor modules.
The contact row normally contains two or three positions that handle control signals and safety inputs. Installers must match conductor color with the label next to each screw connector.
- Terminal 1 – common return line, usually white insulation
- Terminal 2 – wall push button signal, commonly red or red with white stripe
- Terminal 3 – photo-eye safety pair connection
Sensor modules near the floor typically use two thin conductors running back to the motor housing. These lines may appear as white with black stripe and white with solid color marking. Both connect to the same terminal pair used by the safety circuit on the control board.
Follow a clear identification method while installing cables:
- Strip insulation about 6–8 mm from the copper core
- Insert the conductor fully beneath the terminal clamp
- Tighten the screw until the cable cannot slide out
- Pull lightly to confirm the connection holds
Incorrect placement of the sensor pair or the wall switch line often causes blinking status lights on the motor housing and prevents the moving panel from closing. Matching each conductor with its labeled terminal avoids this fault.
