To connect your vehicle and trailer effectively, it’s important to understand how to correctly set up the electrical connections. The four pins on the connector serve different purposes, and knowing what each pin does will help ensure everything works properly. Typically, the four pins include connections for ground, left turn signal, right turn signal, and running lights. These must be matched correctly for safety and performance.
Start by identifying each pin on the connector. The ground pin is typically the largest and ensures a stable electrical connection between the two vehicles. The left and right turn signal pins must be correctly connected to the vehicle’s respective signals to allow proper lighting during turns. Finally, the running light pin powers the tail lights on the trailer. Miswiring these connections could cause malfunction or safety issues on the road.
Once the pins are identified, use the correct gauge of wire for each connection. This ensures a secure connection and prevents overheating, which can lead to short circuits. Additionally, when performing the setup, check the continuity of the connections before completing the setup to ensure there are no wiring faults that could cause the system to fail.
Understanding the Correct Connections for a 4 Pin Connector
For the proper setup of a 4-pin connector, you must ensure that each of the four individual connections is matched to the corresponding components of the vehicle and the towed unit. The first pin is typically assigned to ground, which connects to the chassis of the vehicle to complete the circuit. This pin ensures a stable electrical connection and is crucial for the safety of the electrical system.
The second pin is for the left turn signal. This should be connected to the vehicle’s left turn signal light. When activated, this connection powers the left side indicators of the towed unit. Similarly, the third pin is assigned to the right turn signal, which connects to the vehicle’s right turn light and provides power to the right side indicator on the towed unit.
The fourth pin is dedicated to the running lights. This connection is responsible for supplying the tail lights of the towed unit with power when the vehicle’s headlights are turned on. Correctly wiring this pin ensures that the towed unit’s tail lights illuminate during normal driving conditions.
Choosing the Correct Wire Gauge and Placement
When selecting the wire gauge, ensure it matches the power requirements of the components being connected. For most setups, a 14-16 gauge wire is sufficient for connecting the lights and signals. However, it’s important to use thicker wires for connections that carry more current, such as those for the running lights. Proper wire placement within the connector is also key to ensuring secure, long-lasting connections. If any wires are loose or exposed, it could lead to short-circuiting or failure of the electrical system.
Always make sure that the wires are securely insulated to prevent any accidental shorts. Proper insulation and heat-shrink tubing around each connection point can help reduce wear over time and protect the system from external damage. If the wire connections are exposed to moisture or harsh conditions, consider using corrosion-resistant connectors to improve durability.
Testing the Connections
Once all the connections are made, it’s important to test the electrical system before using the setup on the road. Turn on the vehicle and check that each of the four connections is working as intended. Use a multimeter to confirm that each pin provides the correct voltage when the corresponding function is activated. Testing ensures that all lights function properly, and it can help identify any wiring issues before they cause a problem on the road.
How to Identify the Four Pins on a 4 Pin Connector
The first step in identifying the four pins is to locate the main metal contacts inside the connector. These contacts are typically arranged in a rectangular or circular pattern. Begin by identifying the ground pin, which is generally the largest one. This pin is usually positioned at the bottom or at one of the corners of the connector.

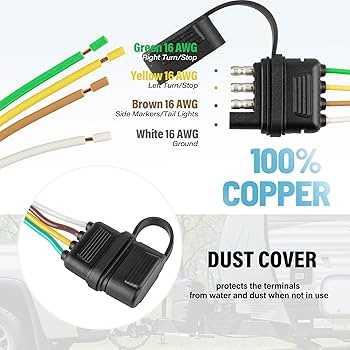

Next, locate the pin dedicated to the left turn signal. This pin is often placed next to the ground pin and is usually connected to a yellow wire. It will be activated when the left turn indicator is turned on. Similarly, find the pin for the right turn signal, which is connected to a green wire and positioned in a similar location as the left turn signal pin.
- Ground Pin: Typically the largest pin, positioned at the bottom or corner of the connector.
- Left Turn Signal Pin: Often located next to the ground pin and linked with a yellow wire.
- Right Turn Signal Pin: Placed near the left turn signal pin and connected to a green wire.
The last pin is used for the running lights, usually tied to a brown wire. This pin is placed in a position that makes it easily identifiable, often opposite the turn signal pins. The running lights will be powered when the vehicle’s headlights are activated, illuminating the tail lights on the attached unit.
Once all the pins are identified, it’s important to ensure each wire is securely connected to its corresponding pin. A loose or improperly connected wire can cause issues with signal or lighting functionality. If unsure, use a multimeter to check the connectivity and function of each pin before using the setup in real conditions.
In summary, the four pins are assigned specific functions: ground, left turn signal, right turn signal, and running lights. Identifying these pins accurately ensures the electrical connections are set up correctly, preventing any possible malfunctions or safety hazards while towing.
