To ensure your vehicle and towing equipment are properly connected, understanding the exact method for linking the electrical system is crucial. Each connector has a specific purpose, and incorrect connections could lead to malfunction or even cause electrical damage. In this guide, you will learn how to connect the two components correctly, including which cables to use and where to connect them on both ends.
The first step in setting up a 7-way connector system is identifying the right color codes for each terminal. Each wire corresponds to a specific function such as braking, reverse light, or ground connection. Knowing this ensures that you won’t end up with unexpected results like brake lights staying on or an inability to engage reverse lights.
Understanding each connection point and how to properly wire them is key to both functionality and safety. If any wires are installed incorrectly, there could be issues with the lights, braking system, or even cause a short circuit. Once you confirm the correct wiring, it is important to secure all connectors and check for any potential loose connections that might arise after the setup.

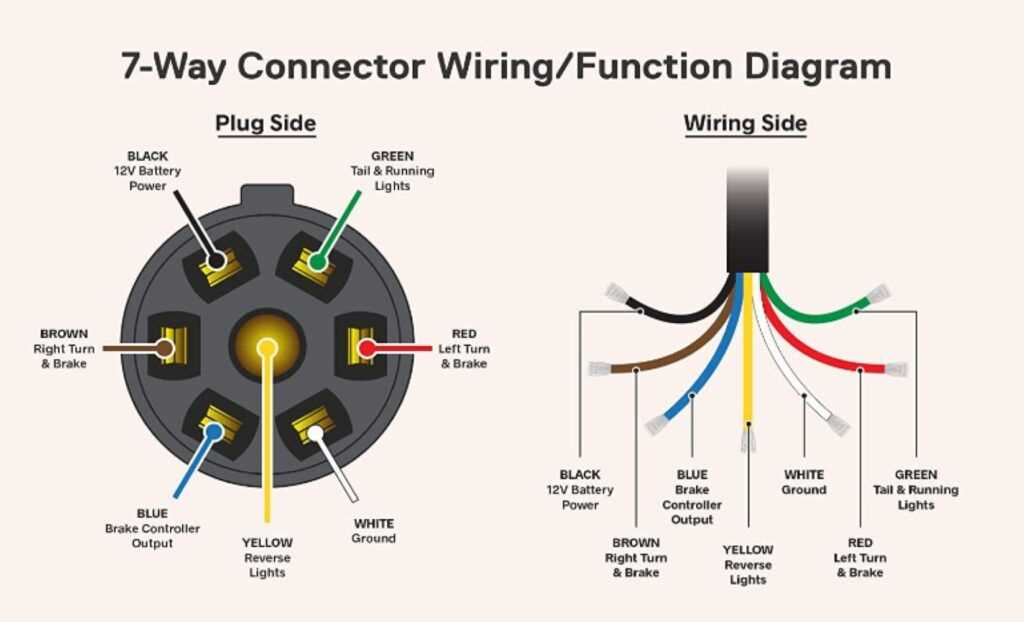

Wiring Diagram for 7 Pin Trailer Socket
To begin, you must understand the function of each connector on the 7-pin setup. Typically, the first pin connects to the ground, ensuring a safe return path for the electrical current. Pin 2 is generally reserved for the left indicator, while pin 3 serves the right indicator function. Each pin must be wired to the correct electrical component for the setup to work properly.
Ensure that all wiring follows the standard color codes. The most common color schemes for this configuration involve using white for ground, green for left turn signals, and yellow for right turn signals. By following these conventions, you will avoid cross-wiring, which can lead to system malfunctions or electrical shorts.
It is important to securely connect the wires. Use proper crimps or soldered connections to ensure each wire makes a firm, consistent contact with its respective pin. Loose connections can lead to unreliable operation, including intermittent power loss or malfunctioning signals.
Before sealing the system, test each circuit. Activate the left and right turn signals, brake lights, and reverse lights to verify that all functions are operating as expected. Make sure there is no flickering or failure in any part of the setup.
Lastly, protect the connections with electrical tape or heat shrink tubing. This will shield the exposed wiring from weather elements and reduce the risk of corrosion. Regularly check the integrity of the setup to ensure the connections remain solid and effective over time.
How to Connect the 7 Pin Trailer Socket to Your Vehicle
Start by locating the vehicle’s electrical harness, usually found near the rear bumper or the tow bar area. This is where you will make the connections to enable proper functionality for all necessary components such as lights and indicators.
Next, match each wire from the new connection unit to the vehicle’s corresponding wire. Begin with the ground connection, typically a white or black wire. Ensure the ground is securely attached to a clean metal surface on the vehicle to prevent any power issues.
The left and right indicator lines should be connected to the corresponding wires in the vehicle’s harness. The left indicator is usually connected to the green wire, while the right indicator should be connected to the yellow wire. These wires control the turn signals on both sides.
For brake lights, use the red wire, connecting it to the vehicle’s brake light circuit. This will ensure that when you apply the brakes, the brake lights on the connected system will illuminate properly. Verify the correct circuit in your vehicle to avoid faulty connections.
Connect the reverse light to the blue wire. This wire should be hooked up to the vehicle’s reverse light circuit to ensure that the lights activate when the vehicle is shifted into reverse. Check for functionality by engaging reverse gear and testing the connected lights.
Finally, make sure all the wires are securely attached, using quality connectors or crimps. Test the system by activating each light function, including the indicators, brake lights, and reverse lights, to verify proper operation. Once confirmed, seal all connections to prevent corrosion or short circuits.
