Confirm all sensor and solenoid pin assignments before connecting the control module. Use a digital multimeter to verify continuity and correct voltage at each terminal to prevent misoperation.
Label each harness lead with its function including pressure control, shift solenoids, and speed sensors. Red wires typically carry power, black is ground, and signal wires can be white, blue, or green depending on the function.
Secure all connectors with proper insulation to prevent short circuits or corrosion. Use dielectric grease on terminals exposed to moisture to maintain reliable contact and extend component lifespan.
Trace the main power and ground paths from the fuse block to the unit. Ensure each connection meets amperage requirements; use 14–16 gauge wire for solenoids and 18–20 gauge for sensor leads.

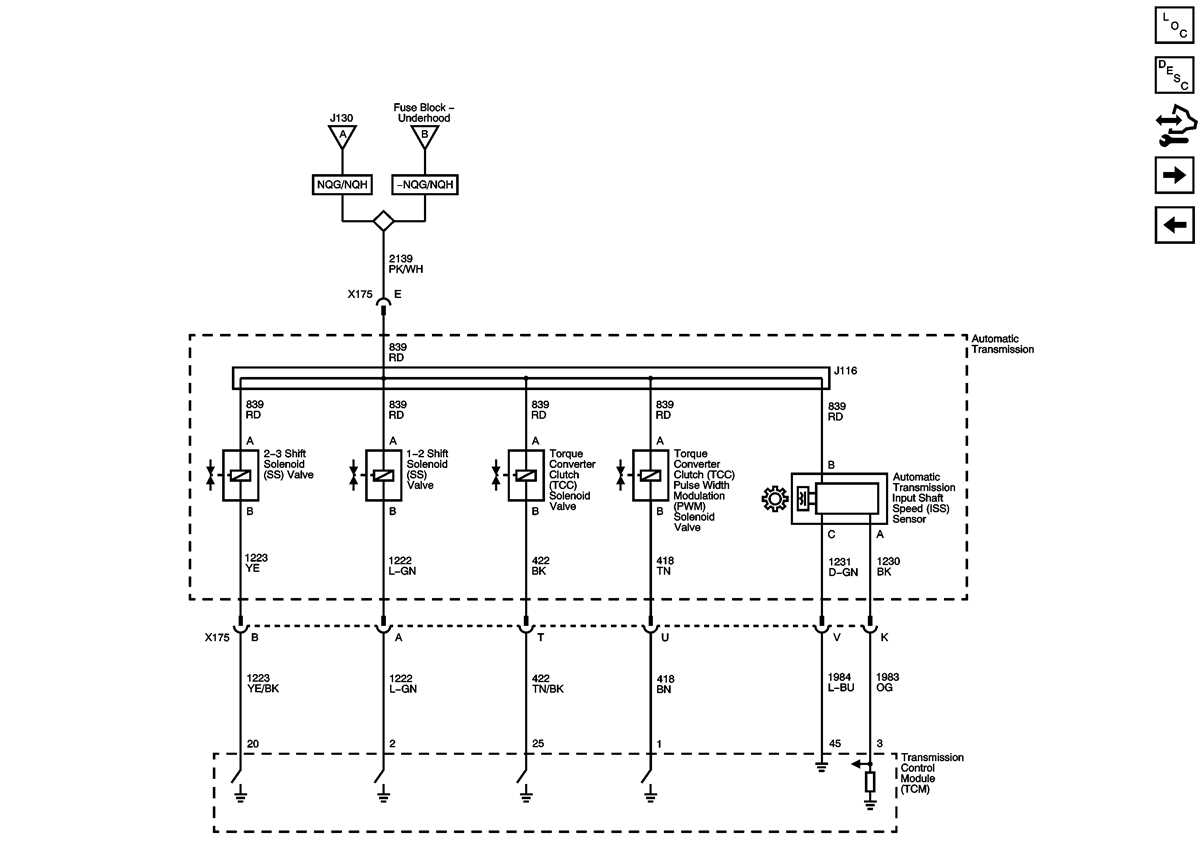

4L60E Transmission Electrical Connection Guide
Confirm each solenoid and sensor terminal before connecting to the control module. Pressure control and shift solenoids should receive 12 V from the fuse block, while speed sensors must maintain a low-resistance path to the ground. Incorrect connections can cause slipping, harsh shifts, or failure to engage gears.
Power and Ground Routing
Run main power leads directly from the battery through a properly rated fuse to the unit. Ensure the ground strap connects to a clean chassis point with minimal resistance. Use 14–16 gauge wire for high-current circuits and secure all connectors with insulated clips to prevent vibration-related disconnections.
Identifying Solenoid and Sensor Terminals
Label each solenoid terminal before connecting to the control module. Use the printed codes on the unit and mark leads with numbered tags or coloured sleeves to avoid confusion. Shift solenoids typically require 12 V power and a return path to ground for proper operation.
Check sensor terminals with a multimeter to confirm continuity and resistance values. Vehicle speed sensors usually show 200–1,000 ohms between terminals, while pressure sensors may have variable outputs depending on system pressure. Incorrect identification can lead to inaccurate readings and harsh gear changes.
- Main solenoids: Control clutch and band applications, usually marked S1, S2.
- Shift solenoids: Control gear engagement, marked A, B, or C depending on circuit layout.
- Speed sensors: Provide rotational feedback, typically two-pin connectors with signal and ground.
Document all terminal locations and maintain a reference sheet during installation. Verify each connection after securing to prevent miswiring that can cause slippage, overheating, or failure to engage gears. Use insulated tools and secure connectors with clips to resist vibration and maintain consistent contact.
