Ensure the main breaker is switched off before beginning any connection. Confirm the voltage matches the appliance rating, typically 240 volts with two hot lines and a neutral. Using a voltage tester can prevent accidental shocks.
Identify each conductor accurately. One wire serves as neutral, while the other two carry current. Neutral is usually white, and the hot lines are black and red. Mark each conductor clearly to avoid misconnection.
Secure all terminals tightly to prevent loose contacts. Apply pressure clamps or screws according to the terminal specifications. Loose connections can lead to overheating or arcing.
Use proper strain relief where the cable enters the receptacle box. Strain relief prevents wire movement and reduces mechanical stress.
Double-check continuity and polarity with a multimeter before energizing the circuit. Correct identification ensures the appliance operates safely and prevents damage.

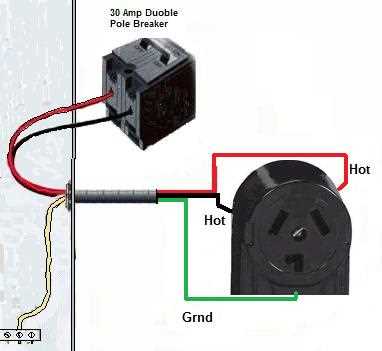

Connecting a 3 Wire Dryer Outlet Safely and Accurately
Turn off the main power supply before starting any connections. Confirm the voltage at the receptacle is 240 volts using a reliable tester to avoid shock hazards.
Identify each conductor precisely. Typically, one wire is neutral (white), and the other two carry current (black and red). Marking each wire helps prevent misconnection during installation.
Attach the neutral conductor to its terminal securely, ensuring no insulation is trapped under the screw. This guarantees stable contact and reduces the risk of overheating.
Connect the two hot conductors to the corresponding terminals, tightening screws firmly. Check that each wire is fully seated under the clamp to maintain proper current flow.
Install a strain relief clamp at the point where the cable enters the receptacle. This prevents mechanical stress on connections and keeps the conductors from loosening over time.
Verify continuity and correct polarity using a multimeter before powering the appliance. Confirm that each conductor aligns with its designated terminal to ensure safe operation and prevent damage.
Identifying Wire Functions and Color Codes in Dryer Outlets
Confirm the purpose of each conductor before making connections. Typically, a white wire serves as neutral, while black and red carry current to provide the necessary voltage.
Use standardized color codes to avoid errors. White indicates neutral, black connects to one hot terminal, and red connects to the second hot terminal. Deviations from this standard may signal modifications or repairs.
Inspect insulation and gauge to match amperage requirements. A 30-amp appliance requires 10-gauge wires; thinner conductors can overheat and cause hazards.
Label each wire clearly during installation or maintenance. Using tags or colored tape ensures correct reconnection and prevents reverse polarity that could damage the appliance.
Check terminal assignments on the receptacle. Ensure the neutral wire goes to the center or designated neutral slot, while the hot conductors occupy side terminals. Misplacement can trigger circuit breakers.
Test continuity and voltage after connections. A multimeter verifies that each conductor delivers the expected current and that no shorts exist between hot and neutral lines.
Document any non-standard setups in a maintenance log. Recording variations from typical color codes helps future troubleshooting and keeps installation compliant with electrical safety guidelines.
