To ensure a successful installation of your pulling system, it’s important to start with proper power connections. Begin by connecting the main power cable from the battery to the control unit. Ensure the cable is thick enough to handle the required amperage without overheating.
Next, route the control switch to the desired location. This is where you’ll control the activation and deactivation of the system. Make sure the switch is correctly wired to the power source and the motor, with secure connections at both ends. The switch should be placed in a location that is easily accessible and protected from external elements.
Pay close attention to grounding. The negative terminal of the power source should be securely grounded to prevent electrical issues. If the system doesn’t have a strong ground connection, you may experience intermittent functionality or even failure to engage.
Once all connections are made, check the entire setup for any loose or corroded connections. Use a multimeter to test the system’s functionality, verifying that the power flows from the battery to the motor and control switch without interruption.

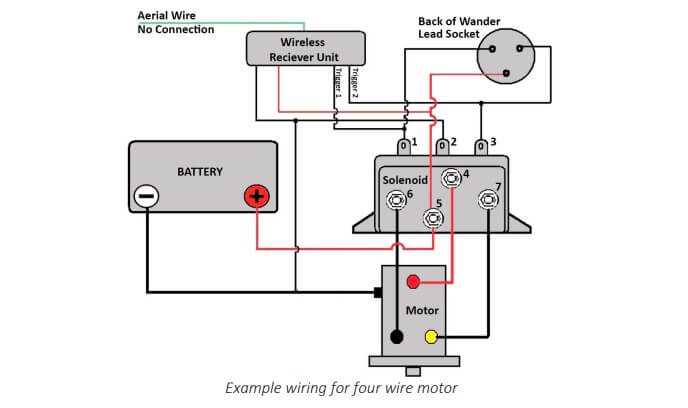

Wiring Setup for a 12V Electric Pulling System
To begin with, connect the positive terminal of the battery to the power input on the relay. Use a cable that can handle the current load of the system without excessive voltage drop. A 10-gauge wire is typically sufficient, but always verify the amperage requirements for your specific setup.
Next, connect the control switch to the relay. This switch will be responsible for activating the pulling mechanism. Ensure that the wiring from the switch is routed properly to the relay’s activation terminal. This allows the system to engage when the switch is pressed.
In order to prevent electrical malfunctions, grounding is critical. Securely attach the negative terminal of the battery to a solid, clean metal surface on the vehicle’s frame. This will establish a reliable path for the return current and help ensure the system operates smoothly.
Connecting the Motor
Attach the output terminals from the relay to the motor’s terminals. These connections allow the relay to send power directly to the motor when activated. Make sure these connections are tight and free from corrosion to maintain efficient electrical flow.
Check the cable routing to avoid any stress points or areas where the wires might rub against sharp edges. Use cable ties to secure the wires and prevent them from becoming loose or damaged during operation. Avoid placing wires in locations that are exposed to excessive heat or moisture, as this can cause premature wear.
If you encounter any issues, use a multimeter to verify the voltage at each connection point. This will help ensure that power is reaching the motor and switch as expected. If there’s a voltage drop or no power at all, inspect the connections and replace any damaged components.
Finally, after completing the installation, test the system by activating the control switch. Monitor the system for any abnormal sounds or behaviors. If everything operates smoothly, you can confidently use the pulling system for its intended purpose.
How to Properly Connect a 12V Pulling System to the Power Source
Start by connecting the positive terminal of your battery to the power input on the control relay. Use a thick, durable cable that can safely carry the required current, typically a 10-gauge wire. Ensure the connection is secure to prevent power loss or overheating during operation.
Next, carefully route the negative cable from the battery to the vehicle’s metal frame. The frame acts as the ground point for the system. This connection should be tight and free from rust or dirt, as poor grounding can lead to malfunction or electrical interference.
Ensuring a Solid Power Flow
Check the connection from the power relay to the motor, ensuring that the power flows directly from the battery to the motor when the relay is activated. It’s important that these connections are free from corrosion and are tightly secured to prevent any interruptions during use.
After making the connections, verify the system by testing the voltage at each point with a multimeter. If you notice any voltage drops, inspect the wires for any loose connections or damage. Ensuring all connections are clean and secure will prevent any performance issues during operation.
