Verify the voltage ratings on each terminal before attaching any conductors. Match the color-coded wires to their corresponding sockets to prevent reverse polarity and accidental short circuits.
Ensure the metal contacts are clean and free of corrosion. Tighten each screw firmly without overcompressing, as loose connections can cause flickering lights or intermittent power loss during transit.
Use protective sleeves or heat-shrink tubing over exposed wire ends to prevent accidental contact with the vehicle chassis. Check ground continuity by measuring resistance between the connector body and the vehicle frame, aiming for near-zero ohms.
Test each circuit individually using a multimeter or a small test load. Confirm that brake, signal, and auxiliary lines activate correctly before finalizing the assembly to avoid malfunctions while towing.

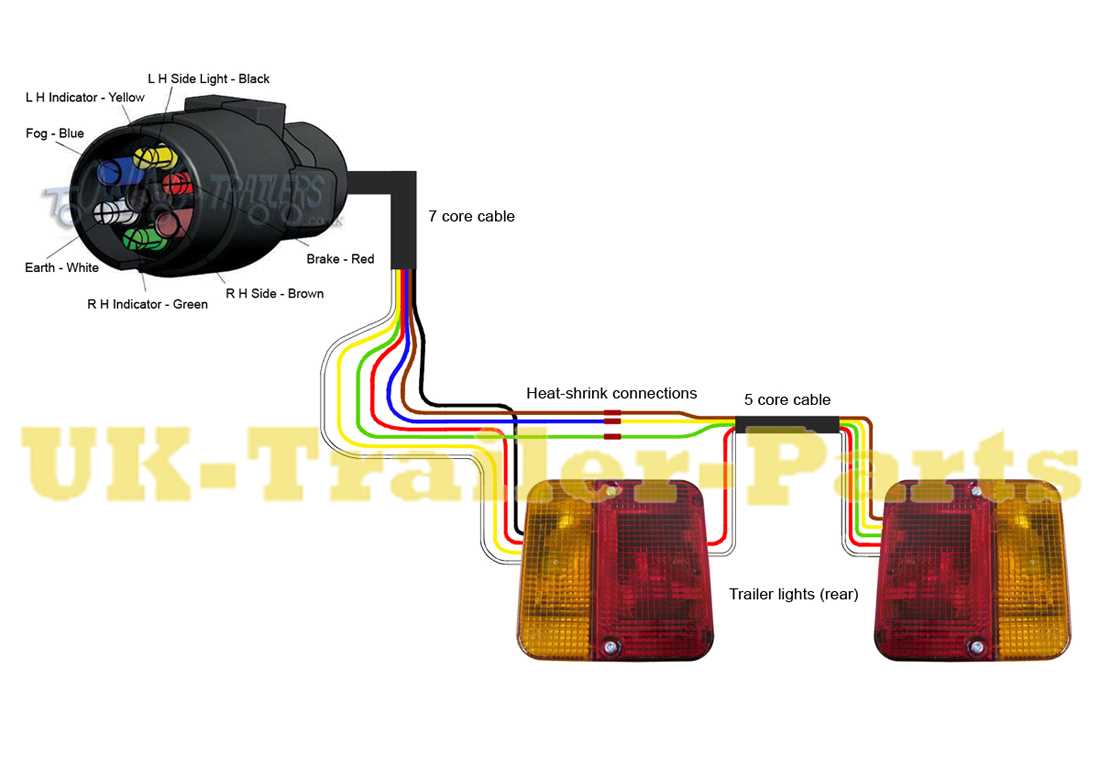

Connecting a 7 Pin Towing Connector
Start by identifying each socket using a multimeter and the manufacturer’s color code chart. Confirm voltage ratings on all terminals before making any connections to prevent overloading sensitive circuits.
Strip insulation from each conductor carefully to expose enough copper for a secure connection. Avoid nicking wires as this weakens the strand integrity and can cause intermittent faults under vibration.
Attach the ground wire first, ensuring a tight mechanical bond to the metal chassis. Check continuity with a multimeter to verify resistance close to zero ohms, which guarantees a reliable return path for all electrical loads.
Connect the signal and brake circuits according to their designated sockets. Double-check color coding and polarity before tightening screws, as reversed connections can cause malfunctioning lights or blown fuses.
Secure each conductor using insulated ferrules or terminal lugs to prevent fraying. Route wires carefully to avoid sharp bends or contact with moving components that may wear insulation over time.
After completing connections, apply a small test load to each line individually. Observe proper illumination and activation of brake, turn, and auxiliary signals to ensure every channel responds correctly.
Finally, seal the connector housing to protect against moisture and corrosion. Label each wire or maintain a reference chart for future maintenance to simplify troubleshooting and reduce the risk of misconnection during repairs.

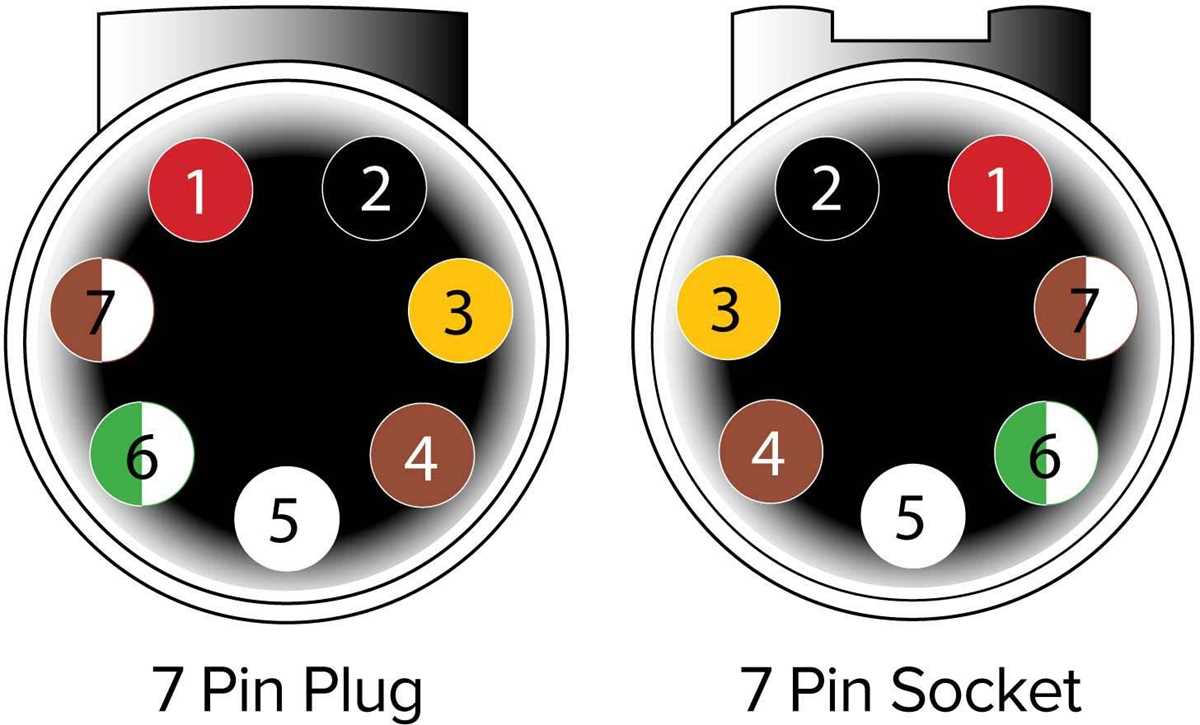

Identifying Each Pin and Its Electrical Function
Measure the resistance across each terminal to distinguish control pins from load connections. Coil terminals typically show low ohms, while output contacts remain open until activation.
Locate the common pin, which serves as the main connection for powered circuits. Verify continuity with each normally closed and normally open terminal to ensure correct identification before attaching any conductors.
Identify the socket for brake lights by tracing the wire to the vehicle’s brake switch. This pin should carry 12 volts only when the brake pedal is pressed, confirming its role in the system.
Determine the left and right turn signal pins by applying intermittent power from a 12-volt source and observing which lights flash. Label each pin to prevent confusion during future maintenance or expansion.
The tail or running light connection can be verified by providing constant 12-volt supply and confirming all marker lights illuminate. Use a multimeter to check voltage drop across the terminals for stability.
Auxiliary circuits often power additional devices such as electric brakes or charging lines. Test these pins with a controlled load to confirm the output can sustain the connected devices without overheating.
Ground terminals should be connected to the vehicle frame and show near-zero resistance to all other negative points. Check for secure attachment to avoid flickering lights or intermittent power loss during transit.
After identification, maintain a pinout reference chart for all seven terminals. Document voltage ranges and polarity to simplify troubleshooting and prevent misconnection when replacing connectors or adding new equipment.
