Attach the live lead to the top terminal first to ensure proper current flow through the device. Verify that the wire insulation is stripped about ¼ inch for a secure connection.
Identify the neutral and ground conductors clearly before installation. Connect the neutral to the silver screw and the ground to the green screw to maintain safe operation.
Use a flathead screwdriver to tighten each terminal without over-torquing. Loose contacts can cause flickering or intermittent operation in the lighting circuit.
Turn off the circuit breaker before making adjustments. Confirm voltage is absent at the terminals with a multimeter to prevent shocks during installation.
Label each conductor with tape or marker if multiple lines are present. This prevents mistakes when multiple circuits converge in one box.
After connections are complete, restore power and test the fixture. Flip the control to verify the lamp responds immediately and consistently without sparks or delays.

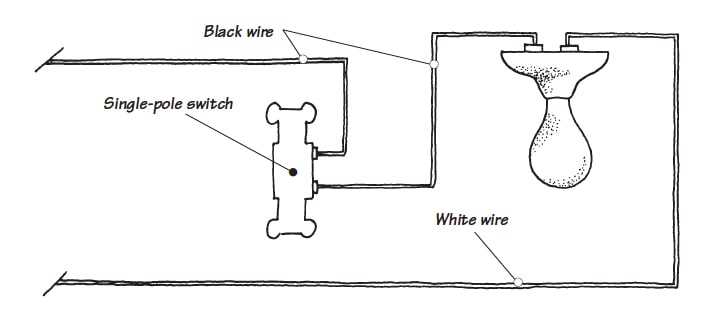

Connecting a Basic Lighting Control
Attach the live conductor to the brass terminal first to ensure power flows correctly. Confirm the wire insulation is stripped to approximately ¼ inch and inserted fully into the terminal slot to prevent loose connections that could cause flickering.
Identify the neutral and ground wires before making any connections. Secure the neutral to the silver screw and the ground to the green screw. After all leads are tightened, restore power and test the fixture by toggling the control, ensuring the light responds consistently without sparking or delay.

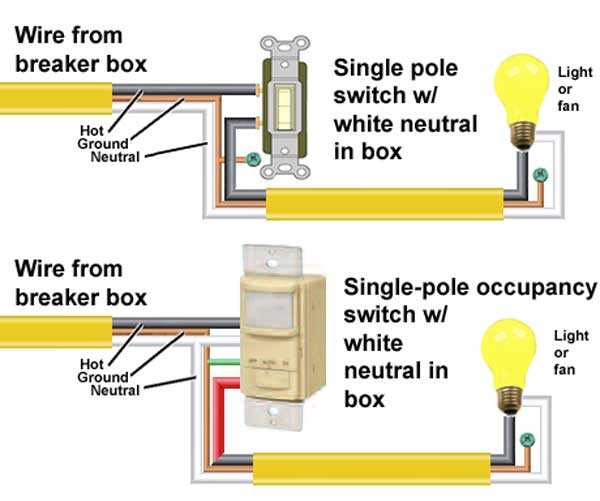

Identifying Terminals and Wire Colors
Start by locating the brass and silver screws on the device. The brass screw receives the live conductor, while the silver screw is reserved for the neutral line to maintain correct current flow through the fixture.
Check the insulation color of each conductor before attachment. Standard practice uses black for hot, white for neutral, and green or bare copper for ground. Confirming these colors prevents reverse connections that can trigger shocks or malfunction.
After securing the leads, gently tug each wire to ensure it is firmly seated. Loose contacts can cause flickering lights or intermittent operation. Labeling each conductor with tape or marker is recommended when multiple circuits are present in the box.
