Step by Step Guide for Wiring a Dimmer Switch in Home Lighting

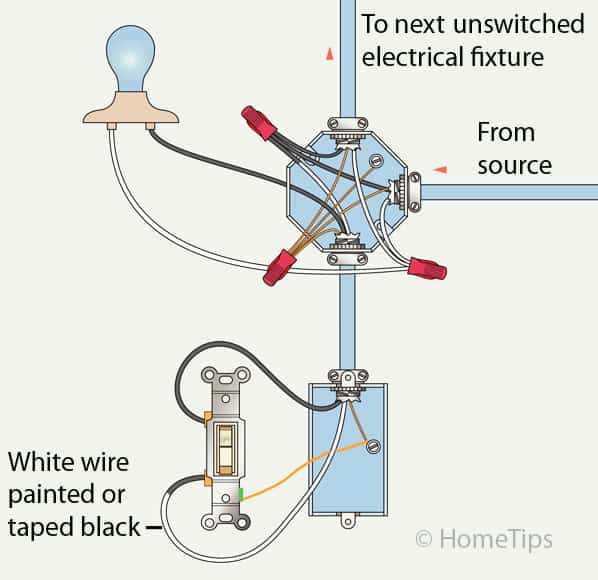

wiring a dimmer switch diagram

Ensure power is turned off at the breaker before connecting any terminals. Verify line and neutral wires with a voltage tester to prevent accidental shocks. Label each wire to avoid confusion during assembly.

Choose a compatible module that matches the load type, whether LED, incandescent, or halogen. Check the maximum wattage rating and avoid exceeding it to prevent overheating or tripping protection devices. Follow manufacturer ratings precisely.

Connect the live conductor first to the input terminal, followed by the neutral and ground connections. Tighten all screws firmly to prevent loose contacts that could cause flickering or arcing. Inspect terminals for corrosion or paint residue.

Test the module at low levels before full operation. Gradually increase output to confirm smooth intensity control. Observe for any buzzing or flickering that may indicate incompatible bulbs or improper installation.

Connecting a Variable Light Controller in Home Circuits

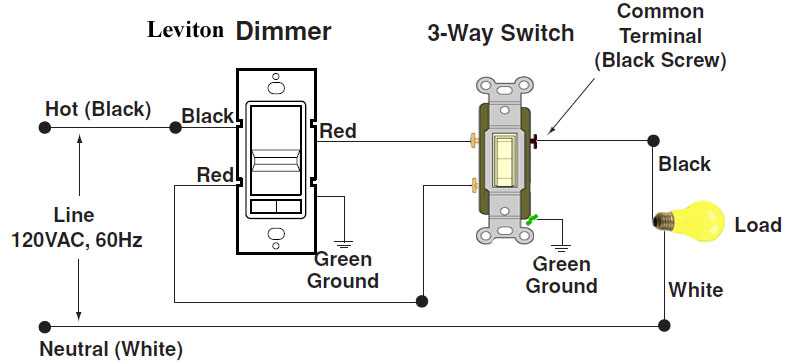

wiring a dimmer switch diagram

Turn off the main power supply and verify with a tester that no voltage is present. Mark the live, neutral, and ground wires clearly before making any connections to avoid mistakes.

Select a module compatible with the bulb type and total load. LED and CFL bulbs often require models with electronic controls, while incandescent and halogen bulbs can use standard resistive designs. Check wattage ratings carefully to prevent overheating or tripping circuit protection.

Attach the live conductor first to the input terminal, ensuring a firm connection. Follow with the neutral and ground connections, keeping wires untangled. Use proper screw torque to avoid loose contacts that may create flickering or arcing.

Arrange leads neatly within the electrical box to prevent pinching or short circuits. Maintain separation between high-current lines and signal connections to reduce interference. Use insulated terminals for added safety.

Test the module at minimal output before full operation. Gradually increase the intensity and observe for flickering, humming, or heat buildup. Adjust or replace bulbs if instability occurs, and verify all connections remain tight.

Selecting Compatible Variable Light Modules and Bulb Types

Match the controller to the bulb load by checking the total wattage. Exceeding the rated capacity can cause overheating or tripping. Always sum the wattage of all fixtures connected to the module.

Identify the bulb technology before choosing a control unit. LED and CFL lamps often require electronic modules with trailing-edge design, while incandescent and halogen bulbs are compatible with standard resistive modules.

Check the minimum load requirement for electronic modules. Some units may not function properly with very low wattage loads, causing flickering or erratic performance. Add dummy loads if necessary for stable operation.

Consider module type for single-pole or multi-location control:

  • Single-location models for one control point
  • 3-way or multi-location models for multiple control points in larger rooms
  • Smart electronic units for remote or automated control

Review compatibility with bulb dimming curves. LED lamps may have nonlinear dimming response, so select a module specifically rated for that bulb type. Test with one lamp before connecting multiple units.

Examine module surge tolerance. Some units include inrush current protection to handle filament lamps or large LED arrays. Modules without protection may fail prematurely when powering high-wattage loads.

Ensure thermal design allows proper ventilation. Modules with metal casing or heatsinks should not be enclosed in tight boxes that restrict airflow. Check operating temperature range for each unit.

Document bulb types and module ratings for each room. Label connections clearly to simplify future maintenance or upgrades and prevent mismatched units from being installed.
