Ensure all power sources are de-energized before attempting any modifications to the circuit to prevent electric shock or equipment damage. Use a non-contact tester to verify zero current at each terminal.
Select conductors rated for 15 or 20 amps depending on the load requirements of the fixtures. Standard copper cables with proper insulation are recommended to maintain safety and avoid overheating.
Identify terminal pairs carefully on each control device. Label incoming and outgoing conductors to maintain consistent connections, reducing the risk of reversing polarity or creating a short.
Run the conductors in parallel runs between the initial and final control points, keeping crossings minimal. Secure cables with clips to avoid strain and maintain separation from high-voltage lines.
Test the sequence of operation after completing connections. Operate each control point individually and verify that all connected fixtures respond as expected without flickering or unintended disconnections.

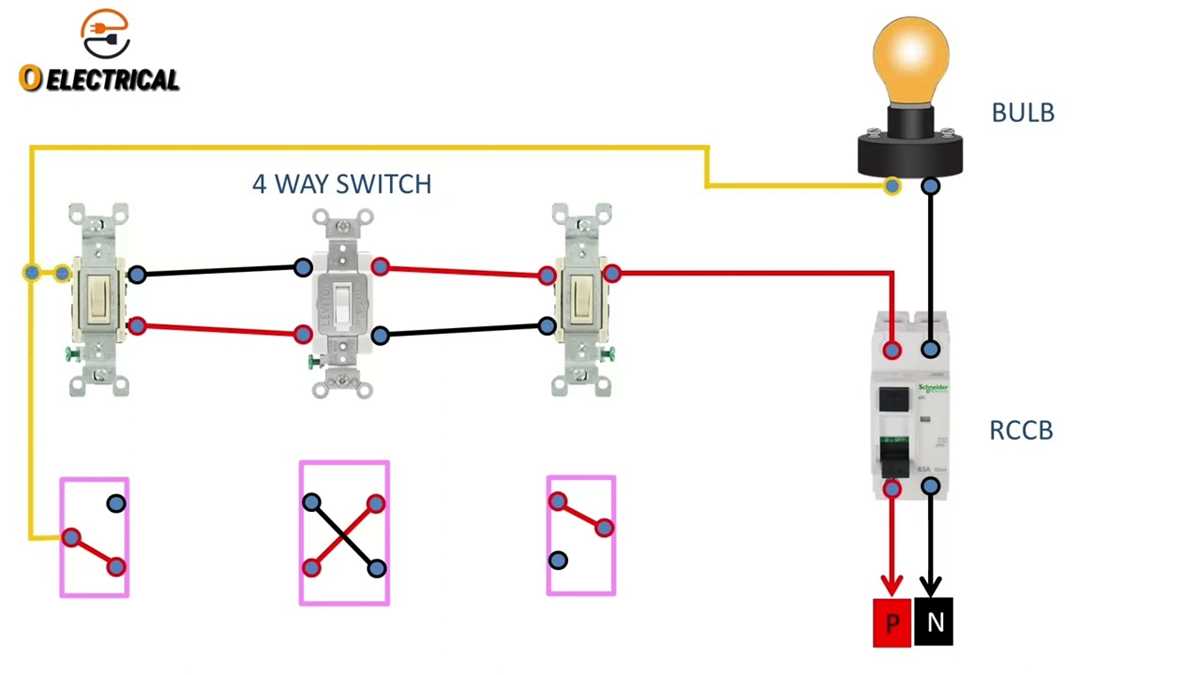

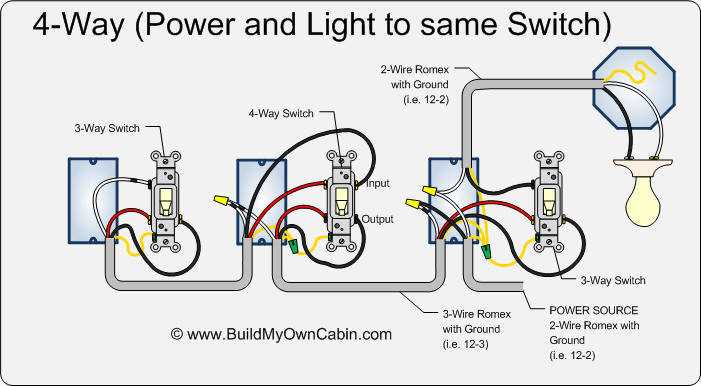

Wiring 4 Position Electrical Switch for Home Circuits
Turn off all power at the breaker panel before starting any connections to prevent shock hazards. Confirm with a voltage tester that all terminals are de-energized.
Use conductors rated for 15 or 20 amps depending on the load of the fixtures being controlled. Opt for copper cables with proper insulation to minimize heat buildup.
Label each terminal and conductor at every control point to maintain consistent connectivity. Misidentifying lines can create short circuits or unpredictable operation.
Route conductors in straight runs between the initial and final control devices. Keep parallel runs close together and avoid unnecessary crossing to reduce interference.
Establish Traveler Connections
- Connect the two middle terminals on each intermediate control device to corresponding conductors.
- Ensure tight, secure connections to maintain continuity across all positions.
- Double-check that all fasteners are torqued correctly to prevent loosening over time.
Final Fixture Integration
Attach the load conductors to the final control point, confirming polarity and proper terminal placement. Test continuity from the first device to the last using a multimeter.
Operate each control independently to verify correct functionality. All connected fixtures should respond appropriately in every position without flicker or delay.

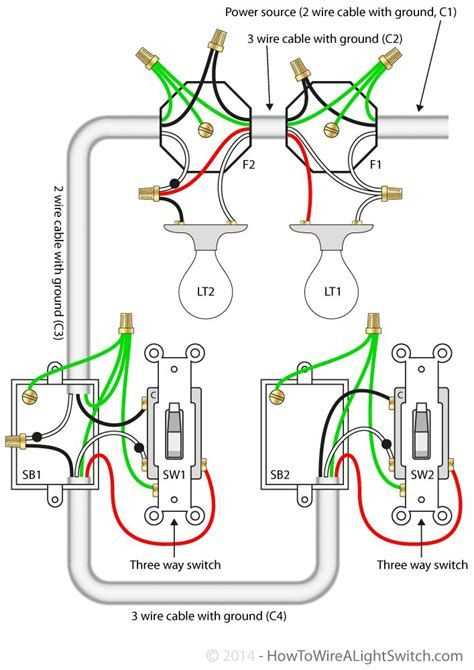

Connecting Two 3 Position Switches to Control One Circuit
Shut off power at the main panel and verify each conductor is de-energized before beginning connections. Safety verification prevents accidental shorts and shock hazards.
Identify the common terminals on both three-position devices. Connect the line conductor from the power source to the first device’s common terminal and the load conductor to the second device’s common terminal.
Run traveler conductors between the intermediate terminals of the two devices. Use properly rated copper cables and maintain consistent color coding to avoid confusion during installation.
Secure all connections with suitable terminal screws or connectors. Loose contacts can cause flickering, overheating, or intermittent operation in the controlled circuit.
Test continuity across positions using a multimeter to confirm the circuit responds correctly from each device. Each toggle should allow the load to turn on or off regardless of the other device’s state.
Mount devices in their enclosures ensuring that cables are not pinched and that strain relief clamps hold conductors firmly. After restoring power, perform functional tests to confirm reliable control from both locations.
