To control a single light from two separate locations, you need to establish a system where two switches are connected in a way that either can turn the light on or off. This setup is commonly used in staircases, hallways, or large rooms with multiple entry points. The process involves connecting the switches in such a way that flipping either one will affect the same light source.
Begin by selecting two single-pole, double-throw (SPDT) switches. These are the key components for this kind of installation. The switches should be placed at the two desired locations. The wiring between these switches and the light fixture will allow the flow of electricity to be altered depending on which switch is used, enabling control from either position.
To ensure everything works correctly, make sure that the wiring is done according to the correct sequence and specifications. Incorrect connections can lead to short circuits, electrical failures, or safety hazards. Follow a clear, step-by-step guide for installing the switches, ensuring both safety and functionality in your home or office setup.
Understanding the Components of a Dual-Switch Light Control System
The primary component in this setup is the switch, specifically the single-pole, double-throw (SPDT) type. This switch type is capable of redirecting the flow of electricity between two different pathways. When used in tandem, two SPDT switches can control the same light from two different locations. Each switch has a common terminal (COM), a traveler terminal, and a third terminal that is either connected to the load or to the source of power.
The travelers are the wires that run between the two SPDT switches. These wires are crucial for creating the connection that allows both switches to control the same light. Typically, two traveler wires are used, each connected to one of the traveler terminals on each switch. These wires carry the electrical current that will either complete or break the circuit depending on the position of the switches.
Next, you need a light fixture or load, which in this case is the light you wish to control. The light fixture is connected to the switches, completing the electrical path that either allows or blocks current from flowing to the light source. When the switches are correctly positioned, they will either allow the light to turn on or off, depending on the configuration of the system.
The neutral wire plays a supporting role in completing the electrical circuit. This wire is typically connected directly to the light fixture, ensuring that the circuit can be completed when the switches are in the off position. The neutral wire serves as the return path for the electrical current, ensuring safe operation and preventing short circuits.
The live wire (also known as the hot wire) provides power to the system. This wire is typically connected to the common terminal of one of the switches and then routed to the light fixture through the traveler wires. The live wire carries the current that powers the light and is only connected when one of the switches is in the appropriate position.
For added safety, a ground wire should be used. This wire provides a path to the ground in case of a short circuit, directing excess current away from the system to prevent damage or injury. The ground wire is usually connected to the metal parts of the switches or the light fixture itself.

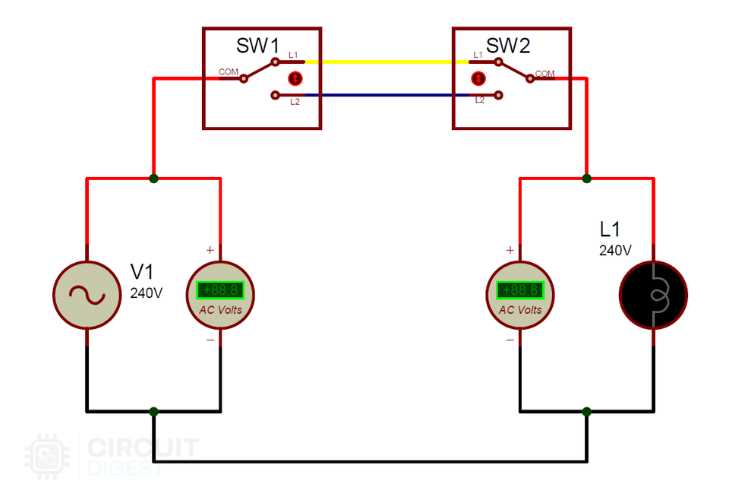

To connect everything, the power source (often the electrical panel) is connected to the first switch’s common terminal, while the travelers run between the switches. The second switch’s common terminal is then connected to the light fixture, allowing the switches to control the light. It is essential that the traveler wires are connected securely at both switches to ensure proper functionality.
Once all components are correctly connected, the system will allow you to control the light from either switch location. When one switch is flipped, it will either complete or break the circuit, sending electricity to the light. This system is both practical and simple, making it ideal for areas where more than one access point for control is needed, such as staircases or hallways.
Step-by-Step Instructions for Setting Up a Dual-Switch Light Control System
Begin by gathering all the necessary components: two single-pole, double-throw (SPDT) switches, electrical wire, a light fixture, and the required tools like wire strippers, a screwdriver, and electrical tape. Ensure you have enough wire to connect both switches and the light fixture.
Next, turn off the power at the electrical panel. This step is critical for safety. Use a voltage tester to verify that the circuit is not live before proceeding with any connections.
Start by connecting the power supply to the first switch. Attach the live wire (the hot wire) to the common terminal of the first switch. This wire carries electricity from the power source to the switch, which will then send it to the light fixture depending on the position of the switches.

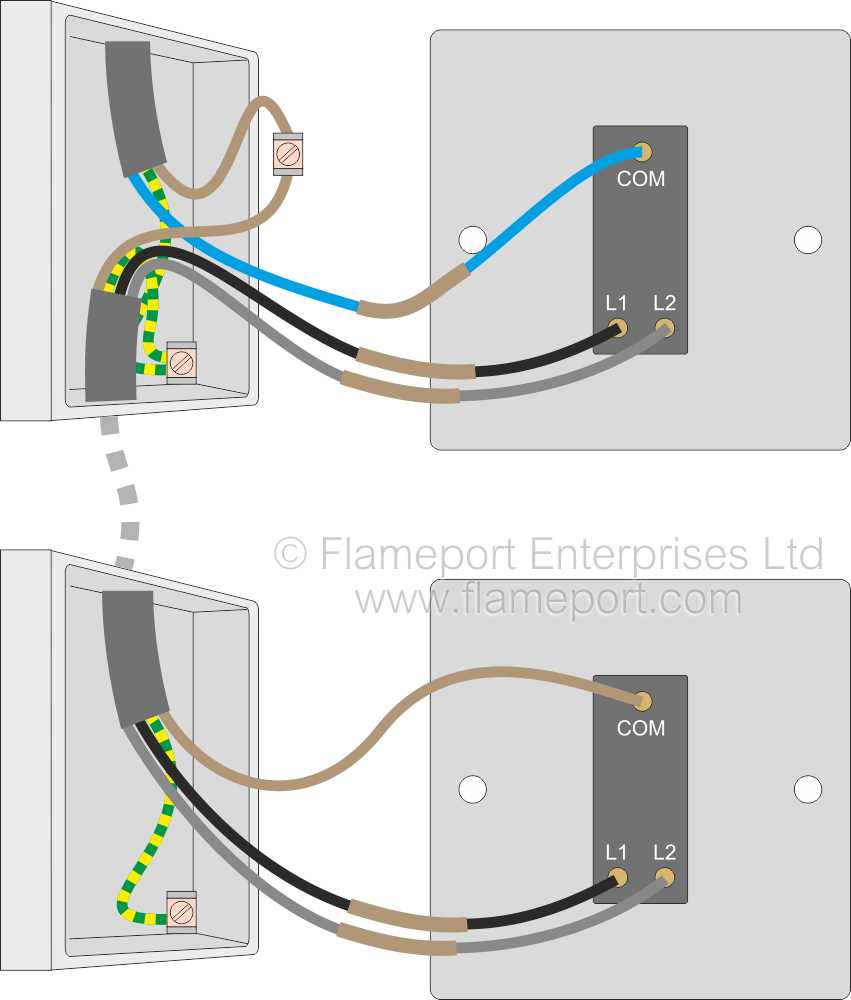

Now, take two additional wires to connect the two switches. These wires will be your traveler wires. Attach one traveler wire to the traveler terminal on the first switch and the other traveler wire to the corresponding traveler terminal on the second switch. These wires allow the electricity to flow between the switches, enabling both switches to control the light fixture.
At the second switch, connect the other ends of the traveler wires to the traveler terminals. The common terminal of the second switch should now be connected to the light fixture using a third wire. This will complete the circuit when either switch is flipped, allowing current to flow to the light.
Ensure the neutral wire is securely attached to the light fixture, as this wire completes the return path for the current. The neutral wire should be connected directly from the power supply to the fixture, without interference from the switches.
Once the connections are in place, double-check the wiring for correctness and safety. Use electrical tape to secure any exposed wire connections and prevent short circuits. Tighten all screws on the switches and ensure the wiring is neat and secure.
Finally, turn the power back on at the panel and test the system. Flip both switches to ensure that the light can be turned on and off from either location. If the light doesn’t work as expected, double-check all connections, especially the traveler wires and common terminals.
