Verify the full model number and revision stamped on the deck shell before referencing any layout sheet. Drive axle width, belt routing, and handle linkage differ by build run, and matching the exact revision prevents ordering mismatched hardware.

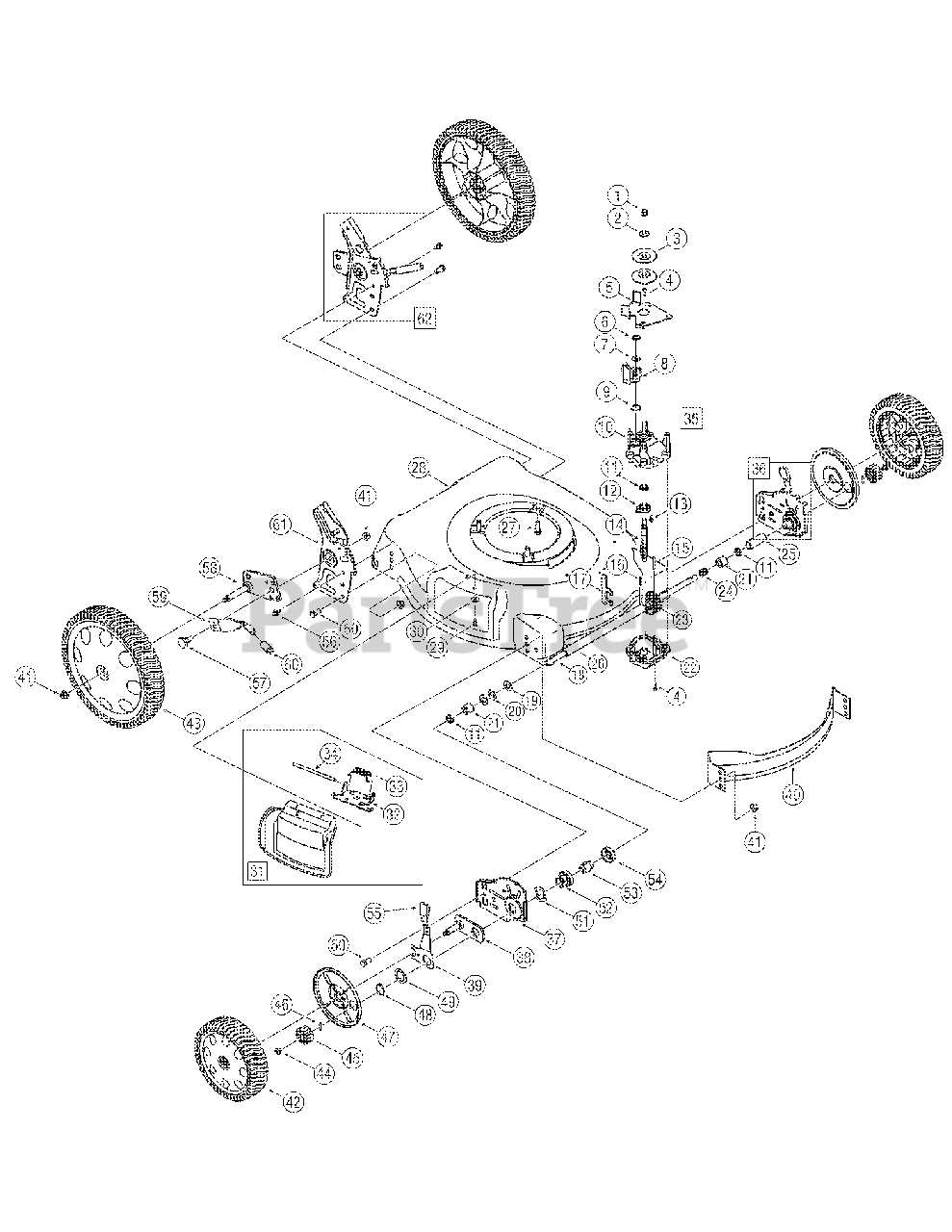

Use the exploded layout to identify assemblies by position rather than name. The cutting platform group shows blade mount, spindle shaft, bearings, and pulley stack in vertical order, while the drive group maps wheels, transmission pulley, belt guides, and tension spring.
Measure removed items against listed specs. Belt length and width, blade bore size, and fastener thread pitch are often noted near callouts. A caliper check avoids slip issues, vibration, and stripped threads.
Keep the layout visible during reassembly. Install items in the stacking order shown, with underlay components first and surface hardware last. Mark completed sections to ensure washers, spacers, and guards return to their original positions.
Reading the Component Layout by Model and Drive Configuration
Confirm the full model identifier and build suffix stamped on the deck housing before opening the layout sheet. Different drive setups use unique axle widths, belt paths, and transmission mounts, which change hardware selection.
Match the model identifier to the correct exploded view code shown in the index. Each code corresponds to a specific wheel drive type such as front assist, rear assist, or variable speed, and selecting the wrong view leads to pulley and cable mismatch.
Trace callout numbers from the visual layout to the reference table. The table lists item IDs, quantities, thread direction, and notes such as keyed shafts or left hand fasteners. Verify quantities to avoid missing spacers during reassembly.

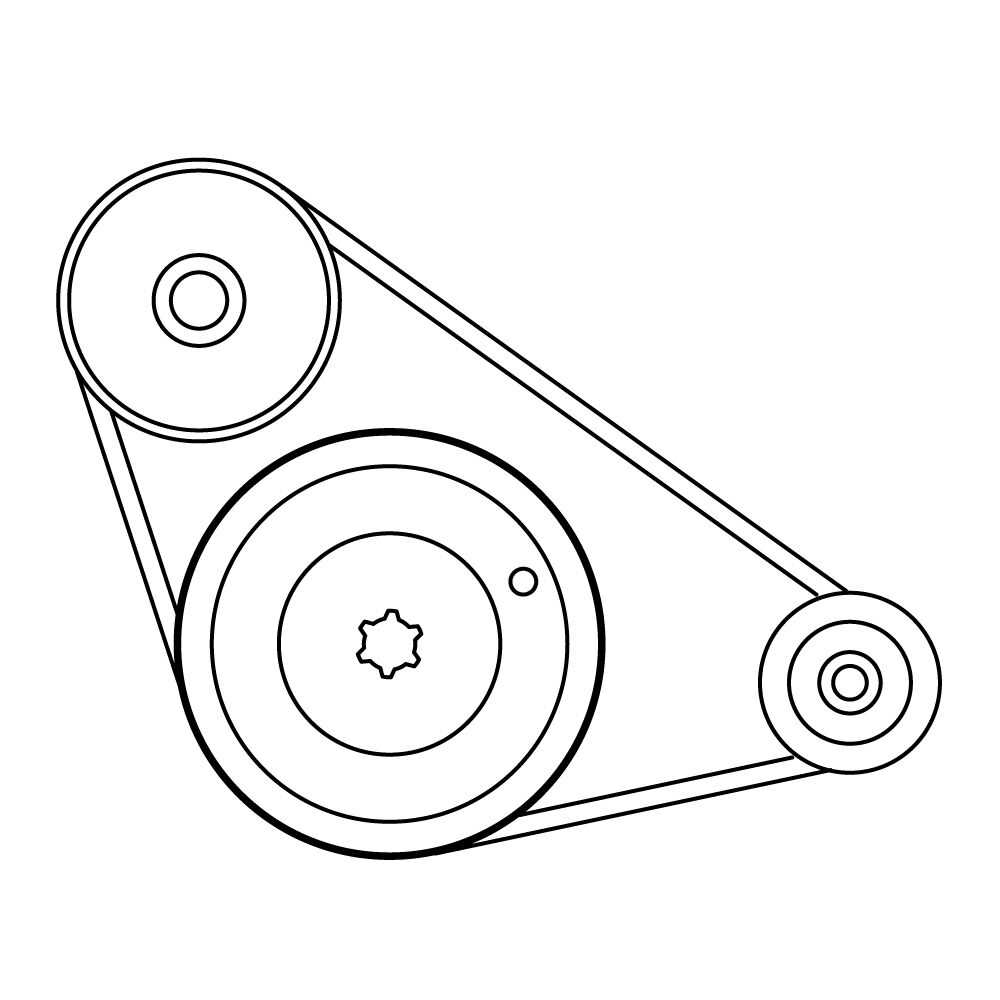

Separate drive assemblies from cutting assemblies in the layout. Drive groups include wheels, axles, belts, idlers, and springs, while cutting groups show blade mounts, shafts, bearings, and guards. Mixing these groups causes routing errors.
Read symbols carefully. Curved arrows show rotation direction, straight arrows indicate belt or cable travel, and dashed outlines mark hidden items behind covers. Misreading these markers results in reversed motion or binding.
Review footnotes for torque values and lubrication notes tied to the drive type. Apply the specified torque with a calibrated wrench to protect threads and maintain proper engagement.
Using the Layout Chart to Replace Drive System and Cutting Deck Components
Replace components only after matching the item number from the layout chart to the exact model identifier and drive configuration. This avoids errors with axle width, belt profile, and transmission pulley offset.
Confirm specifications before ordering. The reference table lists belt width and length, blade bore size, and fastener thread pitch. Measure the removed item with calipers and compare to the listed values to ensure correct fit.
Change wear pairs together. Install belts with their matching idler springs, and blades with the correct adapter hub and washer stack. Mixing old and new hardware causes slip, vibration, and uneven cutting.
Follow the stacking order shown in the exploded layout during installation. Components drawn beneath others mount first, while surface hardware installs last. This preserves alignment of pulleys, shafts, and guards.
Apply notes exactly as shown. Use threadlocker, light oil, or dry torque only where specified. Tighten fasteners to the listed value with a torque wrench to protect housings and brackets.
Verify operation before use. Spin the blade by hand, check belt tracking across pulleys, and actuate the drive control to confirm smooth engagement and full return without binding.
