Start by identifying the type of connector needed for your vehicle and camper. The most common configurations are 4-pin, 5-pin, and 7-pin connectors. The 7-pin is the most widely used, as it supports both lights and brake systems, as well as a ground connection.
Next, connect each wire according to the standard color code. The 7-pin connector follows this general layout: white for ground, brown for tail lights, yellow for left turn signal, green for right turn signal, blue for brakes, black for 12V battery power, and red for auxiliary power. Ensuring proper connection for each pin is key to preventing electrical malfunctions.
If you encounter any issues, check for damaged or loose wires, as they are common causes of malfunction. Also, inspect the connection points for rust or corrosion, which can disrupt the power flow and cause connection failures. Use a multimeter to test voltage and confirm that all systems are functioning correctly.
Understanding the Connector and Its Pins
Before starting any installation, identify the correct connector for your vehicle and the camper. The most common one is the 7-pin connector, as it covers the necessary functions for both braking and lighting systems. Knowing the function of each pin is key to making a safe connection.

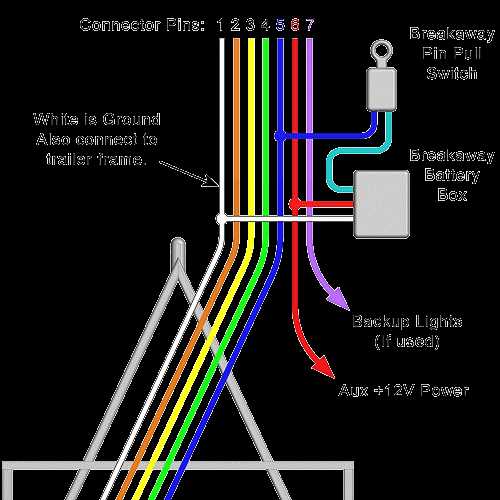

The 7-pin connector follows this pin-out configuration:
- Pin 1 (White): Ground connection
- Pin 2 (Brown): Tail lights
- Pin 3 (Yellow): Left turn signal
- Pin 4 (Green): Right turn signal
- Pin 5 (Blue): Brakes
- Pin 6 (Black): 12V battery power
- Pin 7 (Red): Auxiliary power
This layout is consistent with most setups, but double-check your specific connector type for any variations.
Installing the Connector
For a secure connection, strip about 1/2 inch of insulation off each wire before attaching it to the respective terminal. Make sure the wire is inserted firmly into the connector, then tighten the terminal screws to prevent loosening over time. Using quality crimp connectors can also improve reliability and reduce the risk of electrical failures.
Testing the Connection
After installation, it’s crucial to verify each connection before using the system. Using a multimeter, test each pin to ensure the correct voltage is present. The ground pin should always show continuity with the vehicle’s chassis, while the other pins should reflect the correct voltage when the corresponding systems (lights, brakes, etc.) are activated.
Common Wiring Issues
If you experience electrical problems, begin by checking for loose or corroded connections. Rust can form on connectors over time, disrupting the signal flow and leading to malfunctions. Cleaning the terminals and ensuring a tight fit can often resolve these issues. Additionally, inspect the wires for signs of wear or damage, especially if the system is exposed to harsh weather conditions.

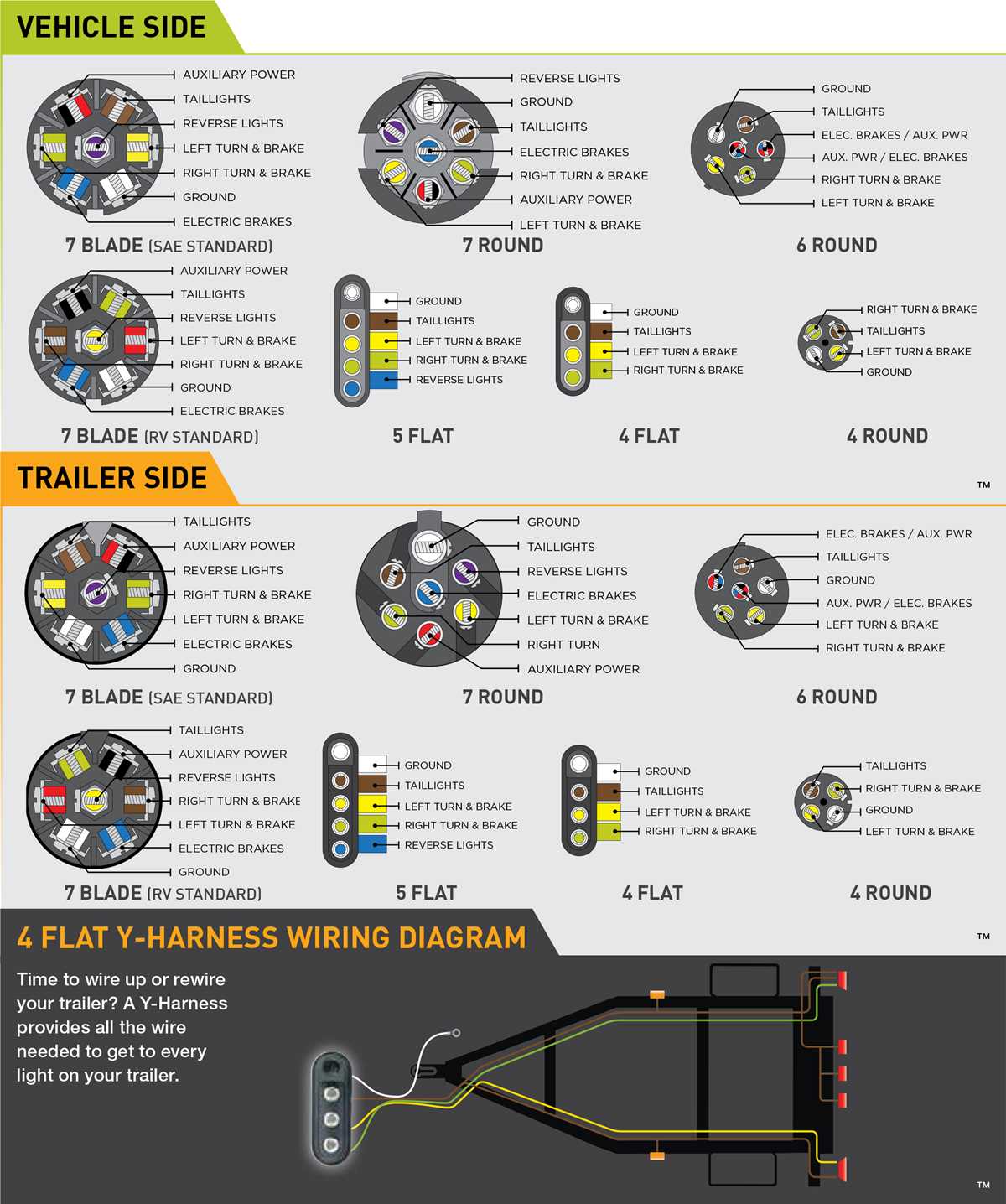

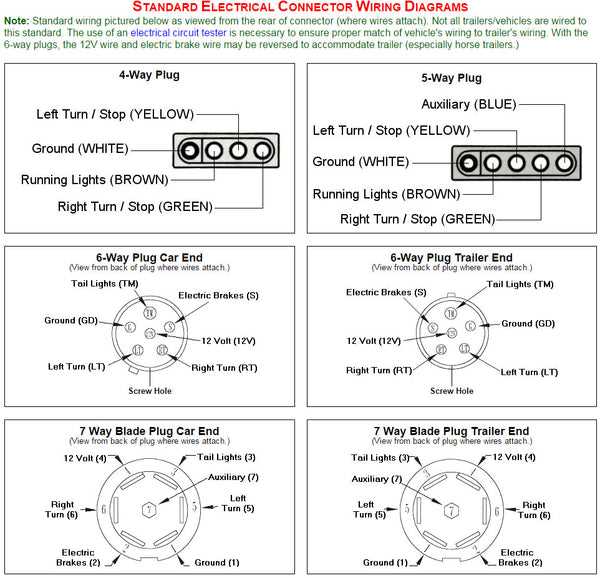

Understanding the Different Pin Configurations for Trailer Plugs
Each connector type uses a different number of pins, and each pin serves a specific function. The most common configuration for towing vehicles is the 7-pin connector, which supports brake lights, turn signals, tail lights, and a battery connection. Understanding the function of each pin is critical to ensure proper operation and safety.
4-Pin Connectors
The 4-pin connector is typically used for basic lighting functions. It is the simplest option, supporting only the tail lights, left and right turn signals, and ground connection. While not ideal for systems that require brake lights or auxiliary power, it can be sufficient for smaller trailers or basic towing needs. Always ensure the wires are securely connected to the appropriate terminals for reliable function.
5-Pin Connectors
A 5-pin connector adds one more pin, usually dedicated to providing power for the trailer’s electric brakes. This extra pin makes it a suitable choice for heavier loads where additional braking control is necessary. The fifth pin is typically reserved for the brake system, which allows the vehicle to communicate with the trailer’s brakes, ensuring smoother stopping power.
In a 5-pin setup, the extra pin configuration is crucial for safety when hauling heavier equipment, as it helps distribute braking force evenly across the vehicle and trailer. Without this connection, the trailer could become unstable during braking, potentially leading to dangerous situations.
The 5-pin configuration can also be used for auxiliary power, though this depends on the specific needs of the trailer. Some trailers may require more complex systems, so ensure your configuration matches the requirements of your setup.

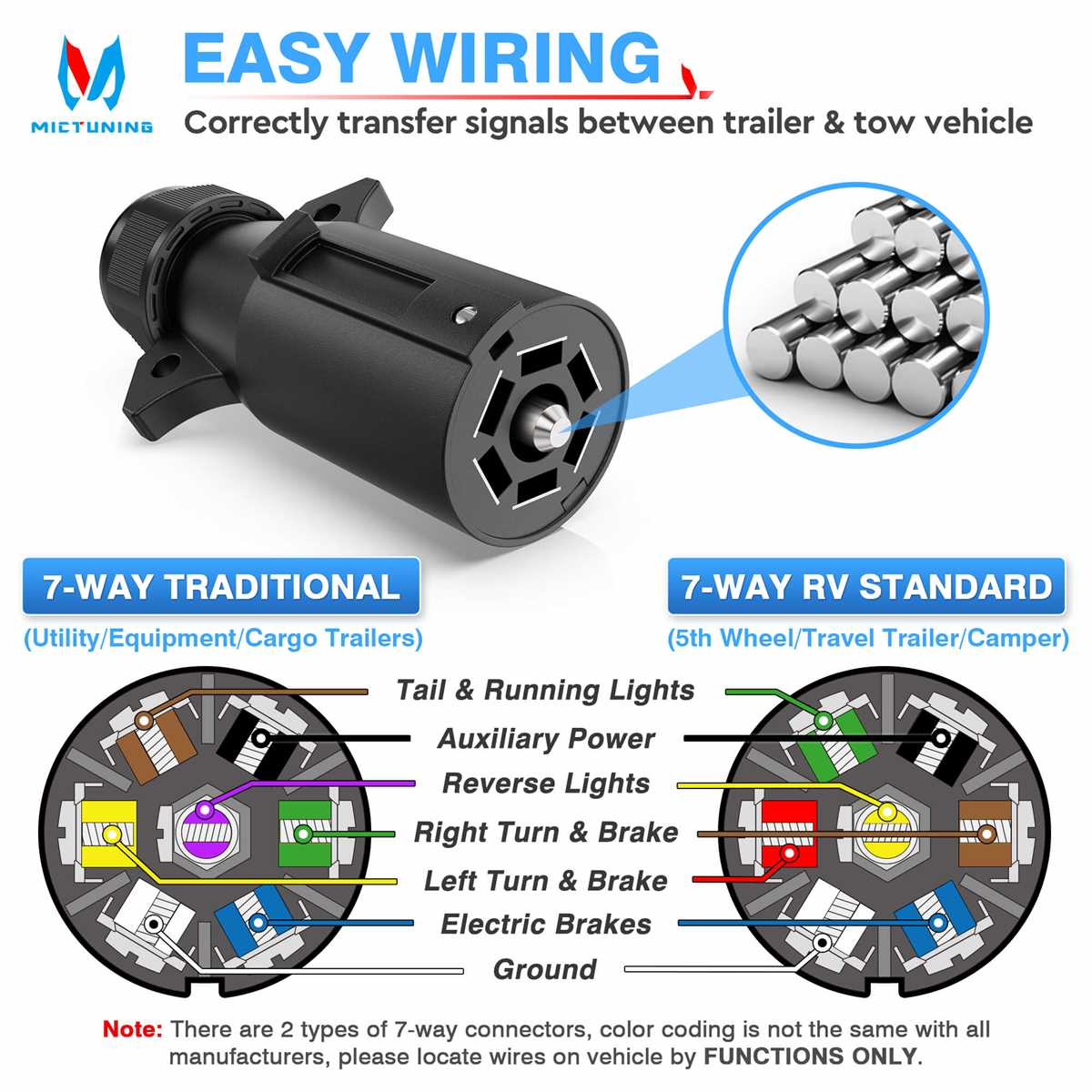

The 7-pin connector remains the most widely used, as it supports both lighting and braking systems, as well as additional features like a battery charge and auxiliary power for accessories like refrigerators or lights inside the trailer. This allows for greater flexibility and more control when towing larger loads with more power demands.
Each pin in the 7-pin connector has a distinct function, which makes it crucial to install and maintain it correctly. The wiring for a 7-pin system typically includes pins for ground, brake lights, left and right turn signals, tail lights, and separate pins for the battery and auxiliary power. This level of organization ensures that all systems can operate independently and safely.
For added convenience, many trailers use color-coded wires that correspond to each pin’s function. Familiarizing yourself with the color code will make the installation process faster and reduce the chances of making wiring errors. If you’re not familiar with the color codes, refer to the manufacturer’s guide for clarity on pin assignments.
