Ensure the electric actuators receive direct current from a fused source rated at 15 amperes for optimal stopping response. Route the positive lead through a dedicated switch near the operator’s seat, and attach the ground to a clean metal point on the frame. Avoid shared circuits to prevent voltage drops and intermittent operation.
For dual-circuit systems, separate the solenoid feed lines and mark them with color-coded shrink tubing: red for forward actuation, blue for reverse. Consistent labeling minimizes errors during maintenance and reduces the risk of short circuits when integrating auxiliary lighting or sensors.
Test the pull-rod controllers before securing them in the chassis. Attach connectors using crimp terminals rated for at least 16 AWG wire, and verify continuity with a multimeter. Loose connections can cause delayed engagement and uneven force distribution, compromising safety during sudden stops.
Consider routing the control cables along reinforced channels to protect against abrasion. Avoid sharp bends and proximity to heat sources such as exhaust manifolds. Insulating sleeves and tie-downs extend component life and maintain reliable performance under vibration and load cycles.
For systems incorporating feedback sensors, ensure signal wires remain separate from high-current feeds. Shielded wiring improves signal integrity and prevents false triggering of the hydraulic controllers. Consistent polarity must be maintained to avoid cross-activation and unnecessary wear on actuators.

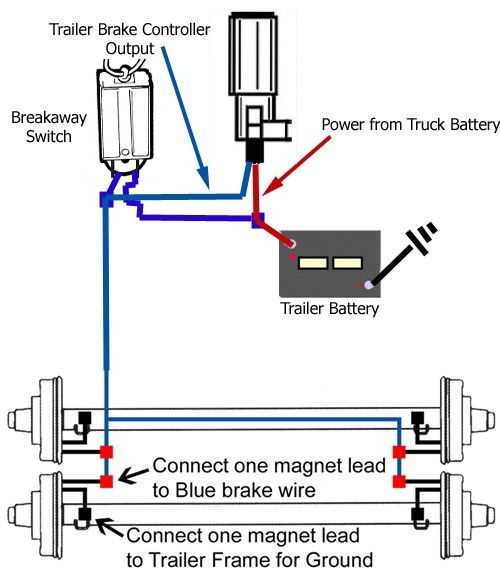

Trailer Brake Control Layout
Connect the actuator’s signal output directly to the solenoid terminals on each wheel hub assembly. Ensure each wire uses at least 14 AWG stranded copper for circuits under 10 feet, and 12 AWG for longer runs. Route the harness along the frame rails, avoiding sharp bends or heat sources, and secure with insulated clips every 12–18 inches.
Color coding simplifies identification:
- Blue – actuator command line
- White – ground return
- Green – right side stop signal
- Yellow – left side stop signal
- Red – battery feed with inline 15A fuse
Verify continuity before final assembly using a multimeter. Start at the actuator, check each connection at the junction blocks, and confirm voltage at solenoid terminals. Any resistance over 0.5 ohms may indicate loose connectors or corrosion, which can reduce response time and increase wear on mechanical pads.
Identifying Trailer Brake Wire Colors and Functions
Start by checking the connector’s color codes: green typically carries the power for the running lights, brown handles tail illumination, and yellow activates the stopping mechanism. Misidentifying these can cause short circuits or uneven braking response.
White wires generally serve as a grounding path. Ensure the metal contact is clean and free of corrosion, as poor grounding can prevent the entire electrical system from operating correctly, even if all other connections are accurate.
Blue circuits usually control auxiliary braking systems. Confirm that the gauge matches the manufacturer’s recommendation, because thinner wires can overheat under continuous load, leading to melted insulation or loss of function.
Red conductors are often used for left-turn signals, while black wires handle right-turn indicators. Testing each signal individually with a multimeter before connecting prevents miswiring and protects vehicle and trailer components from voltage spikes.
Verification Techniques
After connecting each lead, operate the lights and mechanical actuators one at a time. A circuit tester can detect weak continuity or cross-connections. Label each wire with durable tags for future maintenance; this reduces troubleshooting time and ensures consistent performance during seasonal use.
