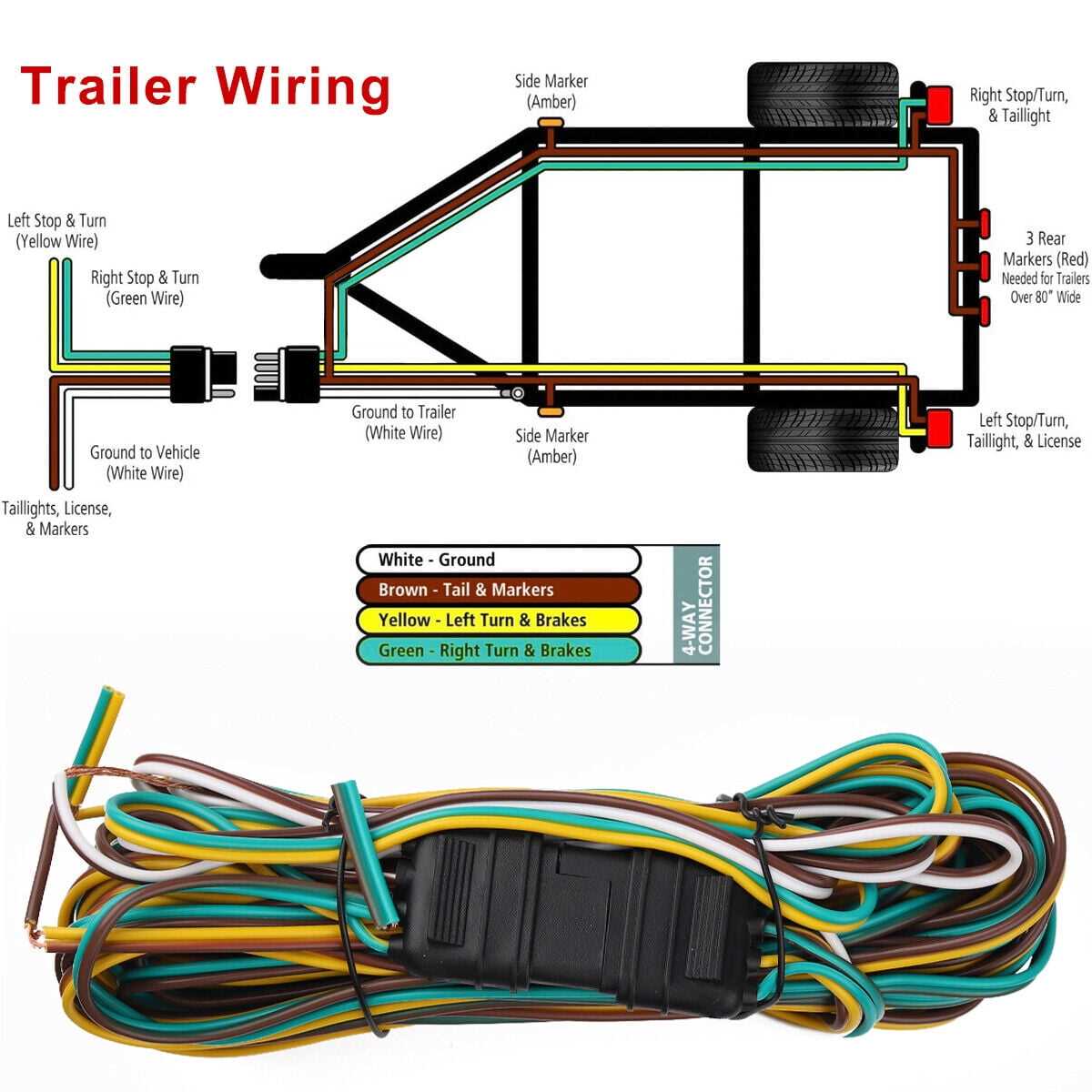

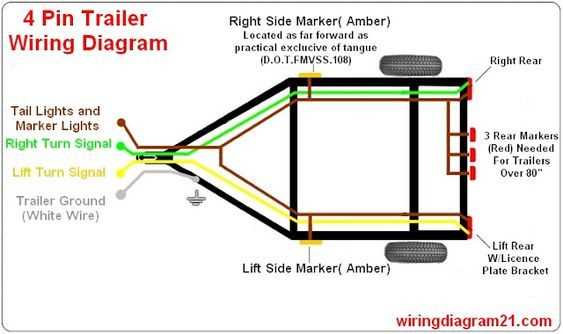

Connect the green lead to the right side indicator and brake assembly to ensure proper synchronization with the vehicle’s signaling. This connection allows the external assembly to reflect braking and turning actions without delay.
Attach the yellow conductor to the left side indicator and brake assembly to maintain accurate left-turn and stop signals. Verify continuity with a multimeter to prevent malfunction during travel.
Link the brown lead to the running and tail lamps for consistent illumination during nighttime or low-light conditions. Ensure the terminals are corrosion-free to maintain steady brightness and avoid flickering.
Connect the white conductor to the grounding point near the chassis or frame. A secure ground prevents shorts, stabilizes current flow, and protects both vehicle and trailer electronics from damage.
Test each connection with a dedicated tester before hitting the road. Activate signals, brakes, and running lamps individually to confirm correct operation, avoiding potential hazards and roadside failures.
4 Conductor Connector Installation Guide
Attach the green lead to the right side signal and brake assembly to ensure accurate turn and stop indicators. Verify that the connector is firmly seated and that metal contacts are clean to prevent intermittent operation.
Secure the yellow conductor to the left side signal and brake assembly while confirming continuity with a tester. Connect the brown lead to the running lamps for consistent illumination, and attach the white lead to a reliable grounding point on the frame. Test all functions individually to confirm proper synchronization before travel.
Identifying Each Conductor and Its Role
Connect the green strand to the right side turn and brake assembly to ensure the proper activation of indicators during signaling. Confirm that the connection is tight and that metal contacts are free of corrosion to prevent signal failure.
Attach the yellow strand to the left side turn and brake assembly and verify continuity with a tester. This ensures that left-side indicators respond correctly when braking or signaling a turn.
The brown strand controls the running lamps and must be connected to the frame-mounted lighting sockets. Ensure the lamp filaments are intact before securing the conductor to prevent uneven illumination.
Establishing a Reliable Ground Connection
The white strand should be connected to a solid grounding point on the chassis. A poor ground can cause flickering or non-functional lights, so test resistance with a multimeter to verify a secure connection.
Testing and Verifying Functionality
After all connections are secured, test each function individually–right turn, left turn, brake, and running lamps. Make adjustments immediately if any signal fails to respond as expected to ensure safe operation on the road.
