For proper engine control, ensuring correct connections for the throttle position sensor is critical. Start by identifying the power, ground, and signal terminals on the component itself. Usually, these are marked clearly, but double-check with the vehicle’s service manual to avoid confusion.
Before making any adjustments, it’s vital to inspect the connectors for wear or corrosion. Faulty connections often lead to poor engine performance, including erratic idling or throttle response. A multimeter is the best tool for verifying that the voltage at the sensor terminals is within the manufacturer’s recommended range.
Once the wiring is confirmed to be in good condition, ensure that each wire is securely attached. Loose or frayed wires can cause intermittent issues that are difficult to diagnose. After installation, clear any error codes from the engine control module (ECM) and test the vehicle under normal driving conditions to confirm proper function.
TPS Sensor Wiring Overview
First, confirm the power and ground terminals of the component, which are critical for its proper operation. Typically, the power terminal receives a constant voltage of 5V from the vehicle’s electronic control unit (ECU), while the ground terminal is connected to the vehicle’s main ground. These terminals must be checked for continuity to ensure there are no breaks or resistance in the connections.
Next, focus on the signal wire, which sends voltage changes corresponding to the throttle position. This wire usually runs from the component to the ECU. If the signal voltage is not within the expected range, it could indicate an issue with the wiring or the throttle position mechanism itself. Always double-check connections and inspect for any signs of wear or corrosion that could interfere with data transmission.
How to Identify TPS Sensor Wires and Pinout Connections

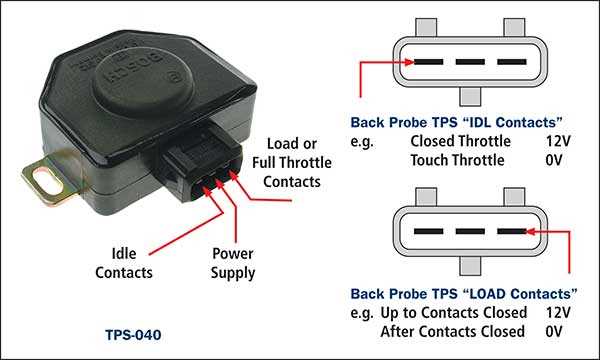

To correctly identify the wiring for the throttle position component, start by locating the connector on the unit. Most connectors are three-pin, with each pin serving a specific purpose: power, ground, and signal. Refer to the vehicle’s service manual for the exact pinout configuration as it can vary between models. Typically, one pin will provide a steady 5V from the vehicle’s ECU, the second pin serves as ground, and the third pin sends the signal to the ECU indicating the throttle’s position.
Use a multimeter to check for continuity between each wire and the corresponding terminal. Start by measuring the voltage on the power pin; it should show a consistent 5V when the ignition is on. If you do not get a steady reading, the wiring might be damaged or there could be an issue with the power supply. Next, check the ground pin for continuity to ensure the sensor is properly grounded to the vehicle’s chassis.
After confirming power and ground connections, focus on the signal pin. This pin outputs a variable voltage that changes in proportion to the throttle’s movement. To verify its function, connect the multimeter to the signal wire and monitor the voltage as you open and close the throttle. You should see a gradual increase in voltage as the throttle opens and a decrease as it closes.
If you are unable to obtain the correct readings from any of the pins, check the connector and wiring for corrosion or damage. Broken or frayed wires can result in intermittent signal loss, causing erratic engine performance. Additionally, cleaning the contacts and re-securing loose connections often resolves minor issues, improving the accuracy of the voltage signal transmitted to the ECU.
