Match each lead to its designated terminal using the connector labels and color codes to prevent incorrect voltage signals. Accurate alignment of power, ground, and output lines ensures reliable readings during operation.
Check reference voltage and continuity before full installation. The primary power line should supply a stable 5 volts, while the ground path must show minimal resistance. This prevents signal errors and avoids damage to the control module.
Measure the output across the entire pedal travel to confirm a smooth and linear voltage increase from idle to wide open. Any abrupt jumps or drops indicate misalignment, faulty components, or connector issues.
Document wire colors and pin assignments for future reference. Mark any variations from standard layouts to simplify troubleshooting, replacements, and upgrades without confusion or misconnection.
Secure all connections and protect exposed terminals using insulating sleeves or heat shrink. Proper mounting prevents vibration-related disconnections and ensures consistent signal transmission under driving conditions.
Complete Guide to Pedal Control Connections and Pin Assignments
Verify each lead matches the correct terminal using connector labels and color codes to maintain signal accuracy. The primary power line must deliver a steady 5 volts, the ground should show minimal resistance, and the output line should vary linearly with pedal movement. Misalignment or swapped pins can cause erratic readings or trigger error codes in the engine control module.
- Document pin assignments and wire colors to simplify future maintenance or replacements.
- Check continuity and voltage response before mounting the assembly.
- Use insulating sleeves or heat shrink on exposed terminals to prevent shorts.
- Secure the connector to avoid vibration-related disconnections.
- Test the output across full pedal range to ensure smooth and consistent signal transition from idle to full acceleration.

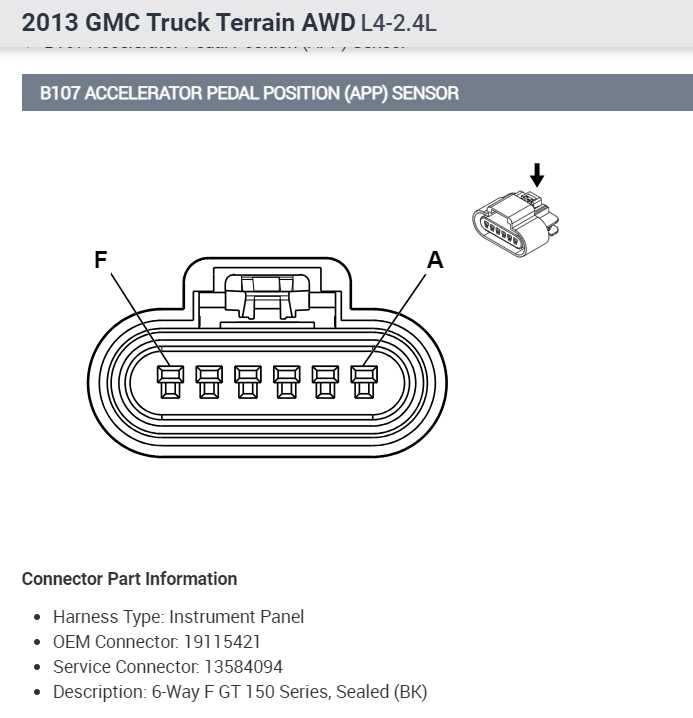

Identifying Connector Pins and Signal Wires
Start by labeling each lead according to the connector markings and color coding before making any connections. The main supply wire should read a steady 5 volts when ignition is on, while the ground line should show minimal resistance. Verify the output line fluctuates smoothly with pedal movement to confirm correct pin assignment.
Use a multimeter to trace each conductor and record its function. Typical layouts include a power feed, signal return, and a secondary reference line. Incorrect identification can cause false readings and trigger fault codes in the engine management system.
- Check for continuity between connector terminals to detect broken or corroded wires.
- Note wire insulation colors to simplify future repairs.
- Ensure pins are fully seated to maintain stable electrical contact.
- Use dielectric grease to prevent moisture-related shorts.
Confirm signal integrity under load by gently moving the pedal and observing voltage changes. The output should increase linearly from idle to full throttle with no sudden jumps or drops.
Document your findings with photos and labeled notes. Keeping a reference of connector pin locations and corresponding wire functions reduces diagnostic time and helps avoid damage during maintenance or component replacement.
