When configuring a high voltage distribution system, it is critical to ensure that the connections are correct to maintain stability and safety. The first step is to choose the right setup type, as it determines how the conductors are linked and how power will be distributed across the system. Choose the type of core depending on the application–whether you need to step up or step down voltage levels efficiently.
After selecting the type, focus on correctly identifying the connections. Pay particular attention to the input and output terminals. Correctly wiring the system involves ensuring that the sequence of connections follows the standard color code and operational instructions to prevent short circuits and overloads. Use high-quality cables and connectors rated for the required load to prevent overheating.
Lastly, make sure the system is properly grounded. Grounding ensures that in case of a fault, the current will safely dissipate into the earth, reducing the risk of electric shock or fire hazards. Double-check all connections with a multimeter before energizing the system to avoid potential errors that could damage equipment or create hazards.
Setting Up a High Voltage Power System
Start by selecting the correct input configuration to determine voltage regulation. If stepping down the voltage, a star connection should be used for balancing loads, while a delta connection is ideal for maintaining higher output currents. The wiring must follow the voltage ratings closely to prevent overloading, and each connection point must be clearly marked to ensure safe installation.
Next, ensure the connections between the windings are configured to match the desired current flow. Always check for proper polarity across all conductors to avoid phase inversion. Make sure that each lead is securely attached, and use insulated connectors to prevent accidental shorts or leaks. For higher power systems, use connectors rated for high amperage to ensure longevity and stability of the setup.
Proper grounding is crucial for the safety of the system. Make sure to connect a solid grounding conductor from the system to the earth, ensuring it can safely handle fault currents without compromising the system’s performance. Use a ground resistance tester to check the integrity of your grounding system and ensure it meets the required safety standards before activating the setup.
After completing the initial setup, test the system using a multimeter to verify output voltages and current. If the values match the required specifications, then proceed with installing any necessary protection devices such as fuses or circuit breakers. Make sure these devices are rated appropriately for the system’s capacity to prevent damage during any overload or short-circuit conditions.
Selecting the Correct Power Conversion Unit for Your Setup

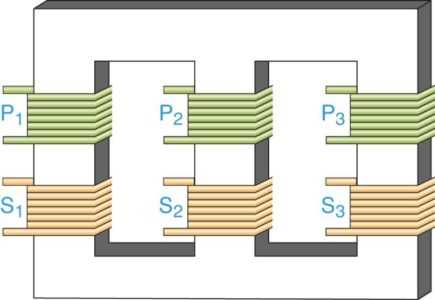

For a reliable system, choose a core type based on your voltage and current requirements. If you need to step up voltage for transmission over long distances, opt for a unit with a high-voltage, low-current primary and a low-voltage, high-current secondary. If the goal is to step down voltage for local distribution, select the opposite configuration. Be sure the core material is rated for the intended load, such as silicon steel for general use or amorphous steel for low-loss applications.

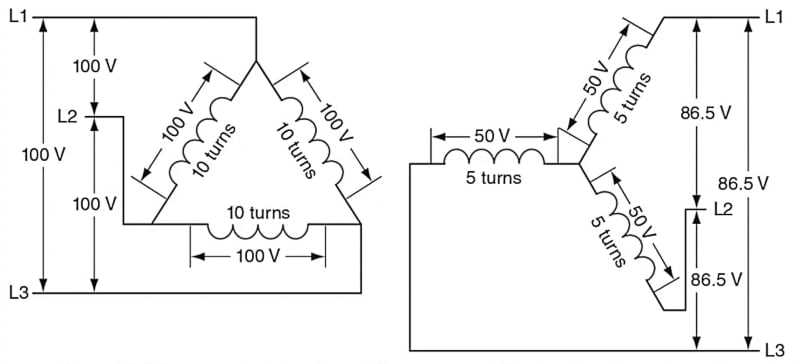

Choosing Between Star and Delta Configurations
Consider the connection type depending on the application. If you require a neutral for balancing load and safety, use a star configuration. This setup is ideal for supplying power to devices that need a stable voltage, especially for long-distance transmission. If you do not require a neutral and need higher efficiency in power distribution, use a delta configuration. This will allow the system to handle high power without the need for a neutral wire, optimizing efficiency in industrial settings.
