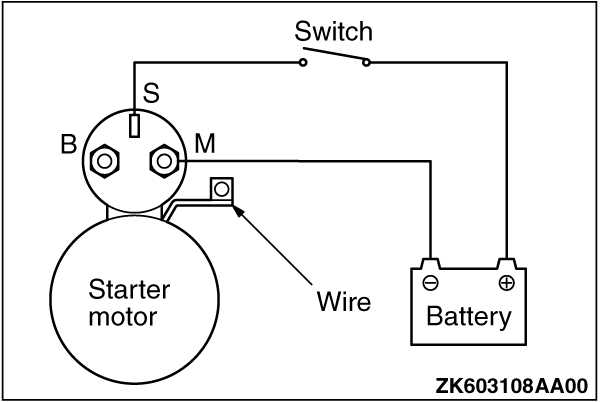

Begin by identifying the key components involved in the engine starting process. The power source, relay, solenoid, and connections to the battery are all vital. The relay acts as a switch to activate the solenoid, which then engages the gear mechanism. Each part must be connected properly to ensure the system operates smoothly when ignition occurs. Refer to the circuit map for precise locations and component layout.
Ensure that the connections are made with the correct polarity. The positive terminal from the battery must be linked to the appropriate components, while the ground connections should be routed to the designated return paths. Failure to connect the terminals in the correct order can lead to system malfunctions, including failure to start the engine or damaging sensitive parts.
Check for common issues such as loose connections, frayed wires, or faulty relays that can prevent proper engagement. Testing the circuit with a multimeter can help identify voltage drops or disruptions in the current flow. If the system is not functioning as expected, tracing the path from the power source to the ignition switch and solenoid can help pinpoint the issue.
Identifying Key Components in the Starter Motor Wiring
First, locate the power supply connections. The positive terminal from the battery provides the necessary voltage to initiate the starting process. Ensure that the battery’s positive cable is properly connected to the relay and solenoid. The negative terminal connects to the vehicle’s frame or a designated ground point, completing the circuit and ensuring that current can flow freely.
The relay is the next critical component. It acts as a switch that controls the flow of electricity from the battery to the solenoid and the ignition system. The relay typically has four terminals: one for the power input, one for the output to the solenoid, and the two others for control signals. It is important to verify that the relay is functioning properly, as a faulty relay can prevent the system from working.

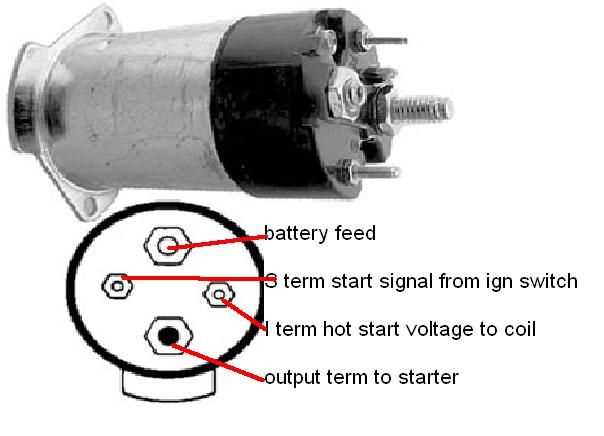

The solenoid plays a key role in engaging the starter mechanism. It is responsible for pushing the starter gear into position to engage with the engine flywheel. The solenoid receives power from the relay and uses that energy to activate the gear drive. Check for proper connections from the relay to the solenoid and ensure the solenoid’s terminals are free of corrosion or wear that could impair its function.
Examine the ignition switch and its connections. The ignition switch sends a signal to the relay to activate the starting process. A faulty or loose connection here can prevent the system from starting. Make sure that the ignition switch is securely wired and that all connectors are clean and properly connected to prevent issues with the starting process.
Lastly, ensure all ground connections are secure. Grounding is vital for completing the circuit and providing a return path for the current. Without a proper ground, the system will fail to function. Inspect the ground wire for continuity and ensure it is tightly secured to the chassis or engine block, as loose or corroded grounds can lead to electrical malfunctions.
Step-by-Step Guide to Connecting the Starter Motor
Begin by disconnecting the battery to ensure safety before working on any electrical components. Disconnect the negative terminal first, followed by the positive. This will prevent accidental short circuits while connecting or handling any parts of the starting system.
Next, locate and secure the relay connections. The relay controls the flow of electricity from the battery to the ignition system. Attach the positive terminal from the battery to the input terminal of the relay. Ensure the relay is securely mounted and that all terminals are clean and free from corrosion, which can hinder electrical conductivity.
Connect the solenoid to the relay using the appropriate wire. The solenoid receives power from the relay to engage the gear mechanism. Attach the wire from the relay to the solenoid, ensuring it is tightly secured and that the solenoid is properly mounted to avoid any movement that could lead to loose connections.
Attach the ignition switch wire to the relay. This wire is responsible for sending a signal to the relay when the ignition is turned on. Ensure that the ignition wire is properly insulated and securely connected to the relay’s control terminal. A loose or poorly connected ignition wire could prevent the system from activating properly.
Finally, connect the ground wire to the engine block or chassis. The ground wire is critical for completing the electrical path, so ensure it is tightly secured and free from any corrosion. Once all connections are made, double-check each one for tightness and proper placement before reconnecting the battery and testing the system.
