Before you begin working on electrical connections for your system, it’s important to understand the key components inside the panel. Each terminal serves a specific purpose, and knowing how to correctly assign wires is critical for safety and functionality. The terminals are generally organized in rows, with clear indications for where each wire should be placed. Always follow the recommended sequence and never mix up power wires with ground connections. This can prevent short circuits or other dangerous electrical issues.
When setting up your electrical connections, focus on matching the wire types to the proper terminals. Red, black, and white wires each have their designated places for the most reliable setup. Additionally, ensure the grounding is performed according to local codes to avoid any risk of electrical shock. Make sure you use high-quality connectors and never bypass safety measures like circuit breakers and fuses, which protect the system from overloads and surges.
Keep in mind that every component in the electrical setup plays a role in the smooth functioning of your system. Incorrect installations can lead to malfunction, or worse, a fire hazard. It’s always best to double-check the current ratings of the system to match the breaker size to the load requirements. This step prevents unnecessary trips and keeps everything running within safe limits.
Square D Electrical Panel Setup Instructions
Ensure that you use the correct gauge wire for each terminal connection. For standard residential setups, 12 AWG wire is commonly used for 20-amp circuits, while 14 AWG is suitable for 15-amp circuits. Check the panel’s specifications and match the wire size with the appropriate breakers. Incorrect wire gauge can lead to overheating, which increases the risk of electrical fires. Always verify that each connection is tight and free from corrosion to maintain proper contact and avoid power loss.
The grounding wire is critical for safety. When installing, connect the ground wire securely to the panel’s ground bar. This will direct any stray electrical current safely to the earth in the event of a fault. Ensure that the grounding conductor is properly sized to handle the expected load. Inadequate grounding can result in shock hazards or damage to electrical devices.
Next, organize the connections systematically. Keep the hot and neutral wires separate and ensure that the hot wires are connected to the appropriate bus bars, usually located on the top or sides of the panel. Neutral wires should be routed to the neutral bus bar. Never let hot and neutral wires touch or be loosely connected, as this can lead to a dangerous short circuit.
After completing the setup, double-check the tightness of all connections before powering on the system. The circuit breakers should be in the “off” position during installation. Once the system is correctly wired, turn on each breaker one by one, checking for any signs of overheating or tripping. If a breaker trips immediately after being turned on, it may indicate an issue with the circuit, such as a short or an overload, and you should troubleshoot accordingly.

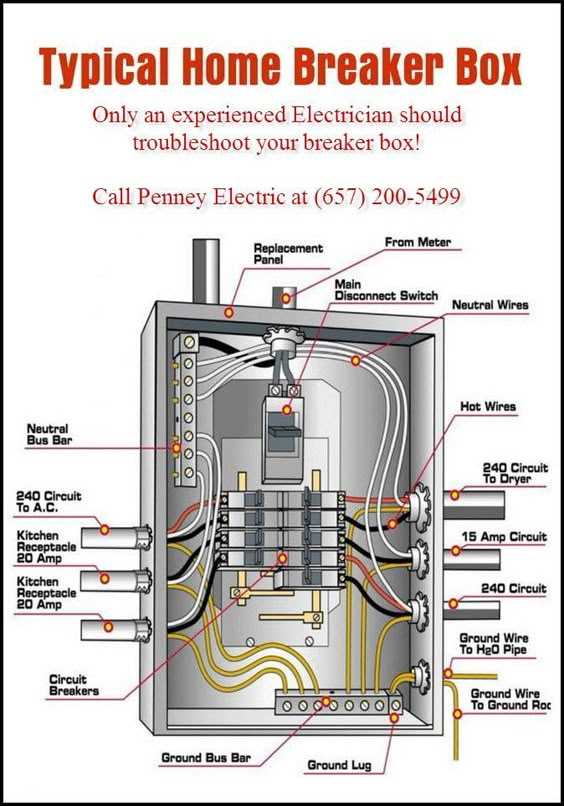

Identifying and Understanding the Terminals in a Square D Electrical Panel

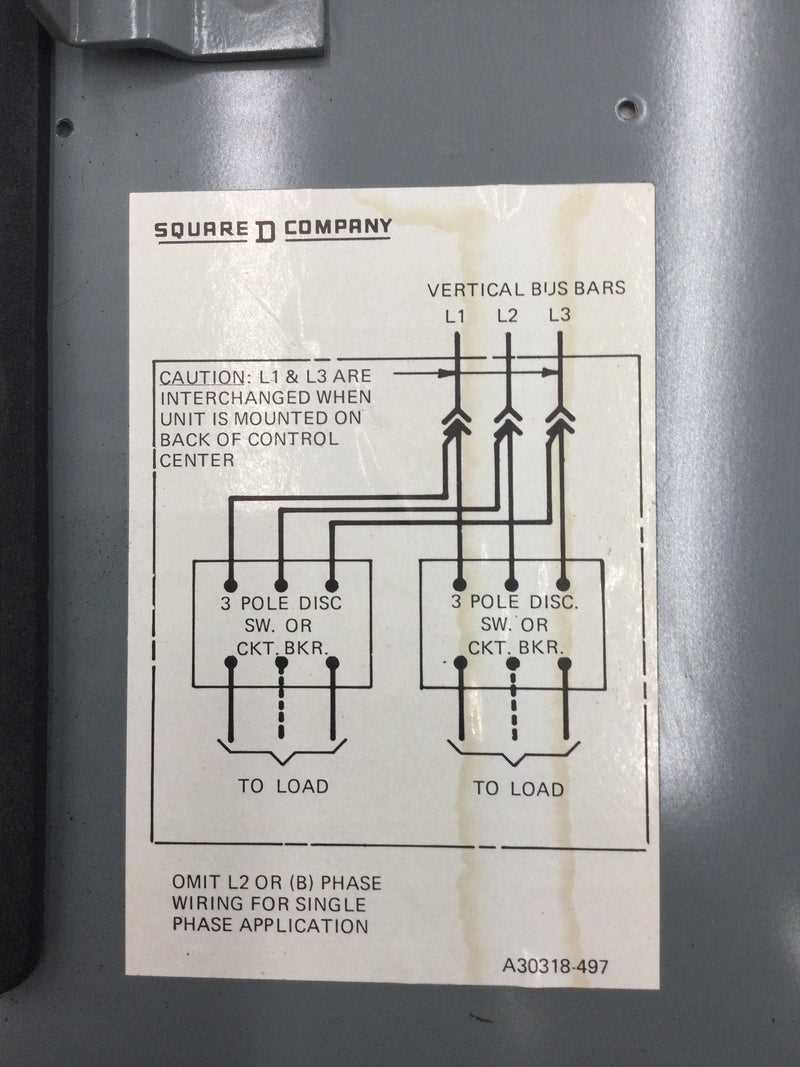

Start by locating the main power terminals, typically at the top of the panel. These terminals receive incoming electrical supply from the utility company or generator. The large copper or aluminum bar at this position is used for connection to the service line. Ensure that the incoming line wires are securely connected here, with the appropriate wire size as per the panel’s specifications. Tighten each connection properly to avoid any loose contacts that could cause overheating.
The neutral terminal bar is located near the center or lower section of the panel. It is where all neutral wires from the circuits are connected. This bar is typically connected to the ground, providing a safe path for electrical return. Make sure that the neutral wire is tightly secured, and no live or ground wires are mistakenly connected to this terminal.
The ground bar is another important terminal to identify. It serves as the point for connecting the ground wire, which is an important safety feature. The ground bar is typically attached directly to the panel’s metal casing. The ground wire should be connected securely to prevent electrical shock hazards. Always check that the connection is firm, as a loose ground can lead to severe electrical issues.
Each circuit’s individual terminal connects to the respective breakers within the panel. These terminals are where the hot wires from your circuits are connected. Ensure that each hot wire is connected to its corresponding terminal on the breaker, and the breaker is firmly seated in the panel’s bus bar. Make sure the breakers are correctly positioned and locked in place, with no exposed wiring.
Finally, always double-check all terminal connections before powering the system. Loose terminals or improperly connected wires can lead to short circuits, electrical fires, or equipment damage. Use a voltage tester to confirm that each terminal is properly energized and that no connections are faulty. Always follow the manufacturer’s guidelines for the correct connection and sizing to ensure both safety and functionality.
