Ensure correct lead placement on each cylinder to prevent misfires and uneven performance. Begin by aligning the distributor cap terminals with the corresponding engine ports following the firing order of 1-8-4-3-6-5-7-2. Accurate sequencing maximizes combustion efficiency and avoids engine hesitation under load.
Use high-quality conductors with proper insulation to maintain consistent voltage delivery. Avoid worn or cracked lines, as weak connections can produce backfiring or difficulty starting. Maintaining clean contact points at both the coil and engine sides ensures reliable ignition pulses throughout the operating range.
Labeling each connection during maintenance simplifies future servicing. Create a simple chart matching each terminal to its respective cylinder and verify alignment after reinstalling the distributor cap. Regular inspection reduces the risk of misrouting and preserves engine longevity while supporting smooth acceleration and optimal fuel burn.
Connection Guide for Chevy 350 Engines

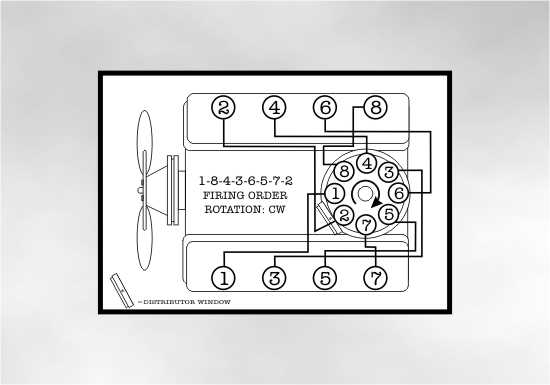

Begin by matching each ignition lead to its corresponding terminal on the distributor cap. Number cylinders from the front of the engine as 1 through 8, with odd numbers on the driver side and even numbers on the passenger side. Follow the firing sequence 1-8-4-3-6-5-7-2 to ensure proper timing and engine performance.
Check that each cable is firmly seated on both the coil and the engine head sockets. Avoid crossing wires, which can lead to misfires or rough idling. Using a dielectric grease on the terminal ends improves conductivity and prevents corrosion over time, especially in high-temperature conditions common in these engines.
Regularly inspect connections for wear, cracks, or heat damage. Replace any brittle leads and confirm that routing keeps wires away from exhaust manifolds and moving parts. Correct alignment preserves engine efficiency and prevents potential ignition failures, maintaining smooth operation under various driving conditions.
Identifying Correct Leads and Firing Sequence
Begin by labeling each conductor according to cylinder position. For this engine, cylinders are numbered 1 through 8, starting at the front passenger side and moving sequentially along the block. Accurate labeling prevents misfires and uneven performance.
Use a tester or continuity meter to confirm each connection. Trace the path from distributor cap terminals to cylinder heads. This step ensures that each lead matches the intended terminal without cross-connections that could disrupt timing.
The firing sequence follows 1-8-4-3-6-5-7-2. Arrange conductors so that the rotor contacts correspond with this order. Misalignment can result in engine knocking, hesitation, or failure to start.
- Inspect conductor insulation for cracks or wear.
- Check terminal ends for corrosion or carbon buildup.
- Verify secure attachment at both distributor and cylinder ends.
Once the leads are correctly positioned, rotate the crankshaft manually to observe firing consistency. Any irregularity indicates a misplaced conductor. Adjust connections gradually until each cylinder receives proper spark timing, ensuring smooth operation and optimal combustion efficiency.
