Start by ensuring that you are using the correct type of connector for your cabling needs. Use a connector compatible with high-speed data transfer, especially if you are working with internet or media setups. Ensure you have all necessary tools, such as a punch-down tool, stripper, and crimping tool, to complete the installation without issues.
When preparing the space for installation, ensure that the cable is routed neatly and is not under tension. Proper cable management prevents physical damage and reduces the chances of signal interference. You should leave enough slack in the cable to easily connect the terminals without straining any connections.
Follow the correct order of color-coding when making connections to prevent miswiring. Be sure to insert each wire into its corresponding slot and ensure a solid connection. Incorrectly connected cables can result in poor signal performance or total failure of the connection.
Finally, after installation, test each connection using a cable tester. This will ensure that the network will function as expected and that there are no issues with the setup. If you notice any irregularities, address them immediately to avoid future performance issues.
Socket Cat 6 Installation for Home Systems
Ensure the proper type of connector is selected based on the data transfer speeds you require. When working with high-speed internet or media networks, choose a connector rated for the required frequency and performance standards.
Properly strip the outer insulation of the cable, exposing the individual wires without damaging the copper strands inside. Keep the length of exposed wires consistent to prevent any misconnection or signal degradation.

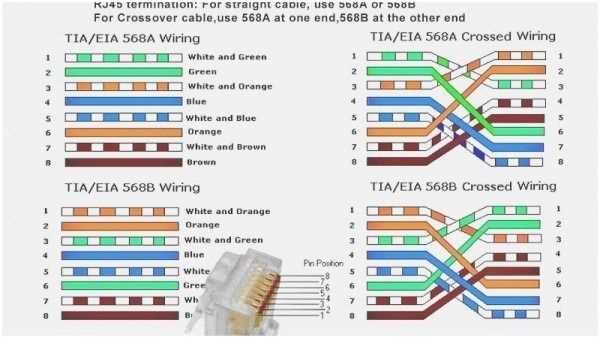

Follow the color code carefully for a correct and reliable setup. Typically, the wires are arranged according to the T568A or T568B standards. These standards dictate the correct order for placing the individual wires into the connector, ensuring efficient signal flow.

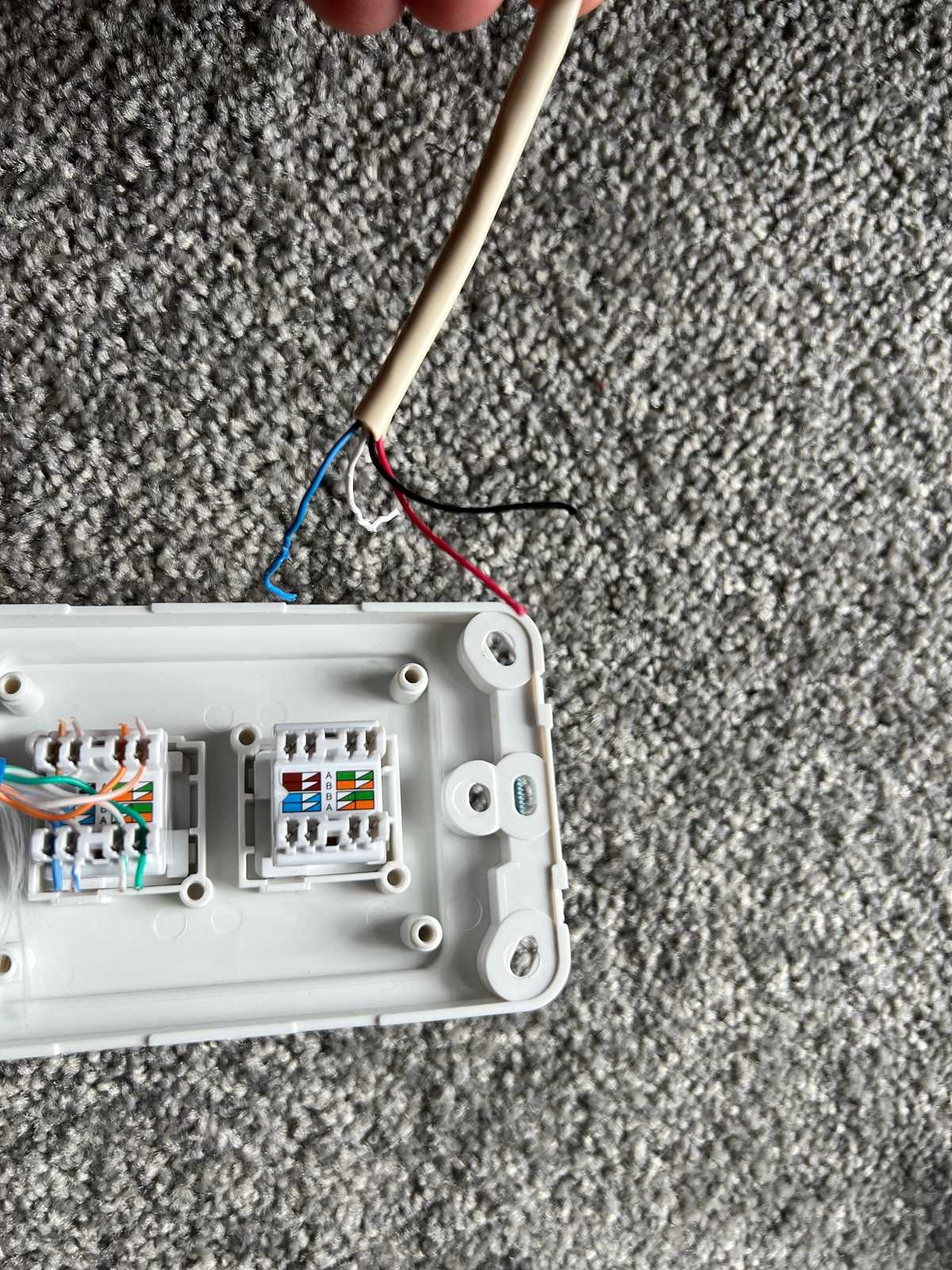

After inserting the wires into the connector, use a punch-down tool to secure them tightly in place. Verify that all the wires are fully seated, as loose connections can cause intermittent or complete failure of the connection.
Test the setup with a cable tester to confirm each connection is working correctly. If there are any issues, such as a faulty connection or incorrect wiring order, address them immediately to ensure proper network performance.
Preparing the Wall Plate for Cat 6 Socket Installation

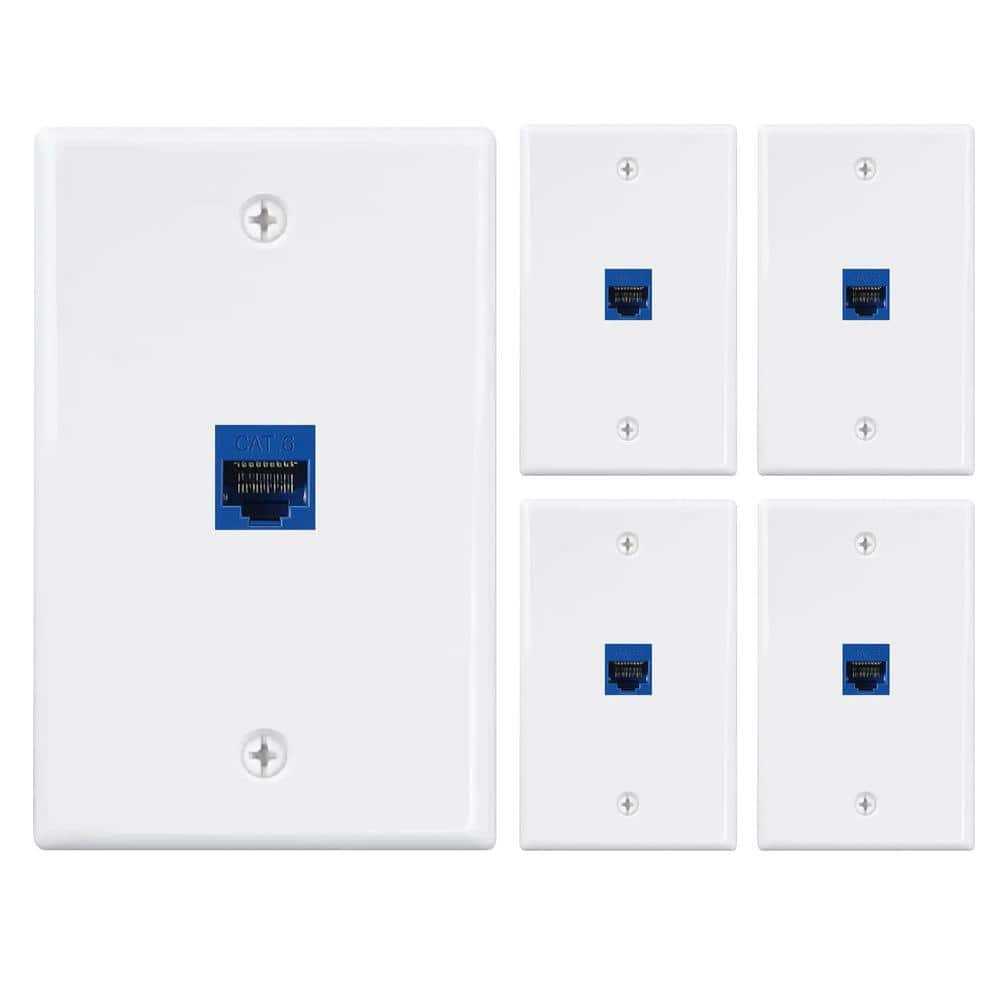

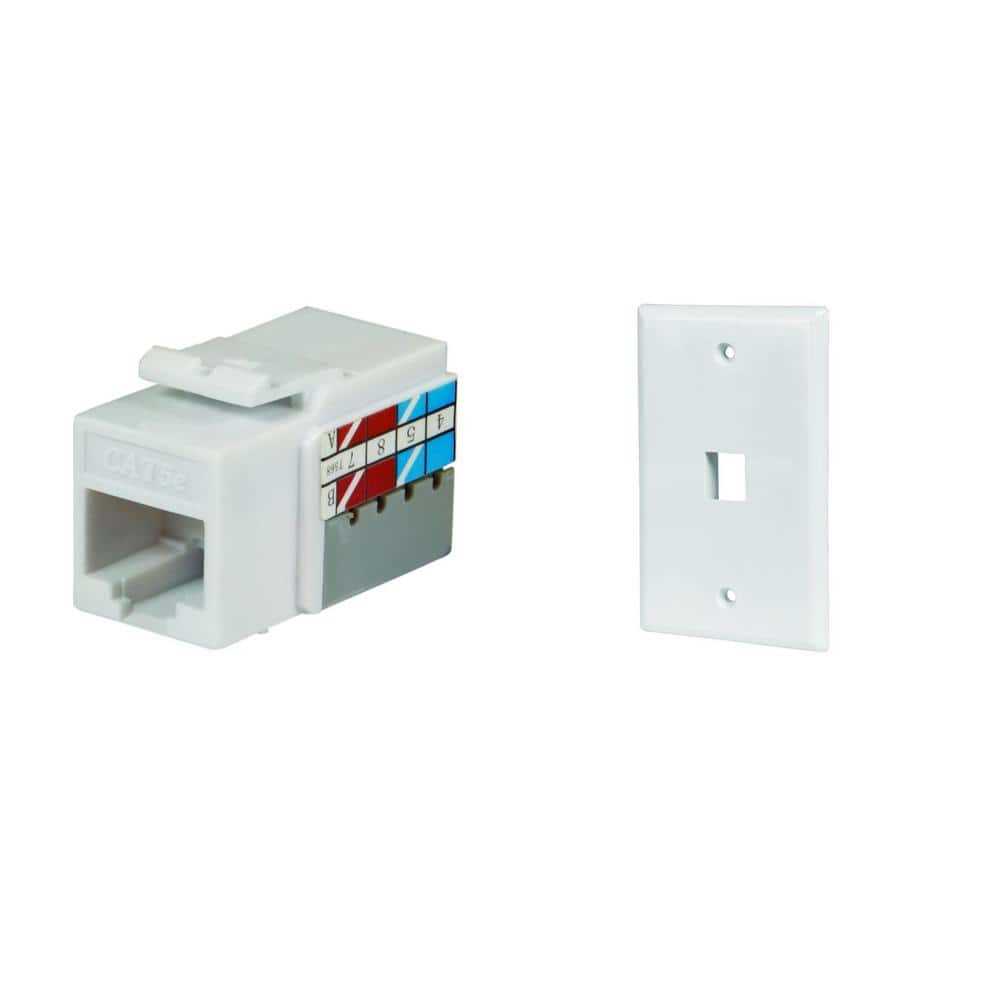

Begin by selecting a compatible faceplate that supports the required connector type. Make sure it aligns with the size and mounting standards for your specific setup. This ensures a secure fit and avoids unnecessary gaps after installation.
Carefully measure the position of the cutout on the surface where the faceplate will be mounted. The opening should be wide enough to accommodate the connector without forcing it into the hole, which could damage both the plate and the cable.
Before attaching the faceplate, ensure the cable is properly fed through the opening and the connector is fully seated. Test the connection by lightly tightening the mounting screws and verifying the alignment before securing everything in place to avoid future issues.
