Connect the main power supply first and ensure the positive and negative terminals are correctly matched to the battery posts. Incorrect polarity can damage fuses and accessories.
Label all leads with permanent markers or tape to distinguish navigation lights, cabin lights, and auxiliary circuits. Consistent labeling prevents misconnection during future maintenance.
Route cables along protective channels to avoid contact with moving parts or sharp edges. Use cable clamps to prevent vibration damage and ensure long-term reliability of all circuits.
Test each circuit individually after connecting power. Confirm that navigation lights, bilge pumps, and auxiliary outlets operate within expected voltage ranges before securing panels and covers.
Inspect terminals and connectors for corrosion and clean with contact cleaner before final assembly. This ensures low-resistance connections and prevents flickering or intermittent faults during operation.
Small Vessel Electrical Connections Guide

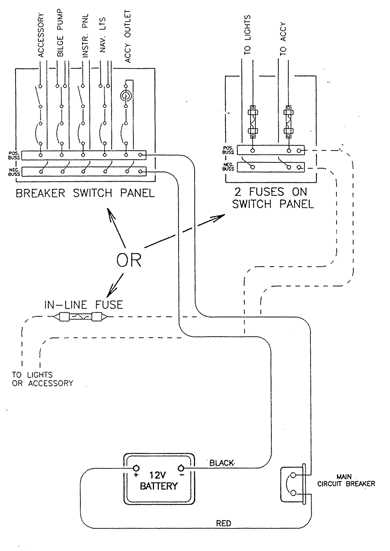

Secure the main power leads first by connecting the positive and negative terminals to the battery posts with corrosion-resistant hardware. Verify that all fuses and breakers are rated correctly for the load to prevent overloads.
Organize circuits for navigation and interior lighting. Use color-coded cables for easy identification: red for power, black for ground, and blue for auxiliary devices. Route cables along protected channels to avoid abrasion or contact with moving parts.
Test all circuits individually after connection. Confirm voltage at each terminal, verify operation of pumps, lights, and accessories, and check for flickering or intermittent connections before securing covers and panels.
Identifying Battery and Ground Connections on a Small Vessel

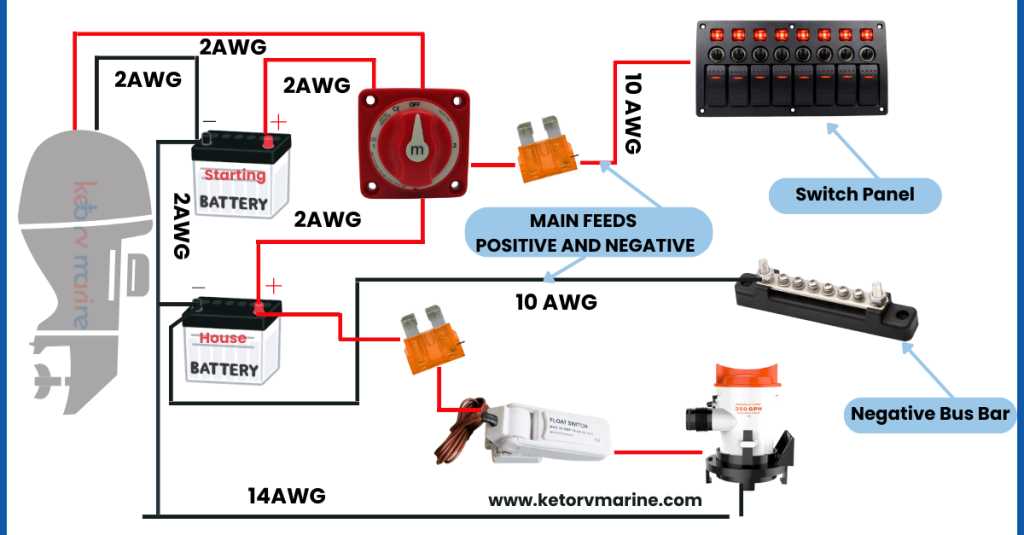

Connect the positive battery terminal first using a cable with the correct gauge for the total electrical load. Ensure that all lugs are clean and free from corrosion before tightening to avoid voltage drop or arcing.
Locate and label the negative ground point. Use a metal surface that is free of paint or oxidation, and secure the cable with a bolt or clamp rated for marine use. This ensures consistent grounding for all onboard circuits.
Follow a step-by-step connection sequence:
- Verify battery voltage and condition before connection
- Attach the positive lead to the main fuse or breaker
- Secure the negative lead to the designated grounding point
- Inspect all terminals for tightness and signs of wear
Test the system after connections by turning on lights, pumps, and auxiliary devices individually. Confirm that voltage remains stable at each terminal and check for any loose connections or unexpected resistance along the cables.
