Step by Step Guide for Wiring a Simple 3 Way Switch

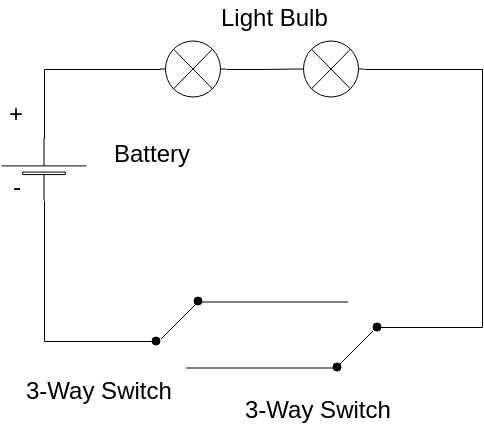

simple 3 way switch wiring diagram

Start by ensuring you have a clear understanding of the basic components needed for the installation. You’ll require two control units, a light fixture, and appropriate cables to connect the components. Double-check the power source voltage to ensure compatibility with your setup. A typical installation for this setup involves using a 120V or 240V circuit, depending on your region.

Next, make sure to properly route the cables, keeping in mind the desired control locations. You’ll connect the common terminal of the first unit to the power source, while the other terminals on both units are used to complete the circuit. The key is to use the traveler terminals correctly so that the system can be controlled from both locations. This allows you to switch the light on or off from either control unit.

After ensuring all connections are secure, it’s time to test the system. Flip the controls and verify that the light responds correctly to the changes in position. If the system doesn’t work as expected, recheck the connections to ensure they align with the correct terminals and confirm the wiring is in place.

3 Way Switch Installation Guide

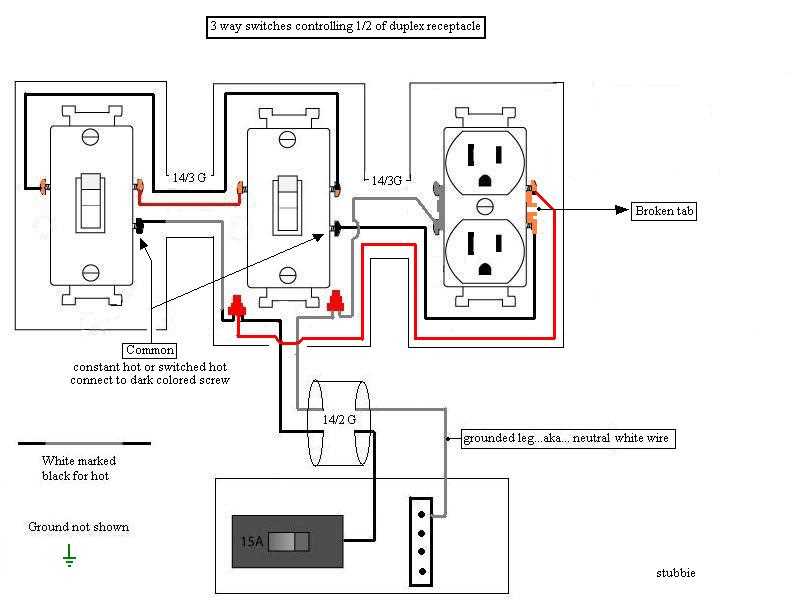

simple 3 way switch wiring diagram

To wire this setup, first connect the power supply to the common terminal on the primary unit. The traveler terminals should be connected to the two control units that allow you to alternate between positions. Ensure that the ground wire is properly connected to each unit and the power source to avoid potential short circuits or hazards.

Once all connections are secure, check the control wiring by testing both positions. The light should turn on or off depending on the control settings. If it does not, verify that the traveler wires are correctly placed between the units and that no loose connections are present. This setup allows you to control the light from either location with ease.

Understanding the Components for a 3 Way Switch Installation

simple 3 way switch wiring diagram

For this setup, you will need two control units, a power source, and a light fixture. The power source is usually connected to the first control unit, where it connects to the common terminal. Each control unit has traveler terminals that will connect to the second control unit, enabling you to control the light from two different locations. Be sure to check that each terminal is securely fastened and that the connections are properly insulated.

The ground wire must be properly connected to the power source, the light fixture, and each of the control units to prevent any electrical hazards. Additionally, make sure to use the correct gauge wire for your specific circuit to handle the power load safely. A typical installation involves 14/3 or 12/3 gauge wire, depending on the power rating. Testing the connections before securing everything in place will ensure the system works properly and safely.
