Start by connecting the power cable to the primary power source, ensuring that the connection is secure and insulated. The positive wire should be attached to the 12V constant power terminal, while the ground wire must be connected to a clean, metal part of the vehicle frame to ensure proper grounding.
Next, route the wires for the lights, ensuring each connection is correctly matched. For brake lights, use the designated wire for signal and brake functions, ensuring it connects to both the power and signal terminals on the vehicle. For running lights, the wiring must also connect to the correct terminal to avoid malfunctions.
Check the wiring regularly to ensure no exposed wires are in contact with other surfaces. This can prevent electrical short circuits or system failure. Also, use durable connectors that are weatherproof to protect the system from corrosion and damage over time.
After all the connections are made, test the system by turning on the vehicle and checking the functionality of the lights and brakes. If any system components are not functioning properly, double-check the wiring connections and ensure no wires are loose or improperly attached.

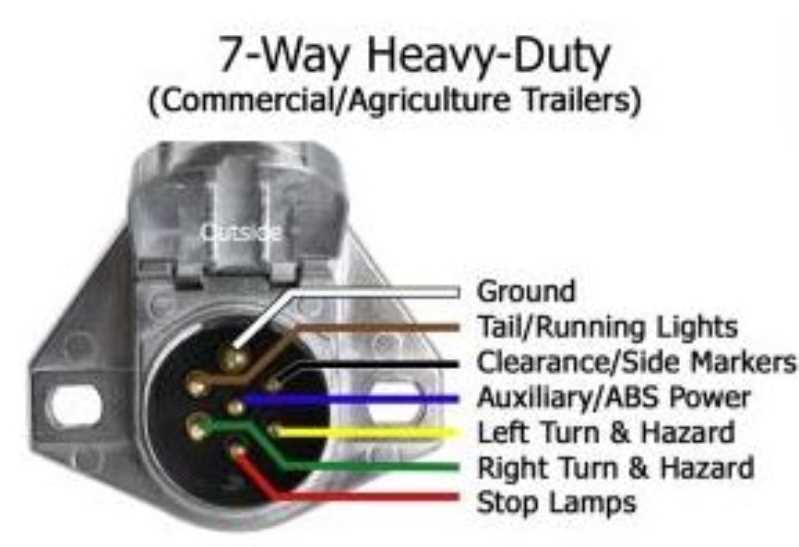

Semi Truck Trailer Wiring Guide
Start by properly connecting the 12V positive cable to the power source terminal. Use high-quality, insulated connectors to ensure secure, long-lasting connections. The ground wire must be attached to an unpainted metal surface of the vehicle’s frame for a reliable connection.
- Make sure all terminals are tightened and fully connected to avoid loose connections that can cause electrical issues.
- Double-check that wires are routed safely and away from any sharp edges or areas where they could be damaged.
After all connections are made, test the lights and signals. Turn on the vehicle and ensure the brake, turn, and running lights are working correctly. If any lights are malfunctioning, inspect the wiring for loose or broken connections and correct them immediately.
How to Wire the Electrical System for Trailer Lights
Start by selecting the correct cable gauge for the lighting system. Typically, a 14 or 16 AWG wire is suitable for connecting the lights. The positive (live) wire should be connected to the power supply, while the neutral wire should be routed through each light fixture in a parallel connection.
Ensure each light has its own dedicated connection point. For the brake and indicator lights, you will need to run separate wires from the vehicle’s control panel. These should be connected securely to the terminals of each light, with proper insulation to prevent shorts.
Connecting the Ground
For grounding, use a high-quality, insulated wire that’s securely attached to the vehicle’s metal frame. Grounding should always be done in a location that is free from corrosion and rust, to ensure the current flows properly and safely. Attach the ground wire to each fixture, ensuring the metal body of each light is in direct contact with the ground wire.
Testing the Lights
After making all the necessary connections, test the system to verify everything works correctly. Turn on the vehicle and check that each light functions as expected. The running lights, turn signals, and brake lights should all be working without any flickering or dimness. If any light fails to work, inspect the connections for any loose or broken wires.
Check all wire routes to ensure that no wires are exposed to sharp edges or areas where they might be damaged by movement or friction. Secure the cables using clips or ties to prevent them from rubbing against moving parts.
If you’re installing additional components such as reverse lights or side markers, ensure they are wired to their designated terminals and tested individually. Add a fuse or circuit breaker in the power supply line to protect the system from overloads or short circuits.
Once everything is connected and functional, perform a final check to ensure all connections are tight and properly insulated. Double-check that there are no exposed wires that could lead to electrical shorts or damage. Properly secure any loose wires to prevent wear and tear during use.
