Plan the circuit layout before installing any cable, marking the position of the ceiling light, wall switch, and outlet boxes along the wall line. A typical residential space uses one 120-volt branch circuit protected by a 15A or 20A breaker. Lighting fixtures usually connect through a switch loop, while receptacles are linked in sequence along the same branch line.
Use 14 AWG copper conductors for 15A circuits and 12 AWG copper for 20A circuits. The cable normally contains three conductors: hot (black), neutral (white), and equipment ground (bare or green). The hot conductor feeds the switch first, then returns to the ceiling fixture. Neutral runs directly from the panel to the light box and receptacles.
Outlet spacing also affects the circuit plan. Residential electrical codes typically require receptacles every 12 feet along the wall and within 6 feet of door openings. This placement prevents long extension cord runs and distributes load across the branch line. Each receptacle box should include at least 6 inches of free conductor length for secure termination.
Connections inside boxes use screw terminals rather than push-in contacts for stronger mechanical grip. Ground conductors must be bonded to metal boxes with a grounding screw and connected to device grounding terminals. A properly planned layout reduces overloaded receptacles, simplifies troubleshooting, and keeps cable routing organized behind wall surfaces.

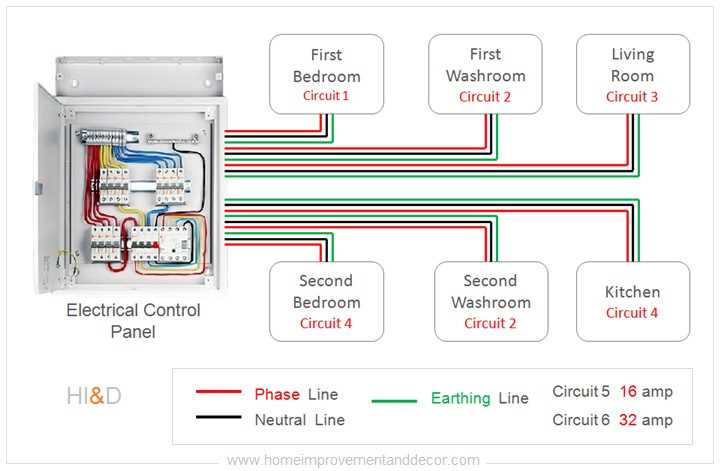

Room Wiring Diagram Layout With Switches Lights Outlets and Breaker Connections
Place the branch circuit breaker in the distribution panel and route the hot conductor first to the wall switch box, then to the ceiling luminaire. This path allows the switch to interrupt the live conductor rather than the neutral line. A typical lighting point uses a single-pole switch with two terminals, where the incoming hot connects to one terminal and the switched conductor continues to the fixture.
Switch and ceiling fixture connection path
The supply cable from the panel normally enters the switch box using 14/2 or 12/2 cable depending on breaker rating. The black conductor carries the line voltage, while the white conductor passes through the box and connects directly to the ceiling light neutral terminal. From the switch, another black conductor returns to the ceiling outlet box and attaches to the fixture hot terminal. Ground conductors from all cables are twisted together and connected to the device grounding screw and the metal box when present.
Outlet branch routing and breaker protection
Receptacles are usually connected in a continuous chain along the wall line. Each device receives the incoming hot and neutral pair and sends another pair to the next outlet location. Copper conductors rated 14 AWG support a 15A breaker, while 12 AWG conductors pair with a 20A breaker. The breaker protects the entire branch line from overload by disconnecting power if current exceeds the rating.
Position outlet boxes roughly 12 inches above the floor and maintain spacing of about 12 feet along the wall to distribute plug-in loads. Inside each box, strip insulation carefully and form a clockwise loop around terminal screws before tightening. Ground conductors must connect to the green terminal on each receptacle and bond to metal enclosures, creating a continuous grounding path back to the service panel.
Single Room Circuit Layout With Ceiling Light Switch and Wall Outlets
Route the branch circuit from the distribution panel first to the wall switch box, then continue to the ceiling luminaire and nearby receptacles. This sequence allows the switch to interrupt the live conductor feeding the overhead light. A common setup uses 14 AWG copper with a 15A breaker or 12 AWG copper with a 20A breaker. The hot conductor enters the switch box, connects to the switch input terminal, and a second conductor leaves the switch toward the ceiling fixture. Neutral travels directly to the fixture junction box and also continues along the branch serving plug outlets.
Install the overhead light box near the center of the ceiling joist span so illumination spreads evenly across the interior area. The switched hot conductor attaches to the fixture live terminal, while the neutral conductor attaches to the neutral terminal. Ground conductors from all cables connect together and bond to the metal junction box and the fixture grounding screw. Cable staples should secure the cable within 8 inches of each junction box and every 4.5 feet along framing members.
Wall receptacles normally connect in a chain along the branch line. Position the first outlet about 12 inches above the finished floor and maintain spacing of roughly 12 feet along the wall. Each device receives the incoming hot and neutral pair and sends another pair to the next outlet location. Use screw terminals rather than push-in contacts to maintain firm electrical contact and reduce heat buildup under load.
