Use the factory layout chart tied to your exact model code before ordering or fitting any replacement item. Match the stamped numbers on the housing with the exploded layout to confirm shaft length, fastener type, and mounting position. This step prevents mismatched fittings and repeat disassembly.
Each section of the visual layout corresponds to a functional group such as ignition, fuel delivery, drive system, or cutting assembly. Study the callout numbers and reference table to verify washer order, gasket placement, and torque sequence. Skipping this check often leads to leaks, vibration, or uneven rotation.
Pay close attention to revisions by year. The same model name may include different carburetor bodies, clutch drums, or tension mechanisms depending on production run. Use serial ranges shown near the chart legend to avoid incompatible hardware.
Print the layout or keep it open during service. Mark removed items as you work to track reassembly order. This method reduces downtime, limits errors, and helps confirm that all fittings return to their original positions.

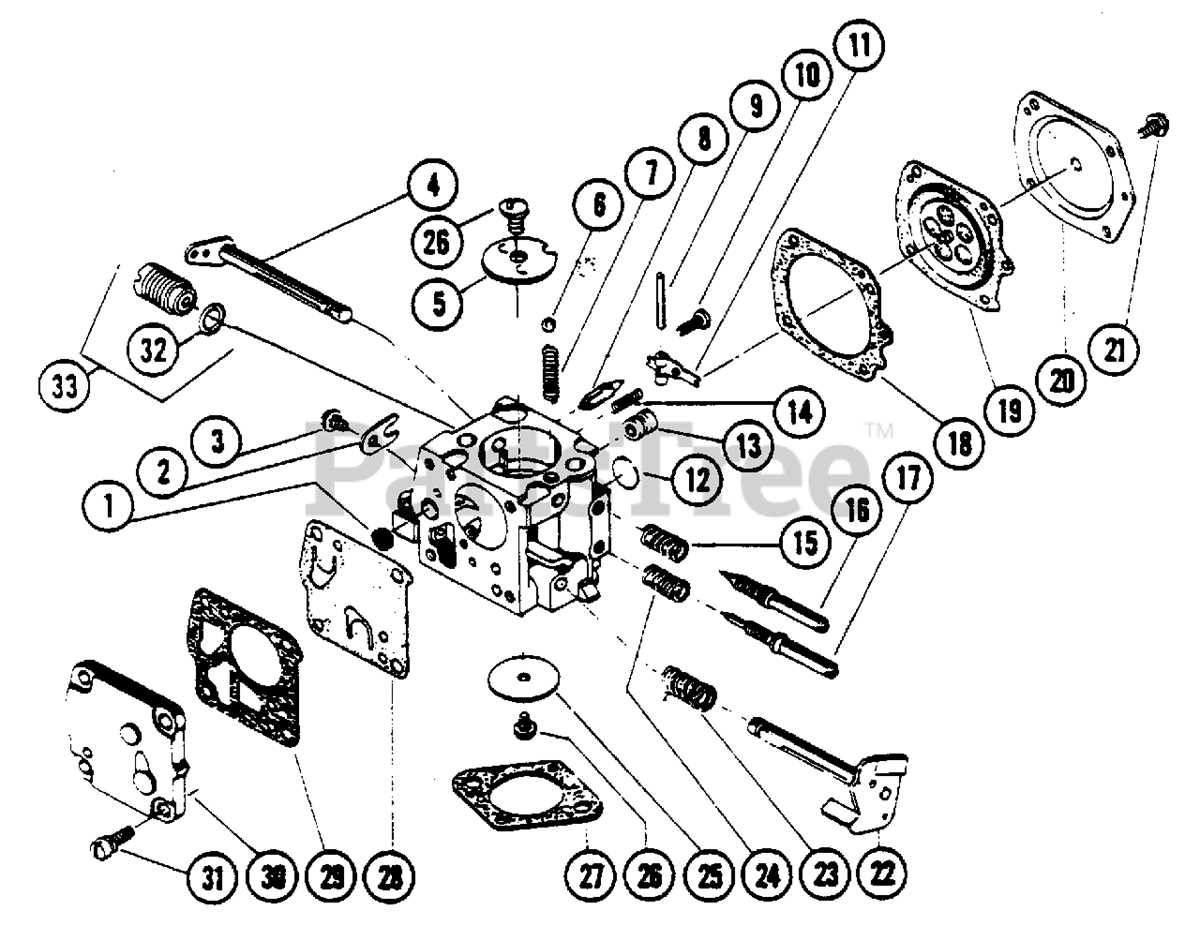

How to Read an Exploded Layout for Accurate Component Identification
Match the model code and serial range printed on the housing to the reference sheet before checking any callouts. Small production changes affect fastener length, gasket thickness, and clutch geometry, so the correct revision matters.
Use the numbered callouts to trace each item from the visual layout to the reference table. The table lists item numbers, descriptions, quantities, and notes such as left-hand threads or heat shields. Confirm quantity to avoid missing spacers or shims during reassembly.
Follow assembly order shown by layering. Items drawn closer to the viewer install last. This helps confirm washer stacks, bearing orientation, and seal direction, which reduces leaks and wobble.
Read arrows and dashed lines carefully. Arrows indicate motion paths or cable routing, while dashed lines show hidden items behind covers. Misreading these symbols leads to pinched lines or reversed springs.
Verify measurements where noted. Some entries include pitch, bore size, or tooth count. Measure the removed item with calipers and compare it to the listed spec to prevent fit issues.
Check footnotes for torque values and thread treatments. Notes may specify dry torque, oiling, or threadlocker use. Apply the listed value with a calibrated wrench to avoid stripped housings.
Using an Exploded Layout to Select and Replace Components
Select replacements only after confirming the item number tied to your model code and serial range. Use the reference sheet to cross-check dimensions such as bore diameter, spline count, and thread direction before placing an order.
Compare the removed unit to the visual layout to verify orientation and attachment points. Pay attention to paired items like springs and retainers, which must match tension rating and wire thickness shown in the reference table.
Replace wear groups together. For drive and cutting assemblies, install the listed mates at the same time, such as drum with bearing or sprocket with washer stack. Mixing old and new hardware shortens service life.
Follow the visual stacking order during installation. Items shown beneath others mount first, while surface hardware installs last. This prevents misaligned shafts and uneven clamp force.
Use the listed torque values and notes. Apply threadlocker, lubrication, or dry torque only where specified. Measure fastener length against the reference to avoid bottoming out in the housing.
Recheck cable routing and line paths marked by arrows. Incorrect routing causes binding or delayed response after reassembly. Test movement by hand before fueling or powering up.
