For anyone maintaining or troubleshooting a compact cooling unit, having a clear picture of its internal elements can save significant time and effort. The inner workings of these systems are centered around a few key mechanisms that must be understood to keep the device running smoothly. Each section plays a distinct role, ensuring optimal cooling output.
Key sections of the device include the compressor, condenser, evaporator, and fan. The compressor is responsible for pumping refrigerant through the system, while the condenser expels heat. The evaporator absorbs heat from the room, and the fan circulates the cooled air back into the space. Together, these components maintain the desired temperature with minimal energy loss.
Understanding how each piece functions and interconnects allows for precise maintenance. Replacing or cleaning each part regularly will extend the device’s life and efficiency. Whether dealing with a minor issue or performing routine checks, knowing how to identify faulty components can simplify repairs.

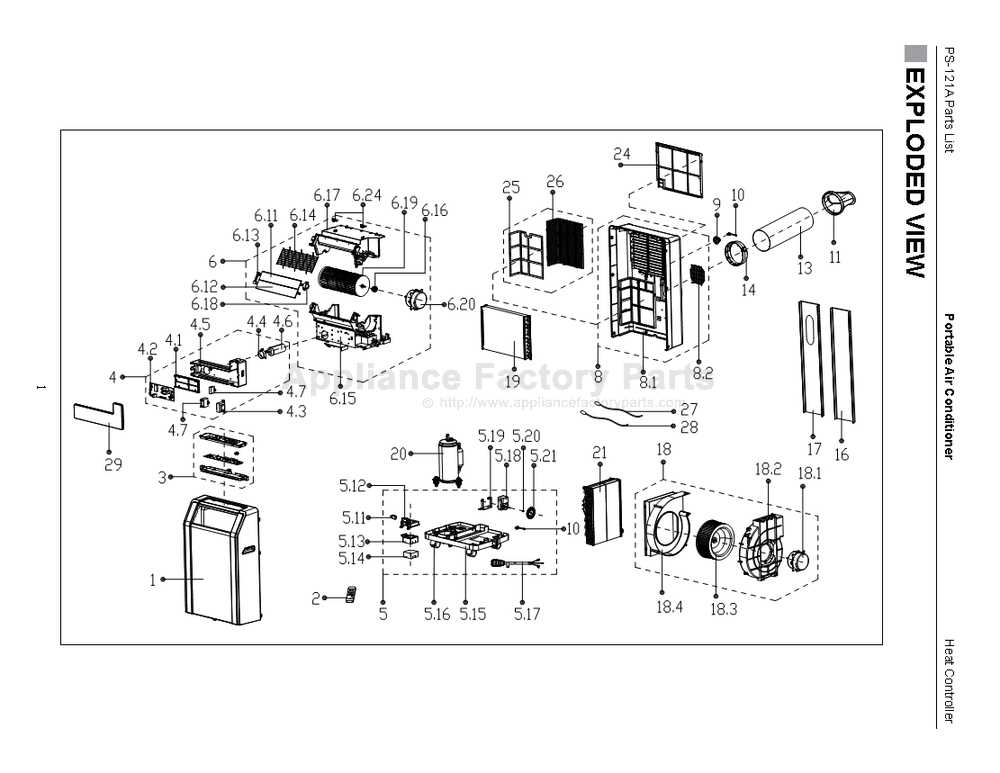

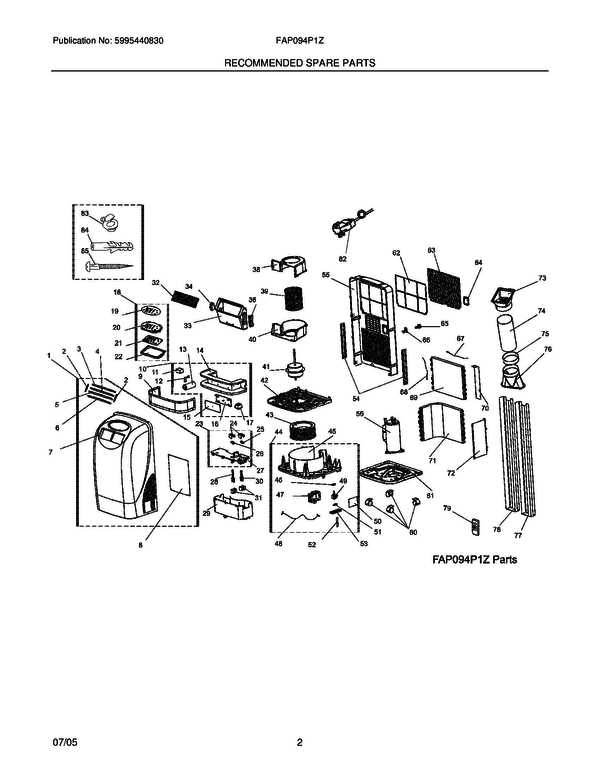

Key Components of an Indoor Cooling System
For efficient operation, make sure all components are properly aligned and functional. The core unit houses the compressor, which circulates refrigerant throughout the system. The evaporator absorbs heat from the environment, while the condenser releases it outside. These parts are critical in maintaining a balanced cooling cycle. A fan within the unit circulates the cooled air, enhancing overall distribution.
In addition to the cooling components, the control panel is essential for setting temperature, fan speed, and mode preferences. Sensors detect the room’s conditions, adjusting the system’s performance as necessary. The filter traps dust and allergens, improving indoor air quality and preventing clogging within the unit.
The exhaust hose expels the heated air outside, and its proper installation ensures that the unit performs optimally. A drainage system is included to remove accumulated moisture, reducing the risk of mold. Regular cleaning of the filters and clearing the exhaust duct is important for preserving functionality and extending the lifespan of the unit.
Understanding the Key Components of a Mobile Cooling Unit
The fan circulates the cooled air inside the space, improving comfort by maintaining airflow. It’s crucial to ensure it operates at the right speed for efficient cooling, avoiding any blockages in the intake or exhaust areas that could disrupt airflow.
The compressor handles the refrigerant, converting it from a gas to a liquid. Its efficiency directly affects the unit’s cooling power. Keep the compressor clean and ensure it runs smoothly by avoiding overheating, which could cause long-term damage.
The evaporator coil absorbs heat from the room. Regular maintenance of these coils helps to maintain a consistent temperature. Any dust buildup can reduce their ability to absorb heat, so periodic cleaning is necessary to ensure optimal performance.
The condenser coil releases the absorbed heat outside. Proper ventilation is key to ensuring the condenser can perform without restriction. If the exhaust duct is too long or blocked, the cooling system becomes less effective, and energy consumption increases.
The refrigerant is the liquid that carries the heat away. It must be kept at the right level for the system to operate effectively. A refrigerant leak will cause performance issues, so routine checks are recommended to avoid system failure.
Drainage is responsible for removing the moisture gathered during the cooling process. Ensure the drainage system is clear to prevent water buildup, which could lead to leaks or mold growth inside the unit. Regular inspection of this component can prevent unnecessary maintenance costs.
How to Identify and Troubleshoot Common Component Failures in Cooling Devices
Begin by checking if the unit fails to power on. A blown fuse or tripped circuit breaker is often the cause. Inspect the power cord for any visible damage, and ensure the plug is securely connected to a working outlet.
If the device is running but not producing cool air, examine the condenser for blockages. Dirt and debris can obstruct airflow, leading to inefficient performance. Clean the condenser coils carefully using a soft brush or compressed air to remove any buildup.
When the unit produces unusual noises, such as grinding or rattling sounds, it’s likely due to a malfunctioning fan or loose parts. Inspect the fan for any signs of wear or damage and ensure it rotates freely without obstruction. Tighten any loose screws or components to stop vibrations.
If the cooling is inconsistent, the refrigerant level may be low. This typically requires a technician to diagnose and recharge the system, as handling refrigerant involves specific expertise.
For a device that is leaking water, check the drainage hose and reservoir. Ensure the hose is properly attached and free from clogs. Additionally, inspect the internal pump for any failure that may prevent water from draining effectively.
When the device produces excessive humidity, the internal dehumidifier or humidity control settings might not be functioning correctly. Test the settings and clean the water collection tray, as trapped moisture can cause the system to underperform.
If the unit has a persistent odor, it’s usually a sign of mold or mildew growth. Clean the air filters and evaporator coils thoroughly. Use a mild disinfectant solution to wipe down the interior to eliminate any organic buildup.
