Ensure the power supply is rated at 15 kV and verify the transformer connections before making any contacts with the internal electrodes. Direct handling without proper insulation can cause severe shocks.
Identify the primary and secondary terminals on the step-up transformer, using color-coded leads to match live and neutral points. Incorrect connections can lead to component failure or arcing inside the globe.
Secure the glass enclosure on a non-conductive base and confirm the central electrode is firmly attached. Loose components increase the risk of uneven plasma streams and electrical leakage.
Before powering the device, measure continuity across all grounding points to ensure the metal base is properly earthed. This prevents potential short circuits and protects surrounding equipment.
Once connections are verified, activate the supply with a low-current tester and observe the ionized filaments. Adjust the distance between the high voltage tip and the globe for uniform light arcs.
Plasma Ball High Voltage Assembly Guide
Confirm the transformer is rated for at least 15 kV output before connecting it to the main electrode. Incorrect voltage ratings can destroy the glass globe and create dangerous arcs.
Mount the central electrode securely on a non-conductive support. Use ceramic or high-density plastic spacers to maintain proper clearance from the inner glass surface. Even a small gap misalignment can trigger uneven discharge patterns.
Connect the primary leads using color-coded terminals.
- Red for live input
- Black for neutral
- Green for grounding
Ensure all screws are tightened to prevent loose contacts that can cause sparks outside the globe.
Install the globe onto the base and verify the top electrode is centered. Use a ruler or caliper to check the distance between the tip and inner surface, targeting 5–10 mm for consistent ion streams.
Test the grounding path with a multimeter before activating the device. A low-resistance reading below 1 ohm confirms a secure path. Proper grounding minimizes electric shock risk and prevents voltage leakage.
Power on the transformer gradually and observe the discharge filaments. Adjust the central electrode height if the arcs are clustering on one side. Regular inspection of connections ensures longevity and consistent visual effects.
Identifying Power Terminals and Transformer Connections
Locate the primary input terminals first and mark them according to voltage rating. Red typically indicates live, black neutral, and green for grounding. Use insulated tools to avoid accidental shorts while confirming the connection points.

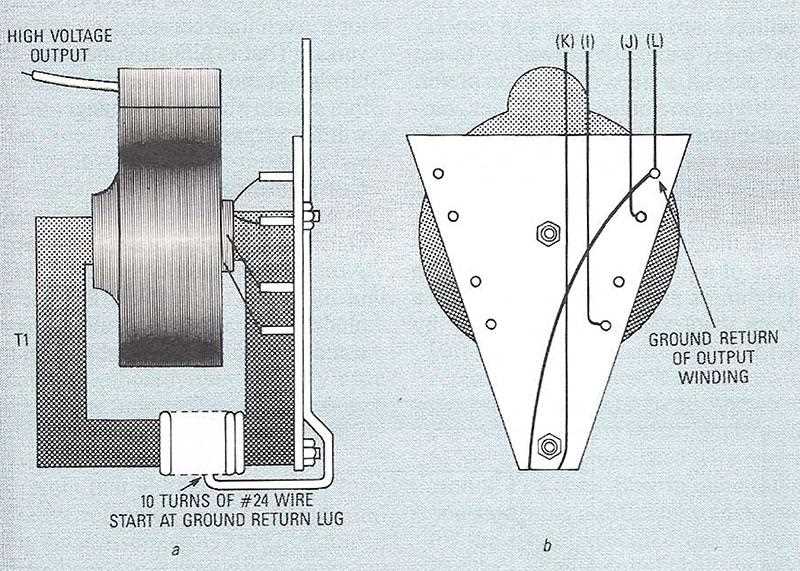

Check the secondary side of the transformer for high-voltage output leads. Label the terminals clearly to prevent incorrect attachment to the central electrode, which can cause uneven discharge or damage the globe enclosure.
Verify continuity between the transformer chassis and the ground terminal with a multimeter. Resistance should read below 1 ohm to ensure a safe path for stray current and reduce risk of shock during operation.
When connecting to the display device, maintain a consistent distance between high-voltage output and surrounding conductive parts. Small adjustments to terminal positioning can optimize filament movement and create balanced visual effects.
