The first element to identify is the riser, which refers to the vertical distance between each step. This measurement plays a key role in determining the overall height of a structure and directly impacts its comfort and accessibility. Ensuring the correct riser height helps avoid discomfort during use.
Next, focus on the tread, which is the horizontal surface where users place their feet. Treads are essential for stability, and their width can influence the ease of movement, especially in high-traffic areas. The depth of the tread is particularly significant for safety, with wider treads offering better support.
Another important feature is the landing. These are flat areas found at turns or between levels. They offer a brief rest, improving the overall safety and usability. Depending on the design, landings can also serve as transition spaces between different sections.
Finally, the stringer acts as the structural support, running along each side to hold the steps in place. The design and material of the stringer are vital for the strength and longevity of the entire system, ensuring the load is evenly distributed.
Key Elements of a Step Representation
The step’s width determines how much space each tread occupies horizontally. It’s crucial to match this dimension with the intended usage, ensuring comfort for those ascending or descending.
The rise measurement represents the vertical height between two consecutive steps. It directly impacts the ease of movement and can vary based on the design’s requirements, such as accessibility standards or aesthetic preferences.
A nosing extends slightly beyond the edge of each tread, offering extra surface area and reducing the risk of slipping. This feature can also enhance the visual appeal of the setup.
Stringers act as the structural supports that hold the treads and risers in place. They are typically cut from durable materials and designed to withstand the forces exerted by foot traffic.
The landing provides a stable flat surface, allowing users to rest or change direction. The positioning of the landing is crucial for safety, especially in multi-level designs.

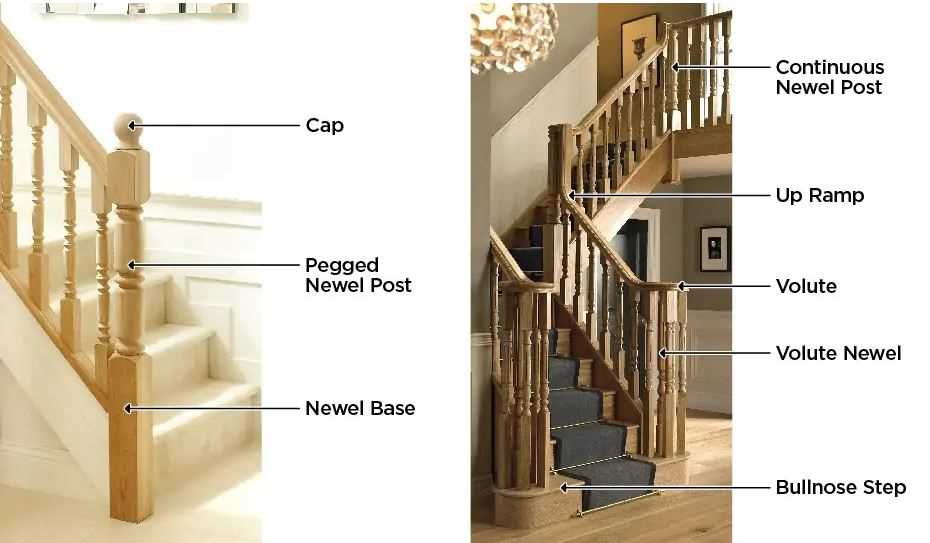

The balusters, or spindles, serve as vertical posts placed along the edge of a staircase. These elements support the handrail and prevent accidental falls.
A handrail provides stability by offering a steady grip while ascending or descending. Its height and placement should be carefully adjusted to accommodate the user’s reach and ensure safety.
Another key feature is the headroom, the vertical clearance above the step. Adequate headroom is necessary to prevent discomfort or injury, particularly in narrow or confined spaces.
Understanding the Step and Riser Dimensions
When constructing steps, accurate measurements of step and riser dimensions are crucial for user comfort and safety. The rise refers to the vertical distance between two consecutive levels, while the tread is the horizontal surface where the foot rests. Typically, a comfortable rise falls between 7″ and 8″, with the tread around 10″ to 11″ in depth.
Ensure the combined rise and tread measurements align with the “2R + T” rule, where twice the rise plus the tread equals between 24″ and 26″. This ratio helps to maintain an ergonomic incline, preventing steep or shallow steps that could cause discomfort or instability.
Adjustments might be necessary for specific uses. For instance, in public spaces, compliance with building codes often requires a maximum riser height of 7.75″ and a minimum tread depth of 10″. When designing for narrow areas or unique layouts, consider a slightly shallower rise with a deeper tread to maintain the balance between ease of use and compactness.
How to Accurately Label Stair Components in a Diagram
Each element of a staircase must be marked with precision to avoid confusion. Begin by labeling the steps clearly, using terminology that distinguishes tread and riser. The tread is the horizontal surface where one places the foot, while the riser is the vertical portion that connects one tread to the next. Ensure both are labeled distinctly to avoid misinterpretation.
Next, identify the stringers, which are the inclined supports that hold the steps. These should be marked with lines or arrows pointing to their placement, indicating whether they are open or closed. Note if the stringers are located on one or both sides of the structure, as this influences the design and load distribution.
For landings, make sure to specify the location and dimensions where the stairwell transitions or changes direction. Clearly label the landing as a separate section, indicating if it is part of a straight run or a turn. If there are landings with a curve, note the radius of the turn for clarity.
Label the handrails or guardrails, emphasizing their height and placement along the sides of the staircase. Clearly indicate if they are continuous or if there are breaks. If the handrails are curved or have specific ornamental features, these should be noted, with arrows or lines showing the path.
Mark the headroom clearance at the top, especially if it is a critical measurement for safety. This should be shown above the top step, ensuring the available space is clear of any obstructions.
Finally, if there are any additional safety features such as non-slip treads or lighting, these must be labeled. Indicate their location with small annotations or symbols that make them stand out without overcrowding the main structure.
