If you’re facing issues with your snow clearing machine, checking its inner workings can provide a direct path to identifying the problem. Focus on each mechanical element to pinpoint damage or wear that might be affecting performance. The key components, such as the auger, drive system, and chute, play a significant role in how efficiently the machine clears snow. Regular maintenance and an understanding of how these parts function together can save you time and money in the long run.
When disassembling your equipment, take care to review the placement of each moving piece. For example, the belt system, responsible for transmitting power, should not show signs of fraying or stretching. Inspect the housing that contains the impeller and auger, as these parts often experience the most wear due to contact with debris and ice. The configuration of these mechanical elements ensures that snow is moved without issue, so any deviation can lead to performance drops.
After assessing the condition of these parts, ensure that any broken or worn elements are replaced with the right alternatives. Match specifications carefully to avoid complications during the reassembly. A well-maintained system will run smoothly, ensuring you won’t be left with an inoperable unit during a snowstorm.
Identifying Key Components for Quick Repairs
For quick fixes, begin by locating the auger assembly and the chute control. These are typically the first parts that require attention due to wear from frequent use. The auger assembly includes the drive belt and impeller, which are prone to damage from ice and debris. Regular inspection and lubrication of these components can prolong their lifespan.
Next, focus on the engine and its connections, particularly the spark plug and fuel system. The spark plug should be checked for carbon buildup or corrosion to ensure proper ignition. Fuel lines, on the other hand, may become cracked or clogged over time, reducing efficiency and increasing the risk of a stall during operation.
Be mindful of the traction drive system, which includes the drive belt and friction disk. If you notice the machine is not moving or struggles to change speeds, the drive belt may be loose or worn. Replacing it can restore the functionality of the unit.
Always check the safety features, such as the key switch and safety latches, ensuring that they are functioning correctly to avoid potential accidents. Over time, wear on these small but critical parts can lead to system failures.
Refer to the parts catalog to match specific components with the model number. This will help you avoid ordering incorrect items and speed up the repair process. Keeping a reference guide nearby will make identifying and replacing faulty pieces straightforward.
Identifying Key Components in a Craftsman Snowblower Parts Diagram
Focus on recognizing the auger assembly, which is responsible for pulling snow into the machine. It includes the auger itself, the impeller, and the housing. Inspect these parts for wear or damage, as they are crucial for snow intake and discharge. Pay attention to the belt and pulley system that connects the engine to the auger assembly. Misalignment or wear in these components can lead to poor performance or even failure.
Next, locate the chute and deflector, which direct the snow after it has been processed. Ensure these parts are not obstructed or cracked, as they control snow trajectory and can greatly affect efficiency. Examine the drive shaft and gears–these link the engine to the wheels, enabling movement. If there’s slippage or noise, check for wear on these parts and replace as necessary.
Look for the control cables that adjust the speed and direction of the machine. These cables connect to levers on the handlebar, and any fraying or disconnection can lead to a loss of control. Also, verify the safety switches and ignition system, especially if the engine fails to start. Checking these components ensures that the snow removal machine operates smoothly and safely.
How to Use a Snowblower Component Diagram for Repairs and Maintenance

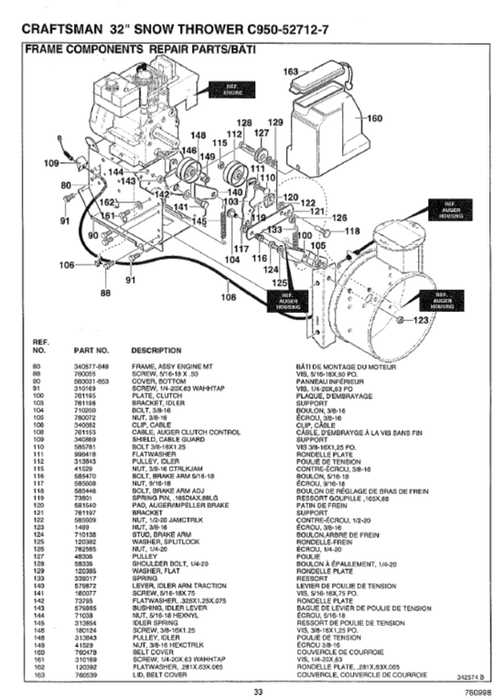

To maintain your blower or fix any malfunctioning parts, start by obtaining an exploded view of the machine’s components. This schematic simplifies identifying each part’s placement and connection, making it easier to spot damaged or worn-out sections.
Use this visual guide as a reference when disassembling the blower. Each part is numbered and labeled, allowing you to track the removal and replacement process step-by-step. Here’s how to proceed:
- Inspect each component for wear, damage, or misalignment before beginning repairs. Refer to the illustration to ensure you’re examining the correct section of the machine.
- Refer to the guide during disassembly to avoid losing smaller parts, such as screws and springs. Note the sequence for reassembly, which is often marked in reverse order.
- If a malfunction occurs, match the symptoms with the relevant part in the schematic. This can help you quickly identify if the issue lies with the engine, auger, or drive system.
- For routine maintenance, use the reference to check if specific components require lubrication, tightening, or replacement.
- When replacing a part, confirm the part number to ensure compatibility, which can be cross-referenced using the illustration.
Having a clear visual reference reduces the risk of mistakes, saving time and money on repairs. It can also guide you through preventative actions, prolonging the life of the equipment.
