To maintain a smooth-running mechanism, it’s important to recognize the various elements that contribute to the overall function. Identify the springs, tracks, and pulleys to pinpoint where potential issues may arise. A malfunction in one component can lead to bigger problems down the line.
For instance, if the mechanism is stuck or makes unusual noises, checking the rollers and cables can save time. If the springs are worn out, it can lead to uneven movement or failure to open/close. In such cases, replacing these parts quickly ensures continued performance and prevents further damage.
Make sure to regularly inspect the components and replace any damaged or worn-out parts. Being familiar with how these elements function will also help you troubleshoot issues efficiently. Keep in mind that routine maintenance can greatly extend the lifespan of the system, making it a crucial task for every owner.
Overhead Garage Door Components Breakdown

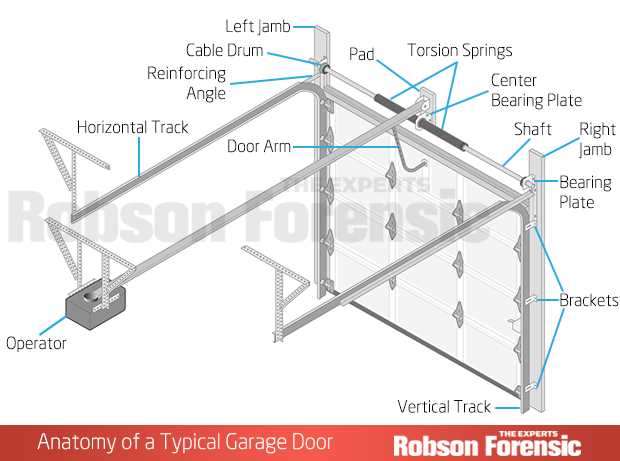

The primary components of a lifting system include the torsion springs, cables, rollers, and the track assembly. Each plays a significant role in ensuring smooth operation.
The torsion springs are responsible for counterbalancing the weight of the panel. These springs store energy and release it to assist in raising and lowering the system. If these springs snap, the door will not open properly, and they should be replaced immediately.
Cables connect the springs to the system and help distribute the weight of the panel. Over time, they can become frayed or break, which can cause the system to malfunction. Regular inspection and replacement are necessary to maintain safe operation.
Rollers guide the panel along the track, ensuring it moves up and down smoothly. They should be checked for damage or wear. Lubricating the rollers periodically helps prevent rust and ensures optimal performance.
The track system consists of vertical and horizontal tracks that guide the movement of the panel. Misaligned or bent tracks can cause uneven movement, so it’s important to keep them clean and properly aligned for smooth function.

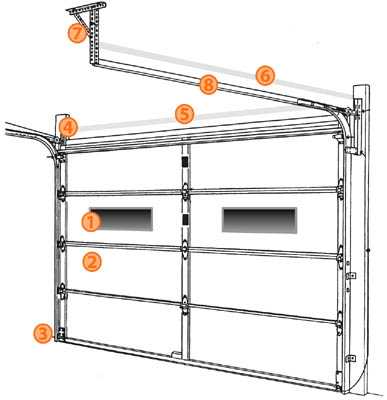

How to Identify Key Parts of Overhead Garage Doors
Begin by inspecting the panel, the most visible part of the system. It serves as the barrier between the interior and exterior, moving up and down along the tracks. Check for cracks or dents that may interfere with operation.
Next, focus on the springs, typically located above the opening. These springs provide the tension needed to balance the weight of the panel. If the door becomes difficult to lift, or if you hear a loud noise, the springs might be damaged.
The cables are located on both sides, running from the springs to the bottom of the panel. These help in the even distribution of weight as the door moves. If you notice the door is uneven or it makes a jerky movement, inspect the cables for wear or breakage.
Rollers are attached to the edges of the panel and move through the track. Look for rust, cracks, or misalignment, as these can cause the door to malfunction. Regular lubrication is important to keep them functioning smoothly.
The track system consists of the vertical and horizontal components that guide the door’s movement. Ensure that the tracks are free of obstructions and that they are aligned. A bent or misaligned track will hinder smooth movement.
Common Repairs and Replacements for Garage Door Mechanisms
If the spring becomes damaged or broken, it should be replaced immediately. A malfunctioning spring will make the entire system unable to lift or lower the panel smoothly. This repair requires caution due to the high tension in the spring.
Replacing cables is necessary when they show signs of fraying, breakage, or excessive wear. If one side of the system appears uneven or makes a jerky motion, inspect the cables for damage. Always replace both cables at the same time to maintain balance.
Worn or rusted rollers can cause noisy or jerky movement. If you hear unusual sounds or notice the system gets stuck mid-motion, inspect the rollers for damage. Replace them as needed and apply lubrication to maintain smooth operation.
If the track system becomes misaligned or bent, the door will struggle to move properly. Adjust or replace the tracks carefully, ensuring they are level and free from debris. Misalignment can often be fixed with a simple adjustment, but severely damaged tracks should be replaced.
A damaged opener motor will result in the door not responding or operating erratically. Check the motor and its components for signs of failure, such as burnt wiring or irregular sounds. If the motor is beyond repair, replacing it with a compatible model will restore functionality.
