If you’re working on a truck and need to identify specific elements for maintenance or upgrades, having a clear breakdown of its individual sections will save time. Visualizing the truck’s assembly and knowing where each part fits is key when performing repairs or replacements. Whether you are dealing with the transmission system, the exhaust manifold, or suspension components, understanding their placement and function can prevent costly mistakes.
For the most accurate assembly, refer to a detailed guide that shows how each component connects to others within the vehicle’s framework. A clear representation of the undercarriage and interior layout helps identify any worn or faulty parts that need immediate attention. Many vehicle-specific schematics are available online, offering an exploded view of critical elements and their relationship to one another, which makes identifying issues far easier.
When addressing mechanical concerns, focus on particular subsystems like the engine block or drivetrain, and verify which components are involved in the problem. Some systems are more prone to failure over time, such as the fuel lines or brake pads, and understanding their location allows for quicker access. Make sure you also have a proper torque specification guide to avoid damaging any parts during reassembly.
Understanding the Components of Your Vehicle
For a clear view of how each element fits together, consult the detailed visual guide of the engine, transmission, suspension, and electrical systems. This allows for efficient identification and replacement of malfunctioning units. Ensure accuracy when checking the alignment of the belts, alternator, or powertrain links. Use color-coded labels for ease of reference during any servicing or upgrades.
When looking to replace a part, always cross-check with specific component numbers to avoid compatibility issues. Having access to a detailed visual representation helps prevent mistakes when you are working on critical systems such as fuel or brake mechanisms. This is especially useful for complex repairs or custom modifications, where knowing exact placements can save significant time.
Don’t overlook the importance of regular inspection and maintenance. Having a blueprint for key components like the exhaust system, steering linkage, or front-end assembly ensures you can quickly spot wear or damage, whether due to age, usage, or environmental conditions. A quick comparison with the visual guide will confirm if any part has reached its threshold for replacement.
Understanding the Layout of Engine Components
To grasp the arrangement of engine elements, focus on key assemblies like the cylinder head, crankshaft, and timing system. The cylinder head sits atop the engine block, housing valves and camshaft mechanisms. The crankshaft lies at the bottom, converting linear energy from pistons into rotational force.
At the front, the timing chain connects the crankshaft to the camshaft, synchronizing valve movement with piston cycles. This system ensures efficient combustion. Nearby, the oil pump plays a role in lubricating moving parts, maintaining engine temperature by preventing excessive friction.
Engine cooling is handled by a water pump, drawing coolant through channels within the block to regulate temperatures. The intake manifold directs air to the combustion chamber, while the exhaust manifold collects gases from the cylinders. These parts are directly linked to performance, affecting fuel efficiency and power output.
Modern engines also incorporate sensors for monitoring temperature, fuel flow, and exhaust emissions. These sensors relay data to the ECU, enabling adjustments to optimize performance and ensure regulatory compliance.

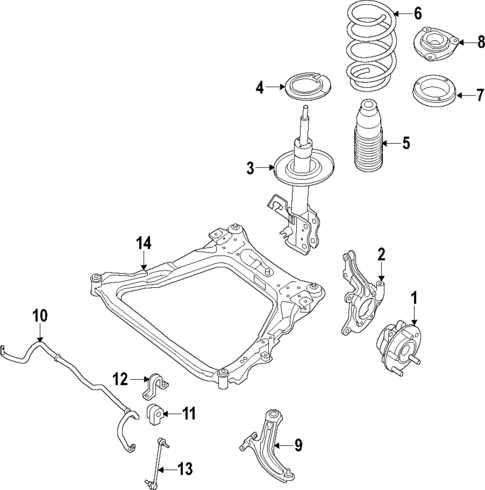

How to Identify and Replace Suspension Components
Inspect shock absorbers for leaks or visible damage, as these are the most common issues. Check the suspension arms for cracks, wear, or bending, as these can impact alignment. Worn bushings are often identified by squeaking noises or visible wear. Control arms and linkages should be examined for rust or corrosion, as this can weaken their strength.
To replace the shock absorbers, lift the vehicle using a jack and secure it with jack stands. Unbolt the worn shock from its mount and replace it with a new one. Reinstall all bolts tightly, and ensure proper alignment before lowering the vehicle.
For control arm replacement, begin by removing the fasteners connecting the control arm to the frame and suspension. Install the new arm, ensuring all bolts are torqued to manufacturer specifications. Double-check the suspension for proper alignment once the new parts are installed.
For a smoother ride, replace worn-out bushings. Use a bushing removal tool to extract the damaged parts and press the new bushings into place. Make sure the bushings are aligned correctly to avoid premature wear or noise.
Lastly, inspect the ball joints. If there is excessive play or abnormal noise, replace them promptly. Removing and installing ball joints typically requires specialized tools to press them in and out of the steering knuckle. Proper torque is crucial for secure installation.
