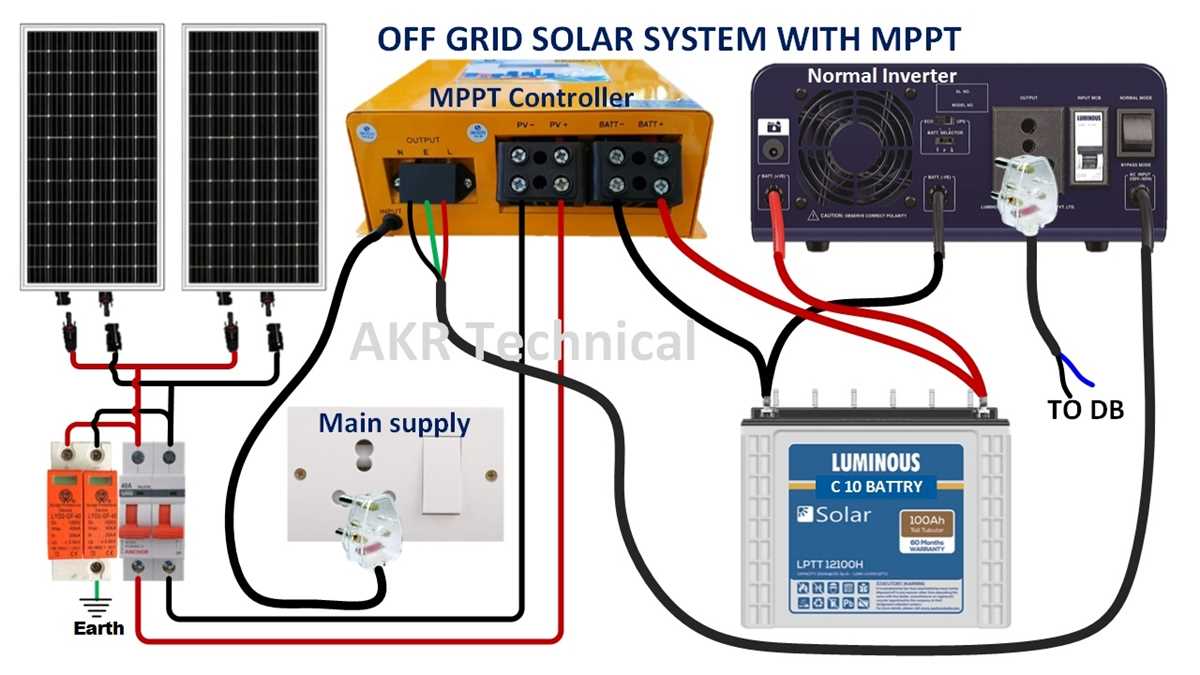

Connect the photovoltaic panels directly to the input terminals while ensuring polarity is correct. Reversing connections can damage internal components and prevent proper energy flow.
Verify that the battery bank voltage matches the input rating of the regulator unit. Overvoltage can trigger protection circuits and undercharging reduces storage efficiency.
Install the output lines to the load while keeping all conductors properly insulated. Loose or exposed connections may create shorts or generate heat that can harm both the unit and connected devices.
Use a multimeter to check current and voltage at each stage before full operation. This ensures all leads are properly connected and the system maintains stable output.
Secure all terminals and consider adding fuses or circuit breakers. Proper protection enhances safety and prevents permanent damage to the energy regulation assembly during fluctuations or faults.
High Efficiency Energy Regulation Unit Setup
Connect the photovoltaic panels to the input terminals while confirming correct polarity. Reversing leads can damage internal components and reduce energy conversion performance.
Link the battery bank to the output terminals and monitor voltage levels carefully. Maintaining proper voltage prevents over-discharge and ensures maximum storage efficiency. Add inline fuses to protect against sudden surges or short circuits.
Attach the load connections with insulated conductors and verify continuity before full operation. Testing with a multimeter ensures stable current flow and prevents overheating of wires or the energy regulation assembly during prolonged use.
Connecting Panels to the Input Terminals
Verify that each panel lead matches the input polarity of the regulation unit. Reversing connections can damage internal components and prevent proper energy flow.
Measure the open-circuit voltage of each panel using a multimeter before attachment. This confirms compatibility with the input rating and prevents overvoltage at the terminals.
Group the positive and negative leads from multiple panels in parallel or series according to the system voltage requirements.
- Series connections increase voltage
- Parallel connections increase current capacity
Use proper connectors that are rated for the maximum current and environmental conditions. Loose or undersized connectors can overheat and create fire hazards during prolonged operation.
Route all conductors through protective conduits to avoid physical damage. Exposed wires are vulnerable to UV degradation and accidental cuts which can interrupt energy flow or cause shorts.
Secure each lead at the input terminal with the manufacturer’s recommended torque. Over-tightening can strip threads while under-tightening may loosen connections under vibration.
Install inline fuses or breakers on the positive leads to prevent surge damage. This ensures safety if a panel experiences a short or if a lead is accidentally grounded.
After completing connections, perform a low-load test to measure voltage and current stability. Confirm that each panel contributes correctly to the system and adjust any leads if discrepancies are detected.
