Turn off the main power supply before handling any terminals to prevent shorts and protect control relays from damage. Verify voltage absence using a multimeter before proceeding.
Label all conductors with colored markers corresponding to the control board terminals. Red is typically for power, white for heating, yellow for cooling, and green for the fan. Correct labeling avoids misplacement.
Check compatibility between the control unit and the connected load. Confirm voltage ratings and relay ratings to prevent overloading and ensure proper operation of single-phase or three-phase systems.
Secure all connections tightly in the terminal block. Loose contacts can cause intermittent operation, overheating, or failure of protective devices.
After completing connections, mount the control assembly carefully to avoid pinching wires. Ensure the housing allows ventilation and easy access for future maintenance.
Test each function by activating heating, cooling, and fan relays individually. Monitor the response and check the display or indicators to confirm proper operation before restoring full load.
Guide for Connecting and Testing Single and Three Phase Systems
Switch off all power sources before touching any control relays or terminals. Identify each conductor using color codes and labels: red for power, white for heating, yellow for cooling, and green for fans. For three-phase loads, verify line sequence with a phase tester to prevent reverse rotation or damage to the equipment.
Functional Testing and Verification
After completing all connections, restore power and run each relay individually. Observe the response of heating, cooling, and fan functions, checking indicator lights or meters for correct operation. Any irregularity in response should be corrected by rechecking terminal connections and confirming proper phase alignment for three-phase setups.
Identifying Control Components and Terminals

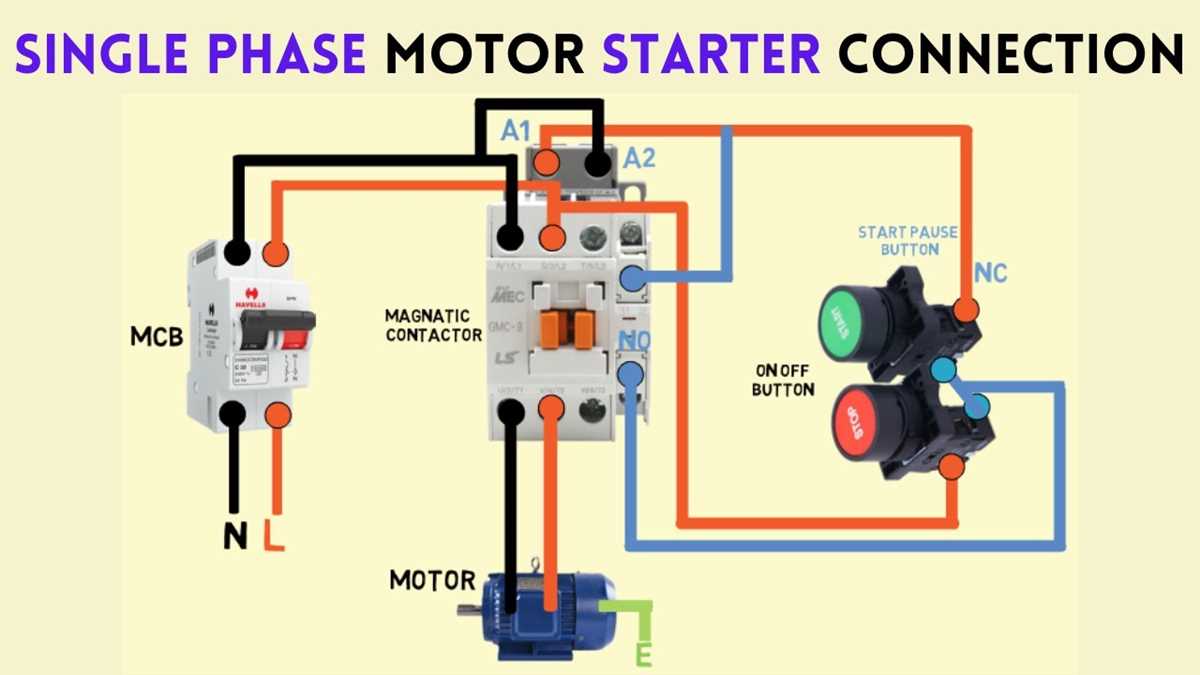

Disconnect all power before inspecting any relays or contact points. Identify the main elements including the control relay, overload protector, and contactor. Each component has specific terminals marked with letters or numbers for proper connections.
- R or L1, L2, L3: Power input lines for single-phase or three-phase supply.
- T1, T2, T3: Output lines going to the load.
- A1, A2: Coil terminals for activating the relay.
- OL: Overload relay connections to protect the system from excess current.
Verify each terminal using a multimeter or continuity tester. Ensure that labels match the control device instructions and that no terminals are corroded or loose. Correct identification prevents misconnection and ensures safe operation of both single and three-phase installations.
