Begin by identifying the necessary components to complete the installation process. Ensure that you have the appropriate tools and materials for a safe and efficient setup. Make sure you have access to the power source and the fixtures you plan to connect.
When connecting the device, you’ll need to follow a simple process of matching the designated terminals. Typically, you’ll find three connections: one for power input, one for the load (light fixture), and one for grounding. Take extra care when working with the power lines to avoid any risk of electrical shock.
Ensure that the circuit is correctly connected to enable seamless operation. The device should automatically detect motion and trigger the connected light based on the settings you choose, such as sensitivity and delay time. Check the manufacturer’s guide for specific configuration steps.

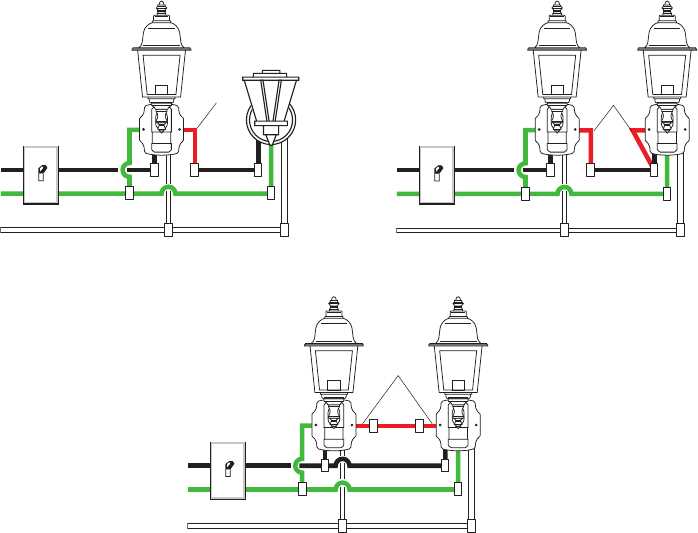

Motion Sensor Light Wiring Guide
Before starting any installation, ensure the power supply is turned off to avoid any risk of electrical shock. Verify that you have all the components necessary for the task, such as the control unit, power source, and the fixture you will connect. Familiarize yourself with the device’s manual to understand its terminal connections and settings.
Next, identify the terminals on the device. Typically, you’ll encounter three terminals: one for the live wire (L), one for the neutral wire (N), and one for the ground (G). Carefully check the manufacturer’s instructions for confirmation on the specific functions of each terminal to avoid incorrect connections.
Begin by connecting the live wire to the designated terminal. It’s crucial that the live wire is connected to the right terminal, as improper connections may cause the device not to function. Secure the wire firmly to ensure a stable connection.
Once the live wire is attached, proceed with the neutral wire. This wire should be connected to the neutral terminal on the device. Again, ensure the connection is tight to avoid any loose contacts, which could lead to malfunction.
Next, connect the ground wire. This step is important for safety, as grounding provides a path for excess electricity in case of a short circuit. Make sure the ground terminal is connected to the earth wire securely.
After all wires are connected, double-check the wiring. Any loose or incorrect connections should be corrected before powering the system back on. This will help prevent any issues with the device’s functionality once it’s switched on.
Turn the power back on and test the device by triggering it with movement. Adjust the sensitivity and delay settings as necessary. Many devices allow you to control how sensitive the motion detection is, as well as how long the light stays on once triggered.
If the device doesn’t activate as expected, recheck the connections and settings. Sometimes, the issue could be as simple as a loose wire or an incorrect configuration in the settings. Follow troubleshooting steps from the manufacturer’s guide to ensure everything works correctly.
How to Connect Motion Sensor Lights to a Power Source
First, ensure that the power is off before beginning any installation. Locate the main power line where you will connect the fixture. The power source should have two primary terminals, one for the live wire and one for the neutral wire. These terminals are crucial for establishing a secure connection to the power supply.
To begin, connect the live wire from the power source to the corresponding terminal on the fixture. It’s important to securely fasten this wire to prevent any loose connections, which could lead to malfunctions or electrical issues.
Next, attach the neutral wire from the power source to the neutral terminal on the fixture. This will complete the connection for the electrical current to flow properly. Double-check the connections to ensure there are no exposed wires that could cause short circuits.
Finally, connect the ground wire if available. This step provides safety in case of any electrical fault. Once everything is properly connected, turn the power back on and test the fixture to ensure it’s working as expected. Adjust settings as needed for optimal functionality.
