Ensure the main power is turned off at the breaker panel before handling any conductors to prevent electrical hazards and accidental shorts.
Identify the load, line, and ground terminals on the dimmer module carefully; proper identification avoids operational failures and overheating.
Use correctly rated conductors for the amperage of your circuit, typically 14 AWG for 15A circuits and 12 AWG for 20A circuits, ensuring safe current flow and compliance with standards.
Connect the line conductor to the black terminal and the load conductor to the red terminal, securing connections with firm terminal screws to maintain consistent contact and prevent arcing.
Attach the green or bare conductor to the grounding terminal and verify that the connection is secure to ensure proper grounding and reduce risk of shocks.
After completing connections, restore power and test the dimmer by toggling through all brightness levels, checking for smooth operation and absence of flickering or noise.
Label each conductor using color-coded tags if multiple dimmers are installed to simplify future maintenance and reduce confusion during replacements or troubleshooting.
Lutron Switch Connection Guide
Turn off the circuit at the main panel before handling any conductors to prevent shocks. Confirm with a non-contact voltage tester that no current is present at the terminals.

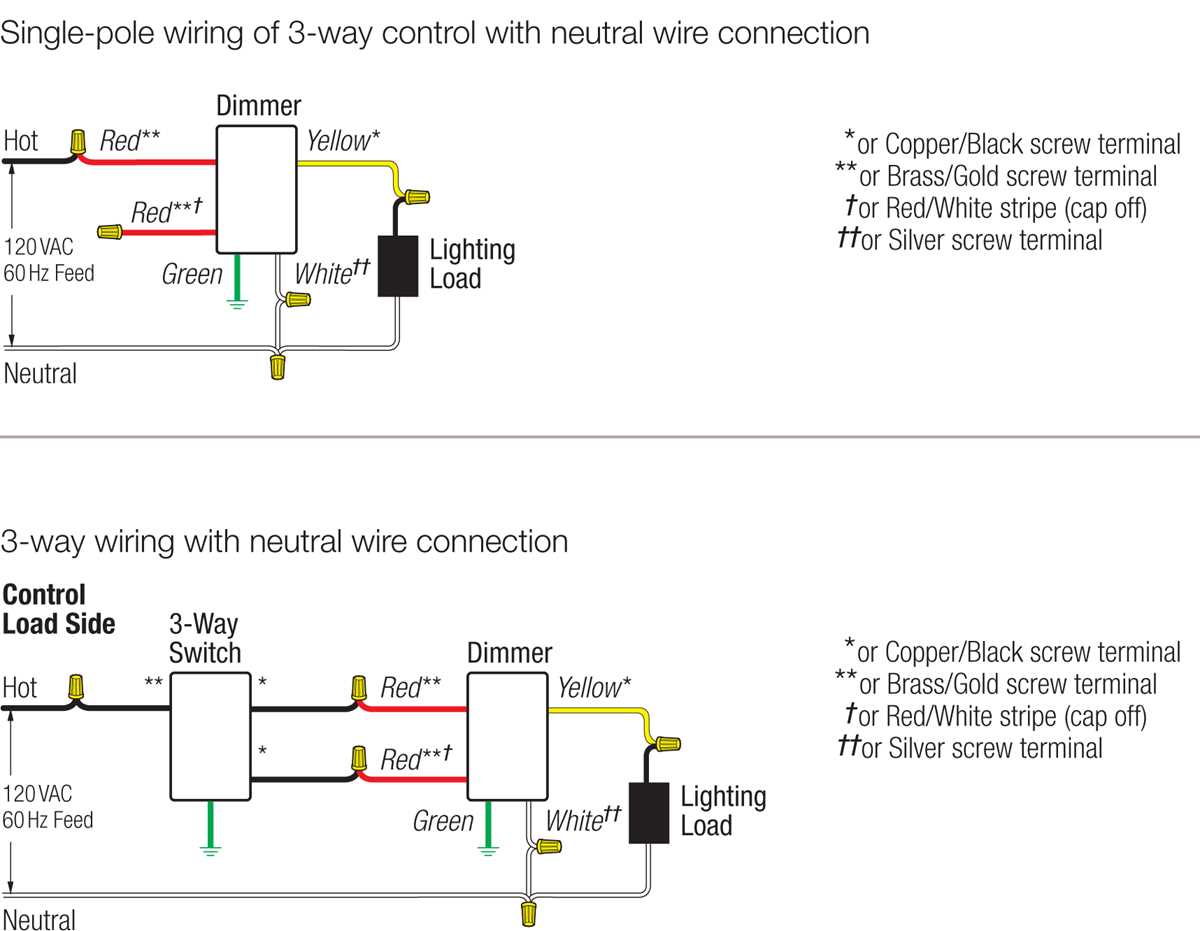

Identify the line, load, and neutral terminals on the control device. Connect the incoming power conductor to the line terminal, the outgoing conductor to the load terminal, and ensure the neutral wire is securely attached to the white terminal for proper operation.
Secure the ground conductor to the green or bare terminal and fasten all screws tightly. Restore power and verify the device functions smoothly across all settings without flickering or unusual noises, confirming correct connections.
Identifying Terminals and Conductor Functions

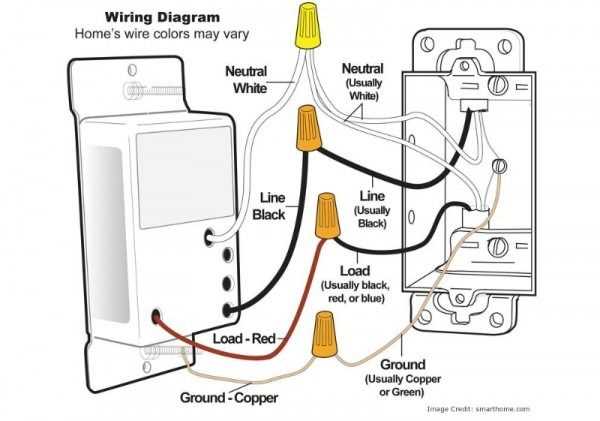

Locate the line and load terminals by examining the markings on the device. The line terminal receives incoming power, while the load terminal delivers current to the connected lighting or fixture. Use a voltage tester to confirm live and outgoing connections before making any attachments.
Check the neutral terminal carefully to ensure the white conductor is correctly inserted. This connection completes the circuit and allows the device to operate properly without tripping or malfunctioning.
Grounding is critical. Attach the bare or green conductor to the ground terminal, verifying that the metal mounting bracket also maintains contact with the grounding system for safety and compliance with electrical codes.
Label each conductor after identification. Marking line, load, neutral, and ground wires prevents confusion during installation and simplifies future maintenance or troubleshooting, reducing the risk of reversed connections or shorts.
