To achieve optimal audio performance, understanding how to connect the components in an audio system is crucial. Each element must be wired correctly for clear sound reproduction, and errors in connections can lead to signal loss or distortion. Ensure that the speaker terminals, amplifier outputs, and connecting cables are appropriately configured to avoid common issues.
When assembling the system, consider the type of components you’re using. For instance, the power rating of the amplifier must align with the impedance of the connected speaker for maximum efficiency. If the connections are not matched, you might face inefficient power usage or even damage to the equipment. Checking the specifications of each part is the first step in ensuring compatibility.
Moreover, properly securing the connections to prevent loose contacts is critical. Loose or weak connections may cause poor signal flow, leading to audio drops or distorted sounds. Always make sure to check the integrity of the setup before powering on the system. Keeping the components free from dust and moisture will also help maintain long-term performance and reduce the risk of malfunctions.
Loudspeaker Circuit Design and Connection Guide
To begin the setup, focus on the power source. The first step in assembling an audio system is ensuring that the amplifier can provide sufficient power for the speaker. Check the amplifier’s output power and match it with the speaker’s input rating. Connecting a high-power amplifier to a low-power speaker can cause significant damage, while a low-power amplifier to a high-power speaker results in poor performance and wasted energy.
The next step is selecting the proper type of cable. Use thick, high-quality cables for longer distances to prevent signal loss and degradation. For short distances, a thinner gauge cable will suffice, but ensure it can handle the power output without overheating. Standard speaker wire usually has a red and black polarity system; red is positive, and black is negative. Always confirm the polarity of the connections to maintain proper sound balance.
For the best sound quality, avoid excessive cable lengths. Long cables tend to lose some of the audio signal due to resistance. Ideally, cables should not exceed 10 feet, unless using a high-quality, low-resistance cable. Longer distances should be managed carefully to ensure the least amount of signal degradation.
Connect the positive terminal of the speaker to the positive output of the amplifier and the negative terminal of the speaker to the negative output of the amplifier. This ensures the sound waves are properly synced. If the connections are reversed, the sound output will be inverted, and the audio experience will be disoriented.
Additionally, use connectors like banana plugs or spade terminals to secure the cables to the speaker and amplifier. These connectors prevent loose connections and provide a solid, reliable contact, ensuring consistent audio performance. Soldering the wire directly to the terminals can also be an effective solution but requires precision to avoid shorts or poor connections.
If you are connecting multiple speakers, ensure that you use a series or parallel setup that matches the total impedance rating of the amplifier. Connecting speakers in series increases impedance, which may reduce the power output, while parallel connections lower impedance and may stress the amplifier. Choose the configuration based on your system’s needs and the specifications of your equipment.
Always double-check the connections before turning on the system. A simple mistake in wiring can cause performance issues or, worse, damage to your components. Use a multimeter to verify that all connections are secure and there are no shorts or open circuits that could result in problems later.
Finally, consider using an in-line fuse for added protection. A fuse will cut off the power to the system if the current exceeds safe levels, preventing potential damage to the components. It is an inexpensive way to add safety to your setup, especially when working with high-power amplifiers and speakers.
Understanding the Components of a Loudspeaker Circuit
The first key component to understand is the voice coil. This is a crucial part of the design, as it converts electrical signals into mechanical motion. When current passes through the coil, it interacts with the magnetic field, causing the diaphragm to move and produce sound. The voice coil’s resistance and impedance determine the amount of current it can safely handle without causing damage.
The magnet is another essential element in this system. It creates the magnetic field in which the voice coil operates. Typically, permanent magnets are used, but some high-end designs may incorporate electromagnets. The strength of the magnet directly influences the speaker’s efficiency, affecting how well it converts electrical energy into sound energy.
The diaphragm, also known as the cone, is responsible for the actual production of sound. It is attached to the voice coil and moves in response to the electrical signals passed through the coil. The diaphragm’s material and shape impact the quality of sound produced, with materials like paper, plastic, or metal providing different tonal qualities.
Another important part of the design is the suspension. This system includes both the spider and the surround. The spider holds the voice coil in place while allowing it to move, while the surround, typically made of rubber or foam, cushions the diaphragm’s movement and helps control its excursion. The suspension ensures that the cone can move freely without distortion, maintaining sound clarity.

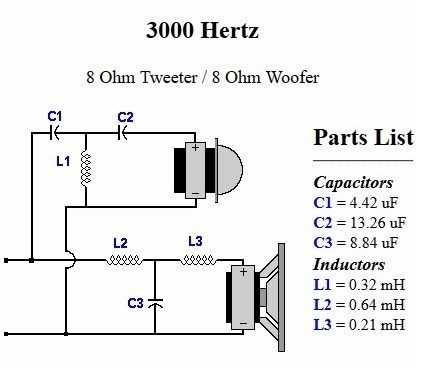

Capacitors and inductors are often used in the crossover network of a speaker. These components are critical for filtering signals, ensuring that high frequencies reach the tweeter and low frequencies reach the woofer. Without them, the speaker may not function properly, with all frequencies being sent to both drivers, leading to distortion and inefficiency.
The enclosure plays a role in how sound is projected from the speaker. The size, material, and design of the box influence the frequency response, the level of resonance, and how the sound waves interact with the environment. A sealed box offers tighter bass, while a ported box enhances low-end output but may be less accurate.
The input terminals provide the necessary connection points for the speaker wire, which carries the electrical signal from the amplifier. These terminals must be properly installed and securely connected to ensure a stable flow of current. Loose or poorly connected terminals can lead to signal loss or even damage to the equipment.
Finally, the wiring and soldering work required to connect all these components must be done with precision. Properly choosing the correct gauge wire and securely soldering connections can prevent signal loss, reduce impedance mismatches, and improve the overall efficiency of the speaker system.
