Connect the live wire directly to the switch terminal to control multiple fixtures from one location. Use 14 AWG copper conductors rated for 230 V AC and secure all connections with proper screw torque.
Run neutral conductors individually to each fixture to maintain consistent operation and prevent flickering. Keep wire lengths under 10 meters when possible to reduce voltage drop.
Install a grounding conductor to all metal enclosures using green or bare wires. Fasten with screws to ensure protection against electric shock during maintenance or accidental contact.
Use insulated connectors or terminal blocks at junction points to maintain secure connections and prevent shorts. Label each conductor to distinguish between different switch lines and fixture lines.
Test each branch before final installation using a multimeter or low-voltage source. Confirm that all fixtures operate independently without interference, overheating, or unexpected tripping of breakers.

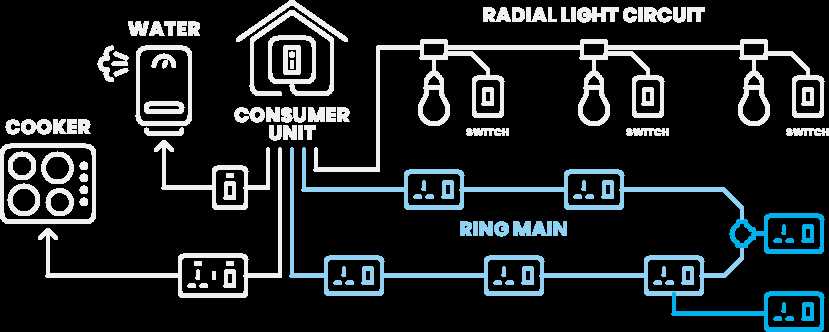

Light Circuit Blueprint UK
Install a 3-amp fuse on every secondary branch supplying ceiling fittings to prevent overloads. UK standards require protective devices on each loop to avoid fire hazards.
For a typical two-room setup, run twin and earth cable from the consumer unit to each lamp point. Maintain a 400 mm spacing from joists to prevent insulation compression.

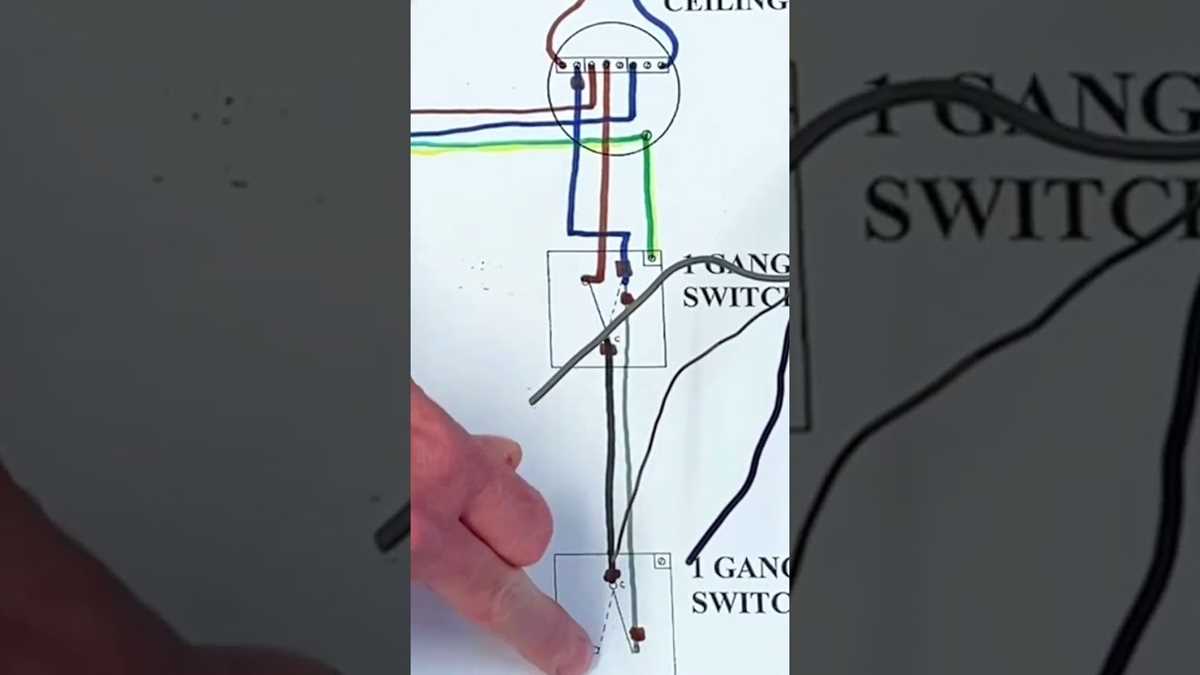

Use one switch per luminaire for single control or consider two-way switches for corridors and staircases:
- Two-way control requires travelers linking both switch terminals.
- Ensure copper connections are sleeved according to BS 7671.
- Mark switch terminals to avoid miswiring during installation.
Ceiling-mounted fittings in wet areas must be rated at IP44 or higher. Position them at least 600 mm from shower heads and baths.
When connecting pendant fittings, measure cord length accurately. Excess cable should be coiled neatly above the ceiling rose to allow future adjustments without disturbing plasterwork.
Energy-saving fixtures can be wired on a separate ring to facilitate future upgrades. Track current draw to ensure it does not exceed 80% of the protective device rating.
Label every junction box with the source and destination points. Use coloured cable ties or permanent markers to avoid confusion during maintenance or expansion of the installation.
Connecting Multiple Fixtures to a Single Switch
Run a 2.5 mm² twin and earth cable from the distribution board to the switch, then branch out to each fitting in a daisy-chain layout. Ensure each junction is secured in an accessible enclosure and all terminals are tightened to 2.5 Nm torque. For longer runs over 20 metres, increase conductor size to 4 mm² to maintain voltage within ±3%.
Use fused spurs for high-wattage units to prevent overloading. Mark all loops with numbered tags to indicate the order of connection. When controlling several fittings from one toggle, verify total amperage does not exceed 6 A per switch to comply with BS 7671, and always connect the neutral continuously between devices rather than switching it.
