Step by Step Guide to Connect a Light Bulb with Correct Terminals and Cables

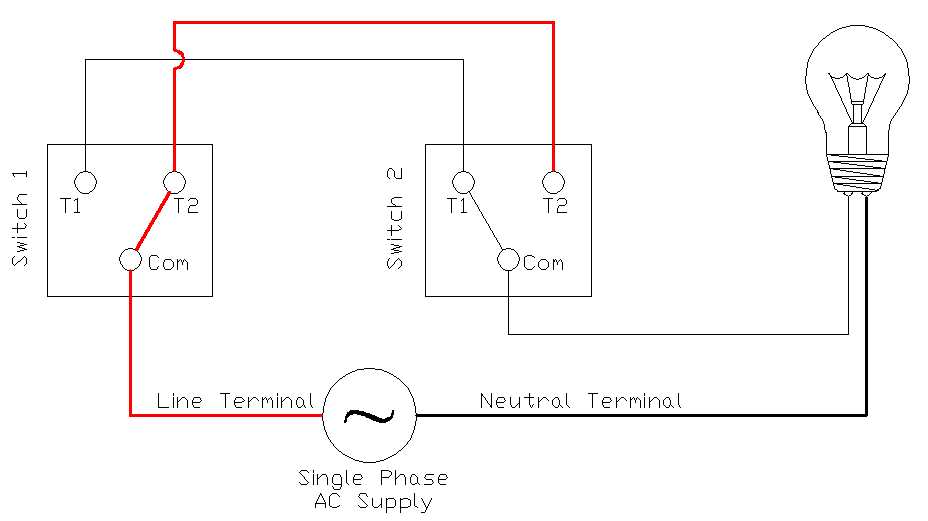

light bulb wiring diagram

Ensure all terminals are matched with the corresponding leads to prevent short circuits and maintain consistent energy flow. Use insulated conductors rated for 120V or 240V depending on your setup.

Position the socket firmly within its mount to avoid loose contacts that could cause sparking. Verify that the holder’s screws securely clamp each conductor without damaging the insulation.

Route the cables along designated paths to minimize crossing or pinching. Avoid tight bends that increase resistance or create hotspots, especially near junction boxes or connectors.

Test each connection with a multimeter before inserting the illumination element. Confirm continuity between the input terminals and fixture contacts, and check for unexpected resistance that could indicate a poor connection.

Step by Step Guide to Connect a Lamp with Correct Terminals and Cables

light bulb wiring diagram

Identify the positive and negative terminals on the fixture and match them with the corresponding conductor colors. Use copper cables rated at 15A for standard 120V circuits and ensure insulation is intact. Secure each conductor under the terminal screw without stripping more than 10mm of insulation to prevent accidental contact.

Follow a sequential connection method:

  • Attach the live conductor to the brass-colored terminal first.
  • Connect the neutral lead to the silver-colored terminal.
  • Route the ground wire to the green screw or grounding point.

After tightening all connections, gently tug each cable to confirm secure contact. Finally, test with a voltage meter before inserting the filament assembly to ensure continuity and correct polarity, avoiding short circuits or erratic operation.

Selecting Appropriate Holders and Conductors

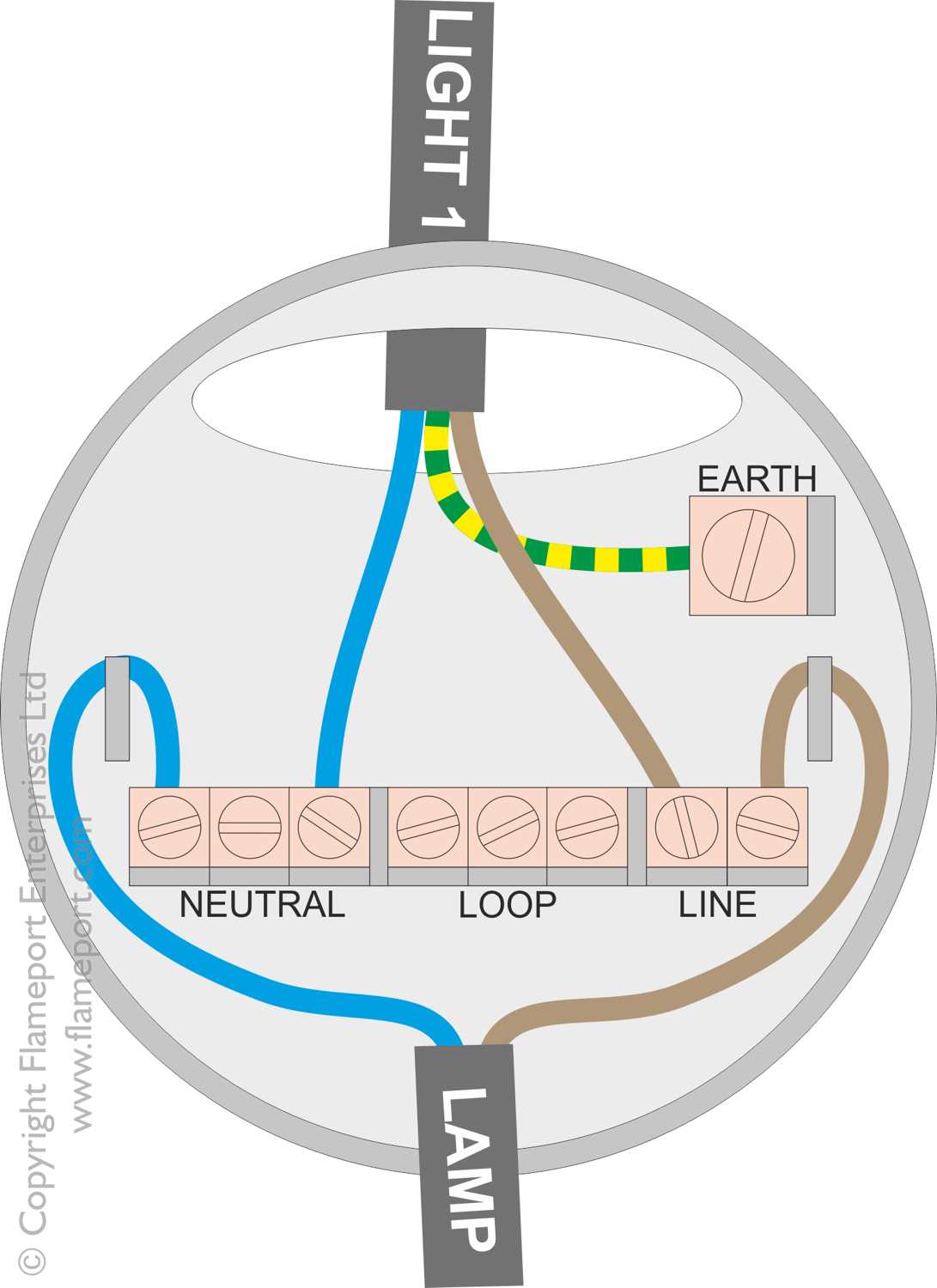

light bulb wiring diagram

Choose holders that match the voltage and socket type of your fixture. Ceramic bases are recommended for high-heat applications, while thermoplastic options suit standard low-watt setups. Ensure the holder’s terminals accommodate the conductor size without requiring excessive force.

Determine conductor gauge based on current load. Use 16 AWG copper for circuits up to 10A and 14 AWG for loads up to 15A. Avoid aluminum cables in small fixtures, as they increase resistance and heat buildup.

Inspect insulation quality and flexibility before installation. Conductors should have at least 600V rating and maintain pliability in colder environments to prevent cracking. Pre-stripping exactly 8–10mm ensures secure contact without exposing excess metal.

Secure holders in a stable position to prevent mechanical stress on terminals. Route conductors with minimal bends, keeping distance from sharp edges or metal parts. This reduces the risk of short circuits and maintains consistent electrical flow throughout the fixture.
