Step by Step Guide for Connecting a Vehicle License Plate Light

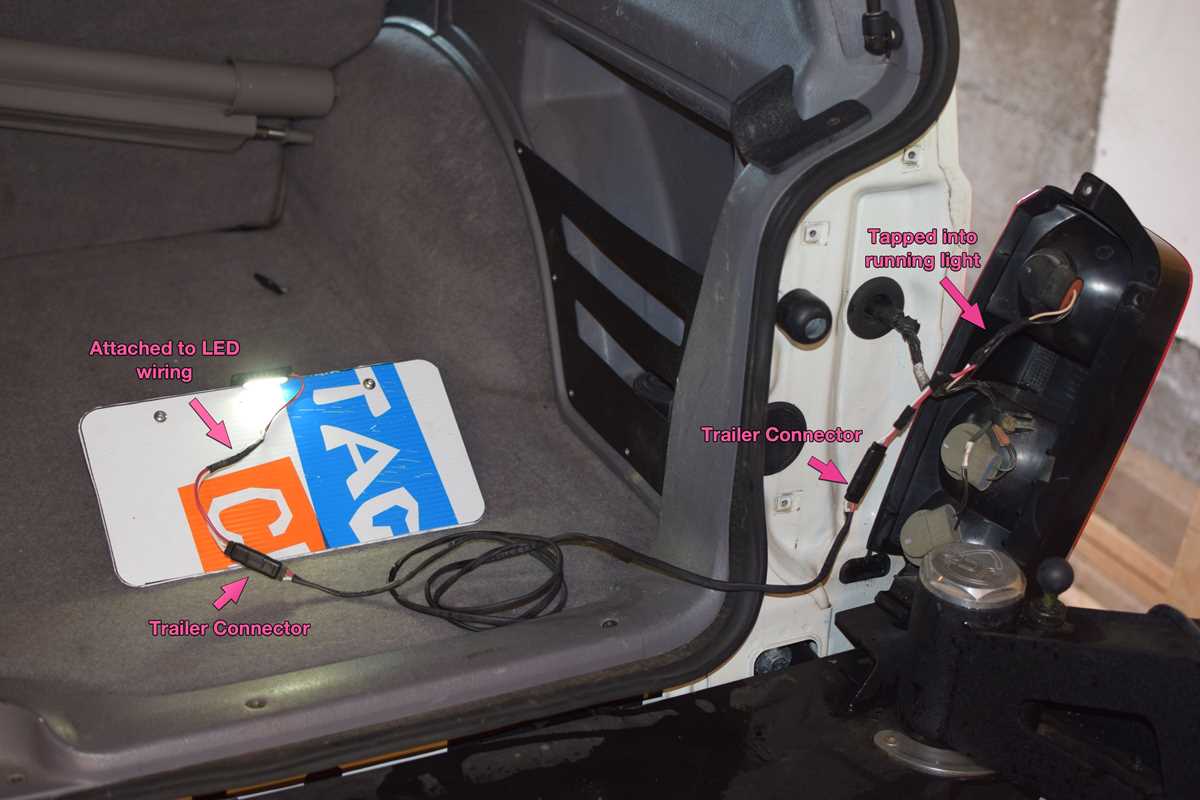

license plate light wiring diagram

Connect the power lead directly to a switched 12-volt source to ensure the lamp operates only when the vehicle ignition is on. Use an inline fuse rated slightly above the bulb’s current to protect against shorts.

Attach the ground wire securely to a clean metal surface on the chassis. Remove paint or corrosion at the contact point and tighten the connection completely to prevent flickering or voltage loss.

Use proper gauge conductors to handle the current draw without overheating. For standard lamps, 18 AWG is typically sufficient, while LED assemblies may require 20 AWG or thinner cables.

Route cables along existing harnesses and secure them with clips or zip ties. Avoid sharp bends, proximity to exhaust components, or moving parts to prevent damage to insulation over time.

Verify the circuit before full operation by testing voltage at the terminals. Check that the lamp illuminates evenly and that the protective fuse operates correctly under load.

Step by Step Guide for Connecting a Vehicle Identification Illumination

Connect the positive conductor to a switched 12-volt source to ensure the lamp activates only when the vehicle ignition is on. Install an inline fuse rated slightly above the bulb’s maximum current to protect the circuit from shorts or overloads.

Attach the negative lead to a clean metal surface on the chassis for a stable ground. Scrape away paint and corrosion before securing the connection tightly to prevent flickering and maintain consistent illumination.

Route the cables along existing harnesses and secure them using zip ties or clips. Avoid areas near hot exhaust components or moving parts to prevent insulation damage and maintain long-term reliability.

Install the lamp housing firmly in the designated bracket. Ensure the bulb is seated properly and the lens is aligned to evenly illuminate the rear identifier plate without shadows or misalignment.

Test the installation before final assembly by applying power and verifying that the lamp illuminates correctly. Check the fuse and connections for voltage drops and adjust as needed to guarantee safe and consistent operation.

Identifying Power and Ground Connections for the Rear Vehicle Lamp

Locate the positive terminal on the rear lighting assembly by tracing the main feed from the vehicle’s ignition-switched source. Confirm voltage with a multimeter before connecting any conductor.

Secure the negative lead to a bare metal chassis point for a reliable return path. Clean the surface to remove paint, rust, or debris and tighten the fastener to avoid intermittent contact.

Use color coding to prevent confusion when working with multiple circuits. Typically, red indicates the power feed and black designates the ground return. Label the wires if necessary for future maintenance.

Measure continuity along the chassis to ensure the grounding point has minimal resistance. A reading above 1 ohm may indicate poor contact, requiring relocation or additional grounding hardware.

Protect the circuit using a fuse rated slightly above the current draw of the rear lamp. Place the fuse as close to the power source as possible to safeguard the cable and lamp against short circuits.

Double-check all connections before final assembly. Apply power and observe the lamp’s operation, ensuring consistent brightness and stable performance without flickering or voltage drops.
