Check the main power source before connecting any lamps. Verify that the 12-volt supply reaches the connector and that fuses are intact to prevent blown circuits.
Identify each colored lead for tail, brake, and turn signals. Red usually carries brake power, brown handles running lights, yellow and green control left and right indicators respectively. Confirm continuity with a multimeter before installation.
Inspect all connectors for corrosion or bent pins. Moisture can cause oxidization, leading to flickering or non-functioning lamps. Clean or replace terminals as needed to maintain stable operation.
Test each circuit individually by applying voltage to confirm proper function of the lamp modules. Observe response time and brightness to detect weak or faulty components, ensuring safe signaling during use.

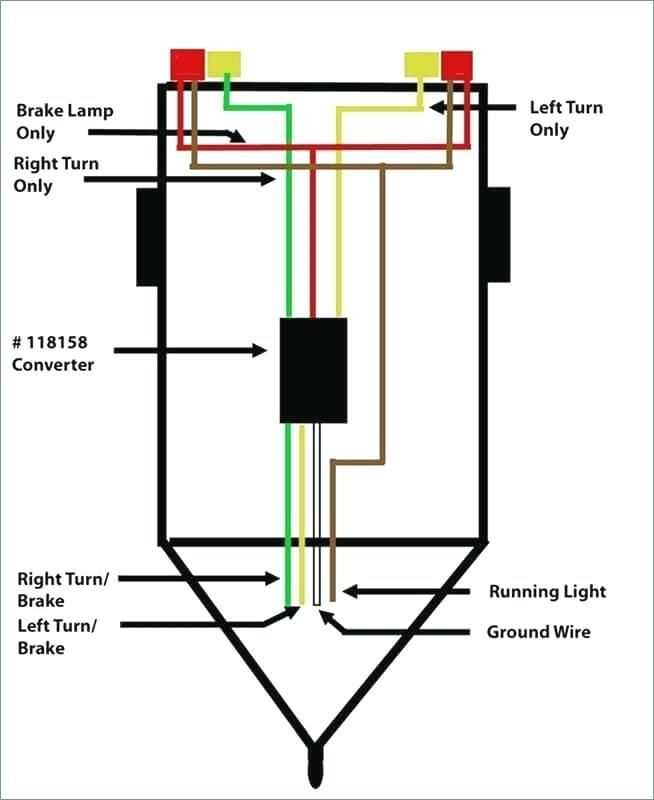

LED Trailer Light Connection Guide
Start by identifying the main connector that supplies power to all signal and brake lamps. Ensure the 12-volt feed reaches each pin and that the ground connection is secure to prevent flickering or failure.
Label each circuit wire according to its function. Common color codes include brown for running lights, red for brake signals, yellow for left turn, and green for right turn. Use a multimeter to verify continuity before attaching any modules.
Check lamp modules individually after connecting the harness. Apply voltage to each socket and observe brightness and response time. Replace any units that show dimming or delayed activation to maintain consistent signaling.
Identifying Lamps and Connector Types
Inspect each lamp module for voltage rating and pin configuration. Most signal units operate at 12 volts, and their sockets can be round, flat, or multi-pin. Confirm that each module matches the circuit it will attach to before installation.
Check connector shapes to ensure compatibility. Common styles include two-pin for running lights, three-pin for combined brake and turn functions, and four-pin for integrated multi-function assemblies. Mismatched connectors can cause intermittent contact or failure.
Measure continuity on each terminal using a multimeter. A reading of near-zero ohms indicates a solid connection, while higher resistance may signal corrosion or damaged leads that need cleaning or replacement.
Document module locations and their corresponding connectors. Labeling prevents incorrect connections when reinstalling or performing maintenance, especially for complex assemblies with multiple functions like brake, turn, and marker lights.
Inspect insulation and seals on all plugs and sockets. Rubber gaskets or heat-shrink tubing protect against moisture and dirt intrusion. Replace damaged seals to prevent short circuits and maintain reliable operation in wet or dusty conditions.
