Step by Step Guide to Constructing a Led Diode Circuit with Resistors and Connections

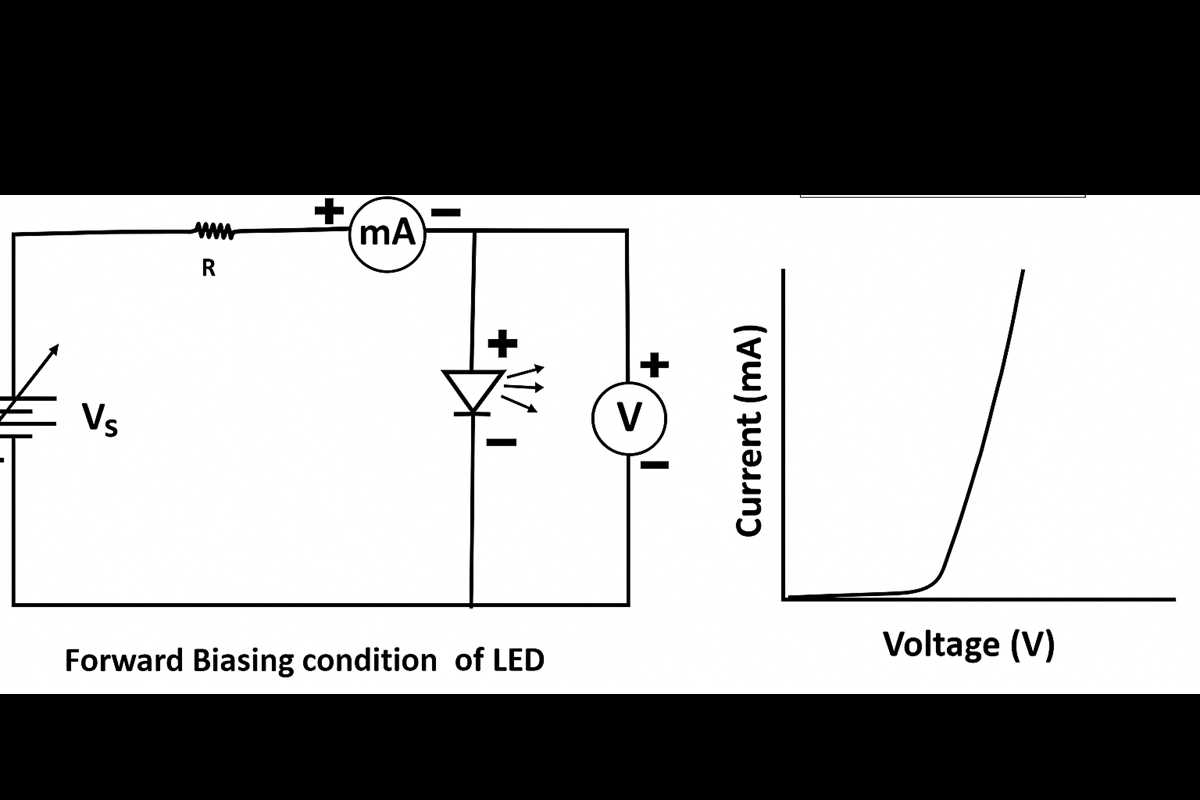

led diode circuit diagram

Connect the positive lead from the power source to a current-limiting resistor before attaching it to the illumination device. This prevents excessive current from burning out the component. Choose a resistor value based on the supply voltage and forward voltage rating of the element.

Ensure the polarity is correct: the anode side receives the positive supply, while the cathode connects to ground. Reversing connections can prevent the device from lighting and may cause damage in some types.

Mount the component on a breadboard or solder it onto a perf board using short, tidy leads. Minimize lead length to reduce voltage drop and avoid unwanted resistance affecting brightness.

Test the assembly with a multimeter to confirm voltage and current before full operation. Measure across the resistor to ensure it limits current to safe levels. Replace any connector showing signs of corrosion or loose contact.

Led Diode Circuit Construction Guide

Connect the positive lead from the power supply to a current-limiting resistor sized according to the voltage and forward drop of the component. This prevents overheating and ensures stable brightness during operation.

Verify the polarity before installation: the anode side must face the positive source, and the cathode should return to ground. Incorrect orientation will block current and may damage sensitive components.

Use short, neat connections when mounting on a breadboard or perf board. Minimize lead length to reduce resistance and voltage drop, which helps maintain consistent illumination across the assembly.

Test the assembly with a multimeter to confirm current flow and voltage across the resistor. Check for loose contacts and replace any corroded connectors to maintain reliable operation over time.

Power Source Selection and Resistor Calculation

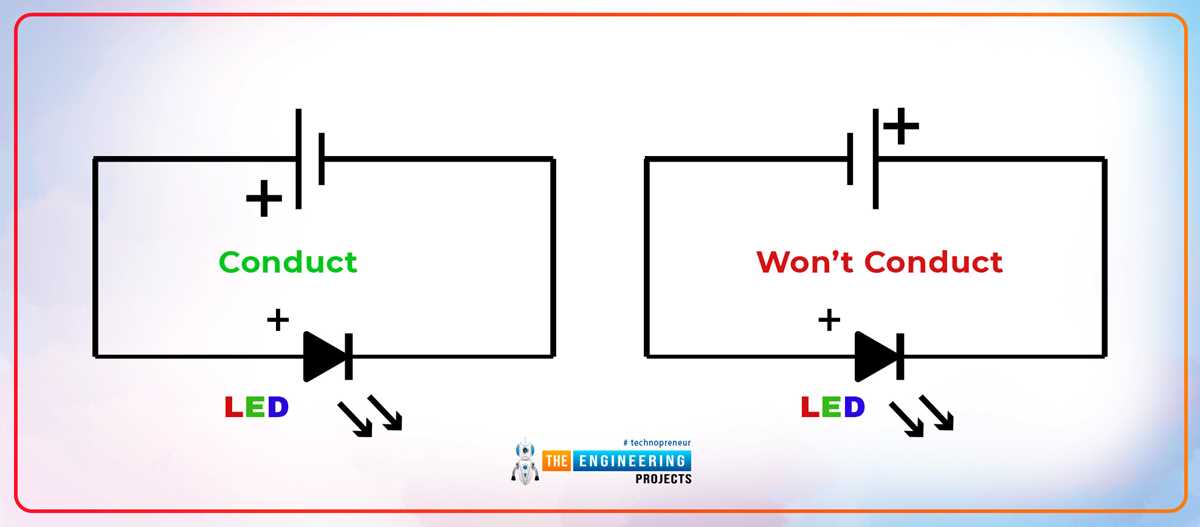

led diode circuit diagram

Select a supply voltage that matches the forward voltage rating of the illumination component while allowing a small margin for safe operation. Exceeding the rated voltage can cause overheating and shorten the lifespan of the device. Use stable, regulated sources to prevent fluctuations that may affect brightness.

Calculate the series resistor using the formula R = (Vs – Vf) / If, where Vs is the supply voltage, Vf is the forward voltage of the component, and If is the desired operating current.

  • Choose a resistor with at least 10% higher power rating than calculated
  • Verify connections with a multimeter to confirm expected current flow
  • Use precision resistors to maintain consistent illumination

Proper selection ensures safe operation and prevents damage to sensitive elements.
