If your appliance is malfunctioning, one of the first steps is to inspect its key internal elements. Knowing how each component works can help identify the issue quickly. Start by familiarizing yourself with the motor, pump, and belt system. These are the most common culprits when your unit fails to start or stops mid-cycle. Make sure to check for any visible signs of wear, such as fraying belts or damaged hoses. If you notice any of these, it’s time to replace them.

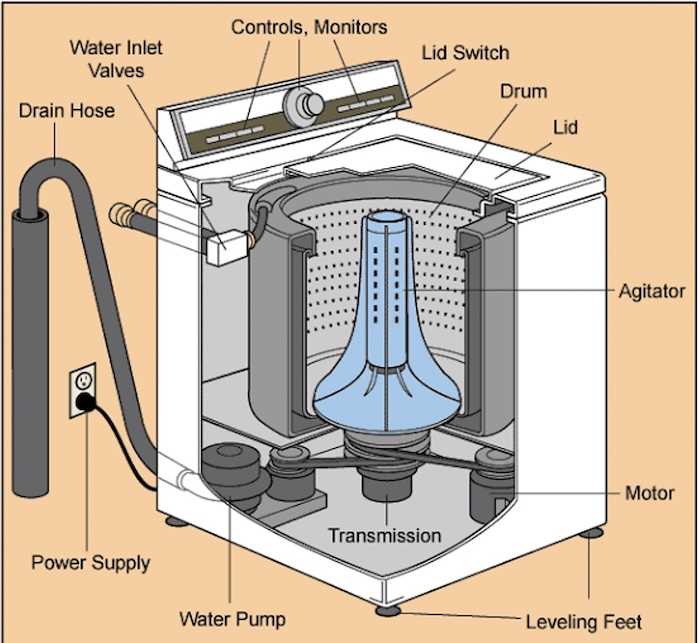

Before attempting any repairs, always refer to the user manual for guidance on how to access these components. Typically, a washer’s internal parts are arranged logically, with the motor and pump near the base. Remove the back panel to access them, and ensure you turn off the power and water supply to avoid any accidents. A detailed reference guide or exploded-view diagram can provide further clarity on the exact locations and orientations of each part.
Regular maintenance, such as cleaning the filter and inspecting the hoses for leaks, can extend the lifespan of your unit. If you’re unsure about the condition of a part, it’s better to replace it early rather than wait for a full breakdown. Familiarizing yourself with the different components and their functions can save both time and money when troubleshooting or making repairs.
Washer Components and Maintenance Guide
Understanding the key components of your appliance is critical for both troubleshooting and regular upkeep. The main parts that require attention are the motor, pump, hoses, and drive belt. Regular inspection and replacement of these components can prevent major issues.
Start by checking the motor, located at the base of the unit, for any unusual noises or signs of overheating. If the motor is malfunctioning, it’s likely the unit won’t run or will fail during a cycle. The pump should be inspected for blockages or leaks, as water drainage issues are often linked to a malfunctioning pump.
Inspect the hoses for wear and tear. Cracks or leaks can lead to water damage. Tighten any loose connections, and replace damaged hoses immediately to prevent further issues. Pay attention to the drive belt, which connects the motor to the drum. If the belt is loose or damaged, it will need to be replaced to ensure proper rotation of the drum.
Regularly cleaning the filters is another simple but effective way to keep the system running smoothly. A clogged filter can cause water drainage problems or even damage other components. Always refer to the user manual for specific instructions on cleaning or replacing components.
- Inspect motor for overheating and noises
- Check pump for blockages or leaks
- Examine hoses for cracks or leaks
- Ensure drive belt is tight and intact
- Clean or replace filters regularly
By performing these routine checks, you can significantly extend the lifespan of your unit and avoid costly repairs.
Identifying Common Components in the Washer
Start by locating the motor assembly, which is responsible for driving the drum. This component is typically situated at the bottom of the machine. Look for signs of wear or unusual sounds, which can indicate a malfunction.
The pump is another crucial part to check. It removes water from the unit during the rinse and spin cycles. Blockages or leaks in the pump can lead to drainage issues. Ensure the pump is clear of debris, and inspect the seals for wear.
Next, inspect the hoses for any visible cracks or leaks. These are responsible for transferring water to and from the drum. Leaky hoses can cause water damage and should be replaced immediately. Also, check the inlet valve that controls the water flow to the machine, ensuring it’s not clogged or damaged.
The drive belt connects the motor to the drum, facilitating its rotation. If the belt is loose, frayed, or damaged, it can prevent the drum from spinning properly. Tightening or replacing the belt will resolve this issue.
- Check motor for signs of wear or noise
- Inspect pump for blockages and leaks
- Examine hoses for cracks or leaks
- Ensure inlet valve is functioning properly
- Inspect and replace drive belt if needed
By identifying and addressing these common components, you can keep your appliance running smoothly and avoid more serious issues down the line.
How to Replace a Faulty Pump
Begin by unplugging the appliance and turning off the water supply. Disconnect the drain hose and the water inlet hoses to prevent any spillage during the process. Once the hoses are detached, place a towel or a container beneath the pump to catch any remaining water.
Next, locate the faulty pump. Typically, it is situated at the bottom of the machine, near the motor assembly. You may need to remove a few screws or bolts to access it. Once exposed, examine the pump for any signs of damage or clogging.
To remove the faulty pump, use a screwdriver to remove any securing screws. Carefully detach the pump from its housing, making sure to avoid damaging any surrounding components. If necessary, use pliers to loosen any clamps holding the pump in place.
Once removed, install the new pump by securing it in the same position as the old one. Reattach the hoses to their respective ports, ensuring that all connections are tight to prevent leaks. Secure the pump with screws or bolts, and double-check all connections before proceeding.
After the new pump is installed, reconnect the power and water supply. Run a test cycle to ensure the pump is functioning correctly and that there are no leaks.
- Unplug the appliance and disconnect hoses
- Locate the faulty pump and remove securing screws
- Detach the pump and install the new one in place
- Reattach hoses and secure the pump
- Test the machine for proper operation
By following these steps, you can successfully replace the faulty pump and restore the machine’s functionality.
Understanding the Wiring and Electrical Components
Before inspecting or replacing any electrical components, disconnect the power supply to avoid potential hazards. Begin by locating the control panel, where most wiring connections are housed. Inside, you’ll find the main wiring harness that connects the various electrical components.
The timer motor is one of the primary electrical components, responsible for controlling the cycle times. It connects to the main control board through a series of wires, often color-coded for easy identification. If the cycle times are incorrect, inspect the wiring leading to and from the timer motor for any visible damage or loose connections.
Next, locate the lid switch assembly, which prevents the appliance from operating while the lid is open. This switch is electrically connected to the main control board and acts as a safety feature. Check the continuity of the switch using a multimeter to ensure it’s functioning correctly. A faulty lid switch can lead to the appliance not starting or stopping mid-cycle.
Examine the water inlet valve wiring, which controls water flow into the drum. If water is not entering or draining correctly, check the valve’s electrical connections. Inspect for corrosion or wear that could cause faulty operation. If the wiring appears damaged, replacing the valve or rewiring the connection is necessary.
Finally, inspect the motor wiring for any signs of fraying or damage. The motor is a crucial component, and any electrical malfunction may cause the machine to fail to spin or agitate. Ensure that the motor connections are secure, and check for continuity using a multimeter.
After inspecting and addressing any issues, reassemble the components and test the machine by running a short cycle. Verify that all electrical components are functioning as expected, and look out for any unusual behavior, such as failure to start, incorrect cycle times, or lack of water flow.
