Understanding the assembly of your chainsaw is crucial for smooth operation and timely maintenance. The visual breakdown of its components offers an effective way to familiarize yourself with each part’s role. This guide provides clarity on the positioning and connection of key elements, ensuring that you can troubleshoot and replace any malfunctioning sections with ease.
Fuel System Overview: The fuel intake, pump, and filter are located in close proximity, ensuring smooth delivery to the engine. Knowing where each piece fits helps with quick diagnostics and repairs.
Engine Assembly: The power unit is composed of the cylinder, piston, and related components. Understanding how the cylinder fits into the engine block is crucial for recognizing wear or damage over time.
Lubrication Path: The oil system components, including the tank and pump, are located in a specific order to guarantee proper lubrication of moving parts. A visual guide ensures that users can effectively maintain or replace these parts without causing issues with the saw’s operation.
Safety Mechanisms: Safety is embedded in the design, with components like the brake and throttle interlocking to prevent unintended operation. This layout helps identify the most important parts that keep you safe while operating the equipment.
By focusing on specific regions of the machine’s framework, such as the engine assembly or the fuel delivery components, this schematic not only simplifies the maintenance process but also aids in swift troubleshooting when problems arise. Every segment is carefully designed for quick access, minimizing downtime and extending the life of your equipment.
Understanding the Key Components and Assembly of Your Chainsaw
Accurately identifying each piece of machinery is crucial for proper maintenance. Locate the engine assembly first, which includes the carburetor, ignition module, and the starter mechanism. Pay attention to the cylinder head for any signs of wear. Regular inspection ensures that airflow and combustion are optimal.
The fuel system consists of the fuel tank, fuel lines, and filter. Ensure that the fuel lines are secure, without cracks or kinks. The filter needs regular cleaning to avoid clogging and affecting performance.
Next, focus on the cutting mechanism. The guide bar and chain should be examined for damage or excessive wear. A worn chain can drastically reduce cutting efficiency, while a damaged guide bar can cause misalignment during operation. Check the sprocket and drive assembly for any unusual wear patterns as well.
The clutch and brake system is integral to safe operation. Ensure the clutch is free from debris and that the brake engages smoothly when required. Proper tensioning of the drive chain is necessary to prevent slippage during operation.
Inspect the air filter and cooling system. The air filter needs to be clean and free from debris, as it directly affects engine performance. The cooling fins on the cylinder head should not be obstructed, allowing for proper heat dissipation.
Lastly, always verify the condition of the handle, throttle trigger, and safety features. Loose or damaged controls could compromise safety during use. Regular checks will maintain safe and efficient operation over time.
How to Identify and Replace the Fuel System Components

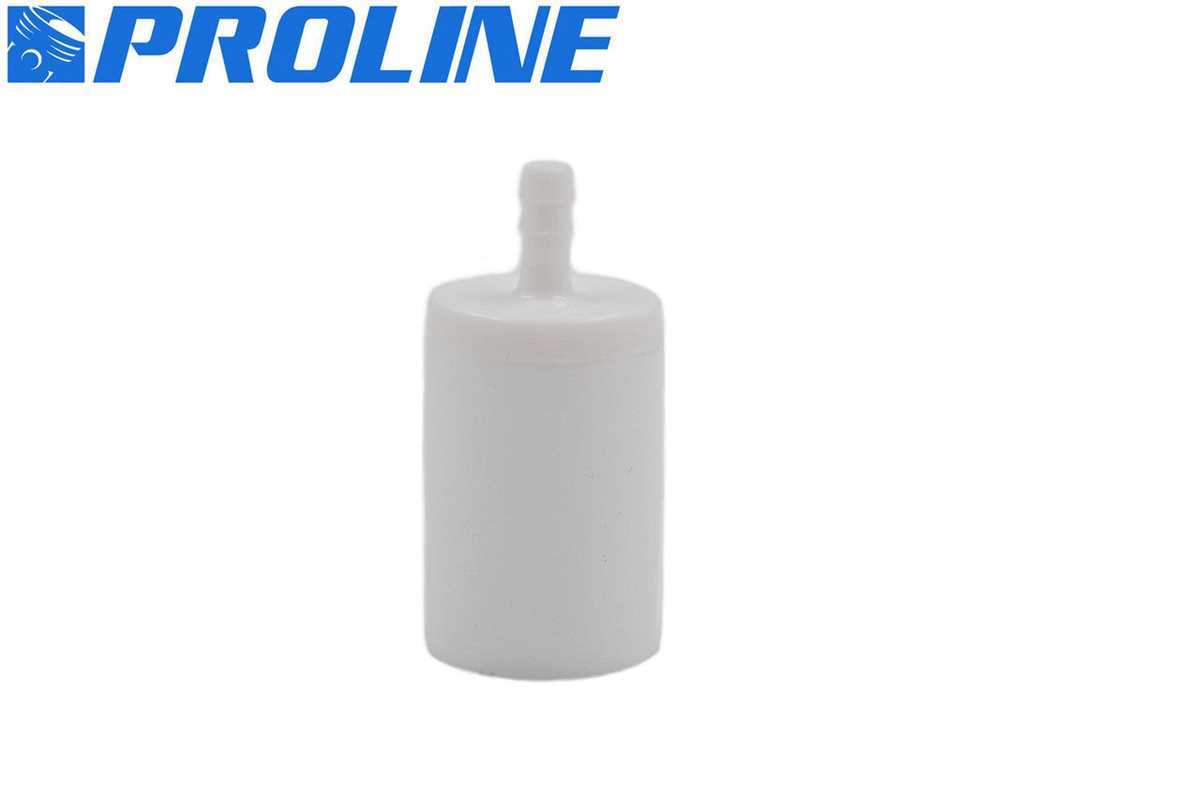

Check the fuel filter for clogs or damage. If the filter appears dirty or is cracked, replace it immediately. Use a filter that matches the engine’s specifications for proper fuel flow.
Inspect the fuel lines for any cracks, splits, or leaks. Replace any damaged hoses with new ones that are properly sized. Make sure the connections are tight to avoid fuel leakage.
If the fuel pump isn’t delivering fuel effectively or making unusual noises, it may need replacement. Remove the pump and inspect for blockages or wear. Replace the pump if necessary and ensure the inlet and outlet are unobstructed.
Clean the carburetor to remove any dirt or residue in the jets. If cleaning doesn’t fix performance issues, replace the carburetor with a compatible one. Be sure to check the gasket and seals for wear before reinstalling.
- Fuel filter: Replace if clogged or damaged.
- Fuel lines: Replace if cracked or leaking.
- Fuel pump: Replace if malfunctioning or producing abnormal noise.
- Carburetor: Clean or replace if clogged or damaged.
After replacing the components, check for leaks in the fuel system. Test the equipment to ensure the engine starts and runs smoothly, confirming that all parts are functioning correctly.
Step-by-Step Guide to Disassembling the Carburetor Assembly for Maintenance
1. Secure the engine and ensure it is powered off. Detach the spark plug to avoid accidental starts during the disassembly.
2. Locate the air filter cover and remove it. This will provide access to the carburetor. Use a screwdriver to unfasten any screws holding it in place.
3. Disconnect the fuel lines attached to the carburetor. You may need pliers to gently remove the clips securing the hoses. Be cautious of fuel spillage during this step.
4. Loosen and remove the screws securing the carburetor to the engine block. These screws are typically located at the base of the assembly. Keep them in a safe place for reassembly.
5. Gently lift the carburetor away from the engine. Take note of any gaskets or seals that may come off with it. Inspect these for damage and replace if necessary.
6. If the carburetor is equipped with a choke or throttle linkage, carefully detach these components. Document their positioning or take a photo to assist with reassembly.
7. Once the carburetor is free, examine it closely. Remove any visible dirt or debris using compressed air or a soft brush.
8. For more thorough cleaning, disassemble the carburetor by removing the screws or bolts holding the top and bottom halves together. Be mindful of small parts, such as jets or springs, that may fall out during this process.
9. Clean the internal components using carburetor cleaner. Spray the cleaner through all openings to remove carbon buildup. Use a soft brush or small wire to clean jets and passages.
10. After cleaning, inspect all components for wear. Replace any damaged or worn-out parts before reassembling the carburetor.
11. Reassemble the carburetor by reversing the disassembly steps. Ensure that all screws are tightened securely and that the throttle and choke linkages are correctly reattached.
12. Once reassembled, reconnect the fuel lines and reattach the air filter cover. Double-check that all connections are tight and secure.
13. Reinstall the spark plug and test the engine to ensure the carburetor is functioning correctly.
Understanding the Chain Brake Mechanism and Its Components
The chain brake on a chainsaw is a crucial safety feature that prevents the chain from continuing to move when a kickback occurs. The system consists of several key elements working together to activate and halt the chain quickly, minimizing the risk of injury. Here is a breakdown of its core components:
Brake Band: The brake band is a flexible metal band that wraps around the clutch drum. It’s the primary element in stopping the chain. When engaged, it tightens around the drum, halting its rotation almost instantly.
Brake Lever: Located on the top of the housing, the brake lever is the mechanism that the user activates. By pushing the lever forward, the brake band is engaged, ensuring the safety function is triggered in case of sudden movements or kickback.
Activation Spring: This spring is responsible for the tension that keeps the brake engaged when it’s not being actively used. It allows for automatic release when the brake lever is released, ensuring smooth operation of the saw once the danger has passed.
Brake Shoe: The brake shoe is a friction surface attached to the brake band. This component plays a significant role in absorbing the energy generated when the brake is applied, ensuring smooth deceleration of the chain.

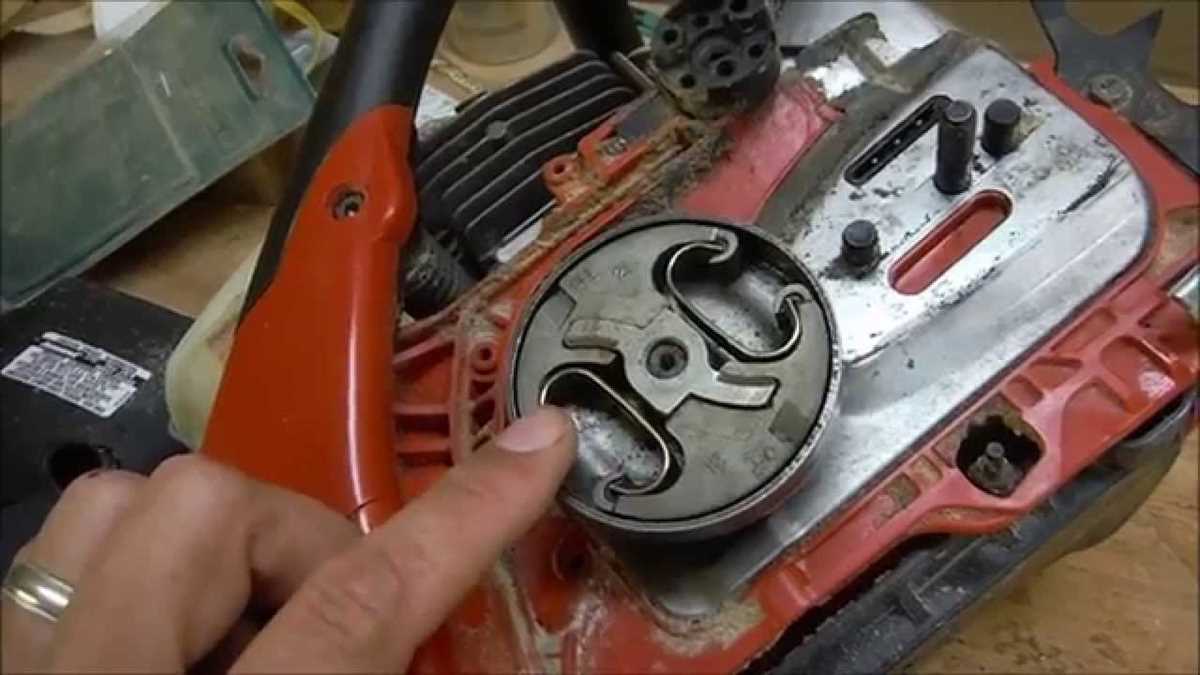

Clutch Drum: The clutch drum is directly connected to the engine and is responsible for transferring power to the chain. The brake band wraps around it, and when the brake is activated, the friction between the brake shoe and clutch drum stops the chain from moving.
Ensuring the chain brake is functioning properly is a safety priority. Regular checks for wear and tear on the brake components, especially the brake band and lever, are recommended to maintain the integrity of the mechanism. Replacing any worn-out parts with original replacements guarantees optimal performance.
